Round conductor, galvanised steel with PVC jacketing

Item no. 5021162 | EAN 4012195381730

5021162 / RD 10-PVC
10 mm
50
75
78 mm²
Steel
Product description

Product description

• Can be used as an earthing conductor
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• Zinc coating: ≥ 350 g/m² (approx. 50 µm in mean value)
• With PVC jacketing
  • Lightning current-tested
Technical data

Technical data

Colour Black
Cross-section 78 mm²
Diameter 10 mm
Dimension 10mm

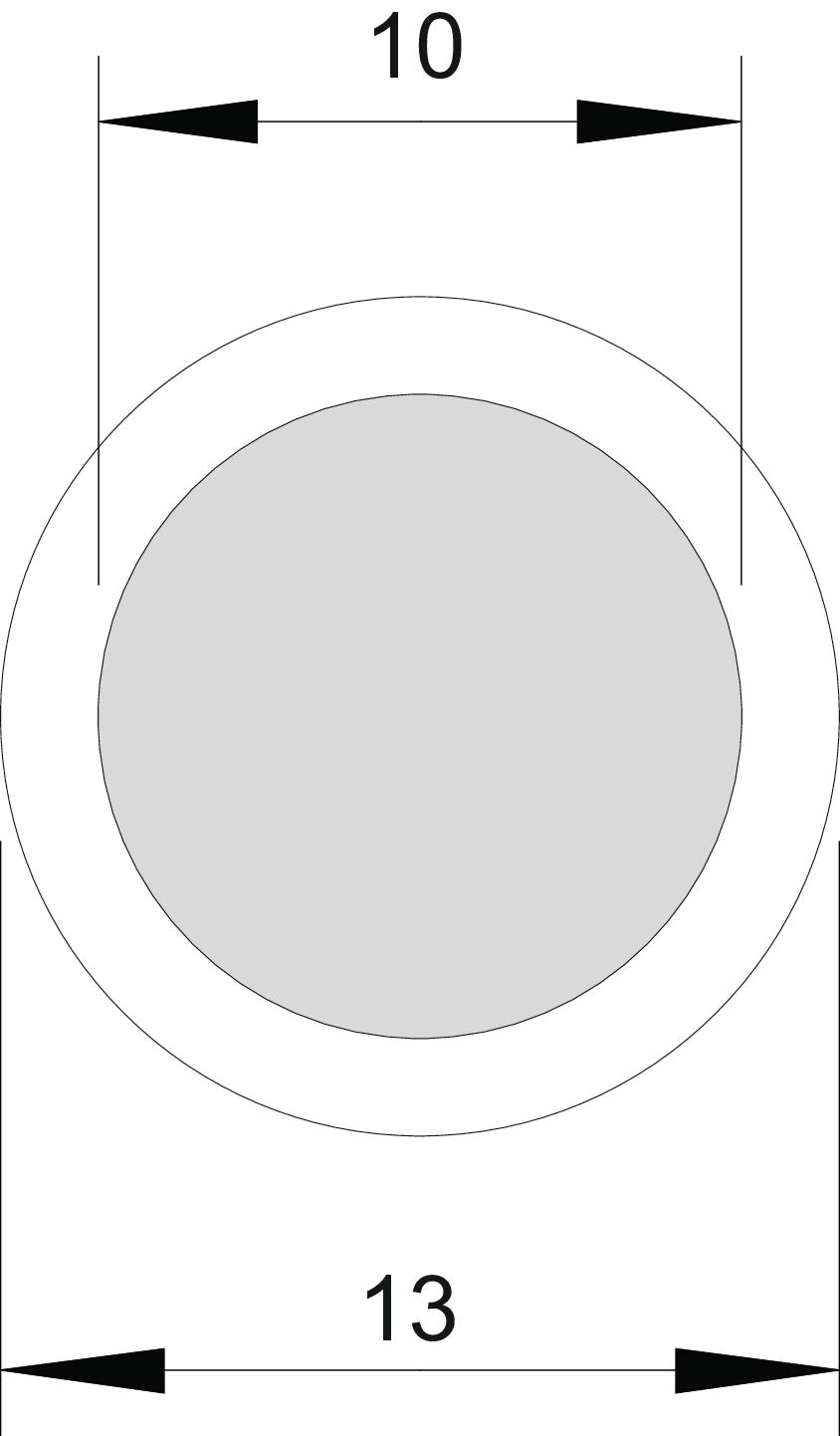

Dimension D 13 mm
Dimension d 10 mm
High voltage-resistant, insulated version no
Length tolerance ± 5 %
Material Steel
Material jacket PVC
Material property Miscellaneous
Nomal ring (approx. m) 75
Normal ring (ca. kg) 50
Number of individual wires 1
Surface Hot-dip galvanised
All types

All types

Types Diameter Normal ring (ca. kg) Nomal ring (approx. m) Cross-section Material Item no. Quantity SSU
RD 10-PVC 10 mm 50 75 78 mm² Steel 5021162
75 m
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Cross-connector with intermediate plate for Rd 8−10 mm FT Cross-connector with intermediate plate for Rd 8−10 mm FT 252 8-10 FT 5312310
25 piece
Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT Cross-connector with intermediate plate for Rd 8−10 x Rd 16 FT 252 8-10X16 FT 5312345
25 piece
Cross-connector Rd 8−10 mm Cross-connector Rd 8−10 mm 253 8X8 5312604
25 piece
Cross-connector for round and flat conductors FT Cross-connector for round and flat conductors FT 252 8-10XFL30 FT 5312655
25 piece
Cross-connector for Rd 8−10 x Rd 16 Cross-connector for Rd 8−10 x Rd 16 253 10X16 5312809
25 piece
Cross-connector for flat conductors and round conductors FT Cross-connector for flat conductors and round conductors FT 250 5312906
25 piece
Diagonal clamp for flat conductors and round conductors FT Diagonal clamp for flat conductors and round conductors FT 250 A-FT 5313015
25 piece
Diagonal clamp for flat conductors and round conductors FT Diagonal clamp for flat conductors and round conductors FT 250 AS-FT 5313031
25 piece
