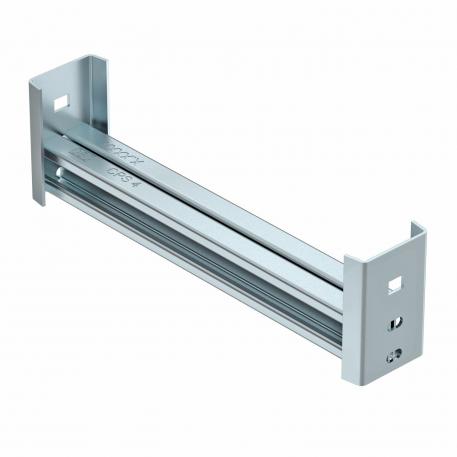

Rung CKD 40

Item no. 6008293 | EAN 4012195612797

Item no. / Types

Width

Product description

Product description

CKD40 rung for use in heavy-duty vertical ladders and in IS 8 supports.

Technical data

Technical data

Dimension	B854mm
lampDimension WxH	2 x 40 x 22,5 mm
Material	Steel

Material thickness	2 mm
Slot width	18 mm
Surface	Hot-dip galvanised

Dimensions

Height	100 mm
Length	854 mm

Width	854 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
CKD 40 60 FT	554 mm	6008269	piece	1 piece
CKD 40 70 FT	654 mm	6008277	piece	1 piece
CKD 40 80 FT	754 mm	6008285	piece	1 piece
CKD 40 90 FT	854 mm	6008293	piece	1 piece

Downloads

Data sheet CKD 40 90 FT / 6008293 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Mounting instructions KTS mounting instructions Version 1.1 applicable for all OBO cable support systems , 2.00MB , pdf

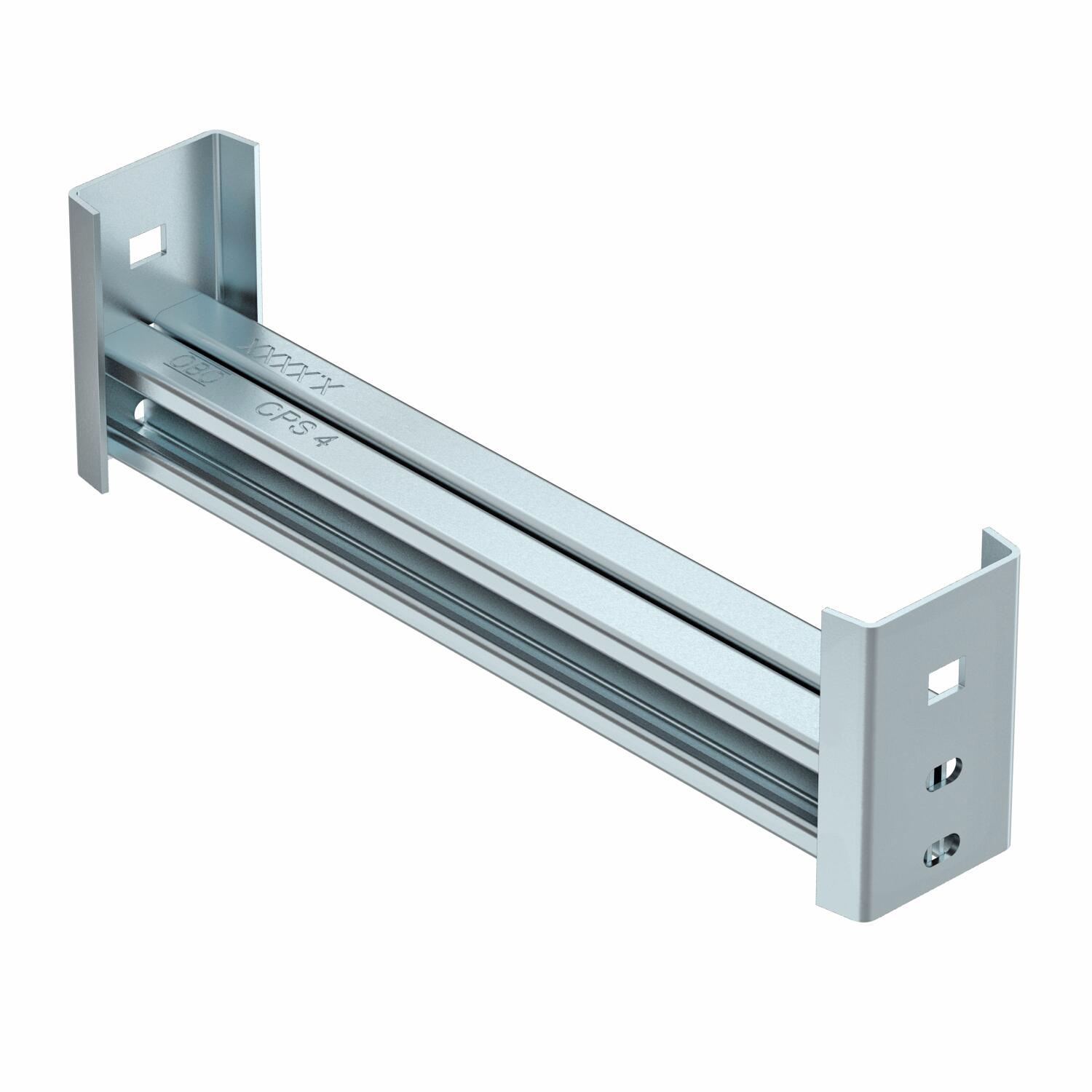

Product graphic CKD 40 90 FT / 6008293, 81.44 kB, jpg

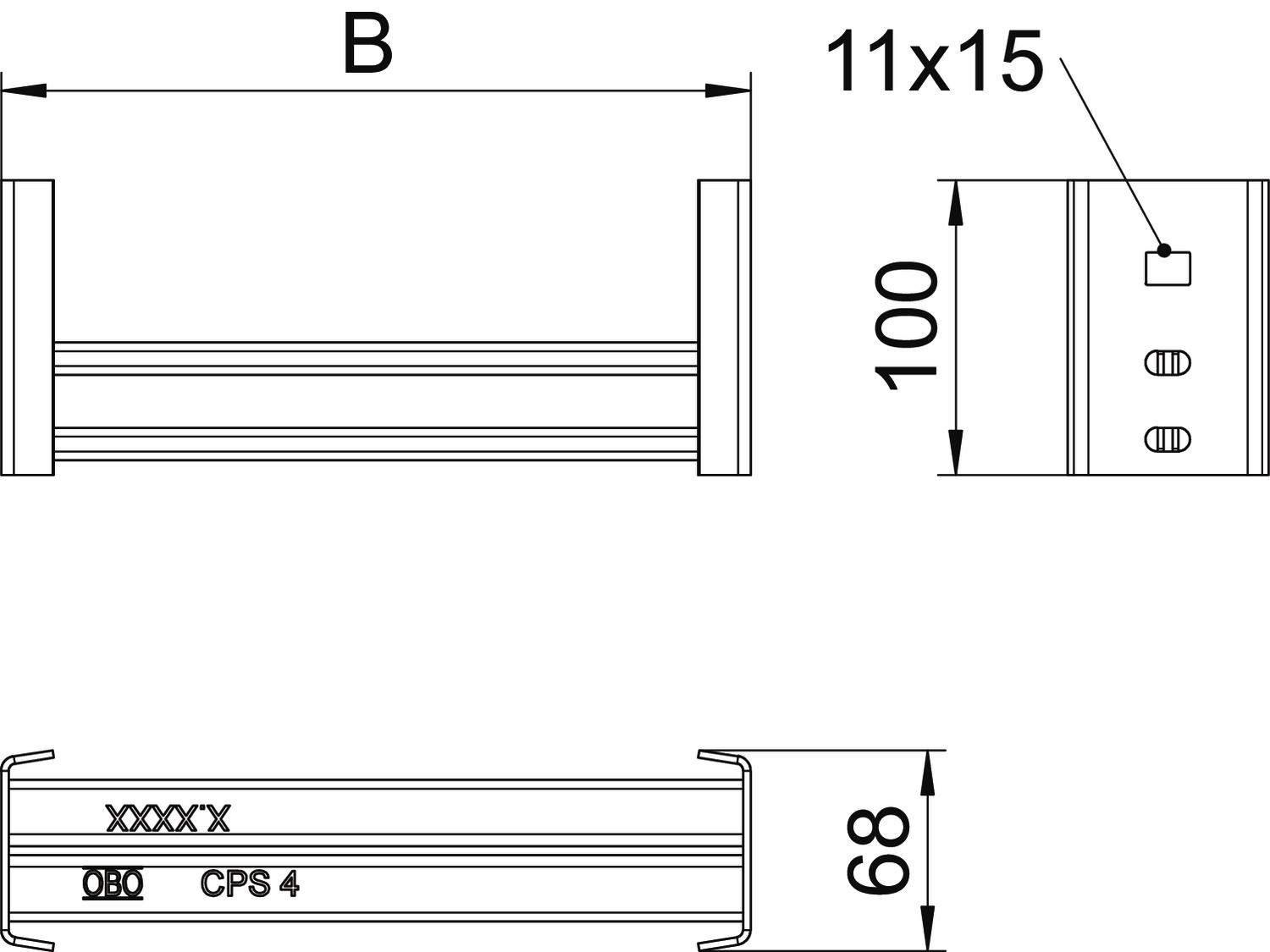

Scale drawing CKD 40 90 FT / 6008293, 74.48 kB, jpg

CKD 40 90 FT / 6008293

6008293_KSTP1.stp, 132.27 kB
