Rung support plate for the maintenance of electrical function FS
Item no. 6222951 | EAN 4012196555918
- Product description
-
Product descriptionRung support plates to increase the support area for the cables in the fittings for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Use the support plates to ensure the largest possible support surface in the cable ladder fittings for cables that maintain electrical function in the event of fire. The rung support plates are just laid loosely on the rungs of the cable ladder fittings. The lugs pointing down prevent slippage.
-
- Technical data
-
Technical data

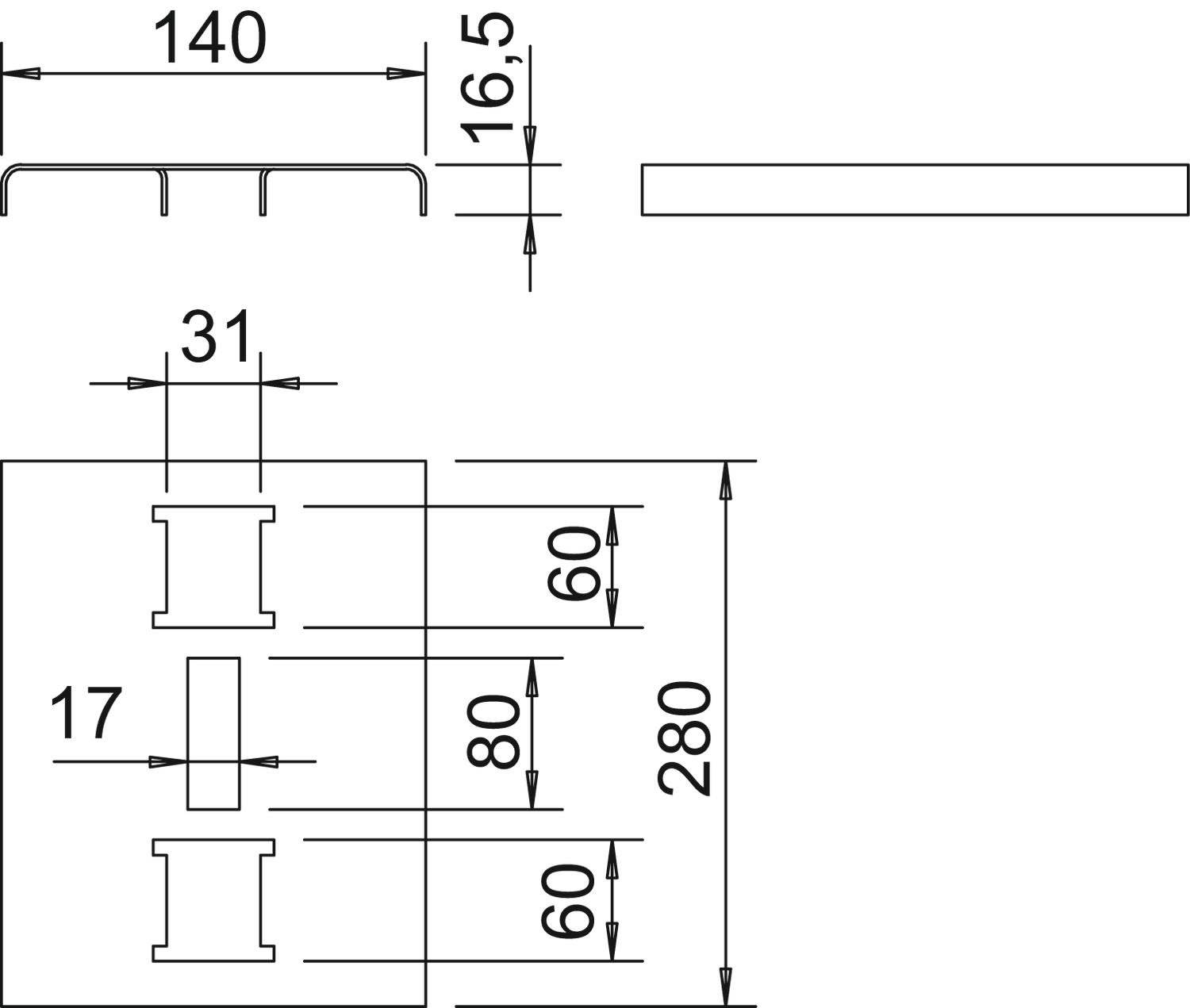

Dimension 280x140x16,5 Dimension a 60 mm Dimension B 280 mm Dimension b 80 mm Height 16,5 mm Maintain electrical functions yes Material Steel Material thickness 1,5 mm Rustproof steel, pickled no Surface Strip galvanized Wide-span version no Width 280 mm With perforation yes - All types
- Downloads
-
Data sheet SAB30 FS / 6222951 , 0.16MB , pdfBrochure Brochure The Experts , 2.10MB , pdfREACH Declaration of conformity SAB30 FS / 6222951 , 0.12MB , pdfRoHS Declaration of conformity SAB30 FS / 6222951 , 0.13MB , pdfNo invitation to tender text is available for this product.
