Rung support plate for the maintenance of electrical function FT

Item no. 6223044 | EAN 4012196167531

Item no. / Types

Width

Material thickness	1.5 mm

Product description

Product description

Rung support plates to increase the support surface for the cables in the fittings for routing types with cable ladders for the maintenance of electrical function to DIN 4102 Part 12. Use the rung support plates to ensure the largest possible support surface in the cable ladder fittings for the function maintenance cables in case of fire. The rung support plates are just laid loosely on the rungs of the cable ladder fittings. The lugs pointing down prevent slippage.

Technical data

Technical data

Dimension	380x140x16,5
Material	Steel

Material thickness	1,5 mm
Surface	Hot-dip galvanised

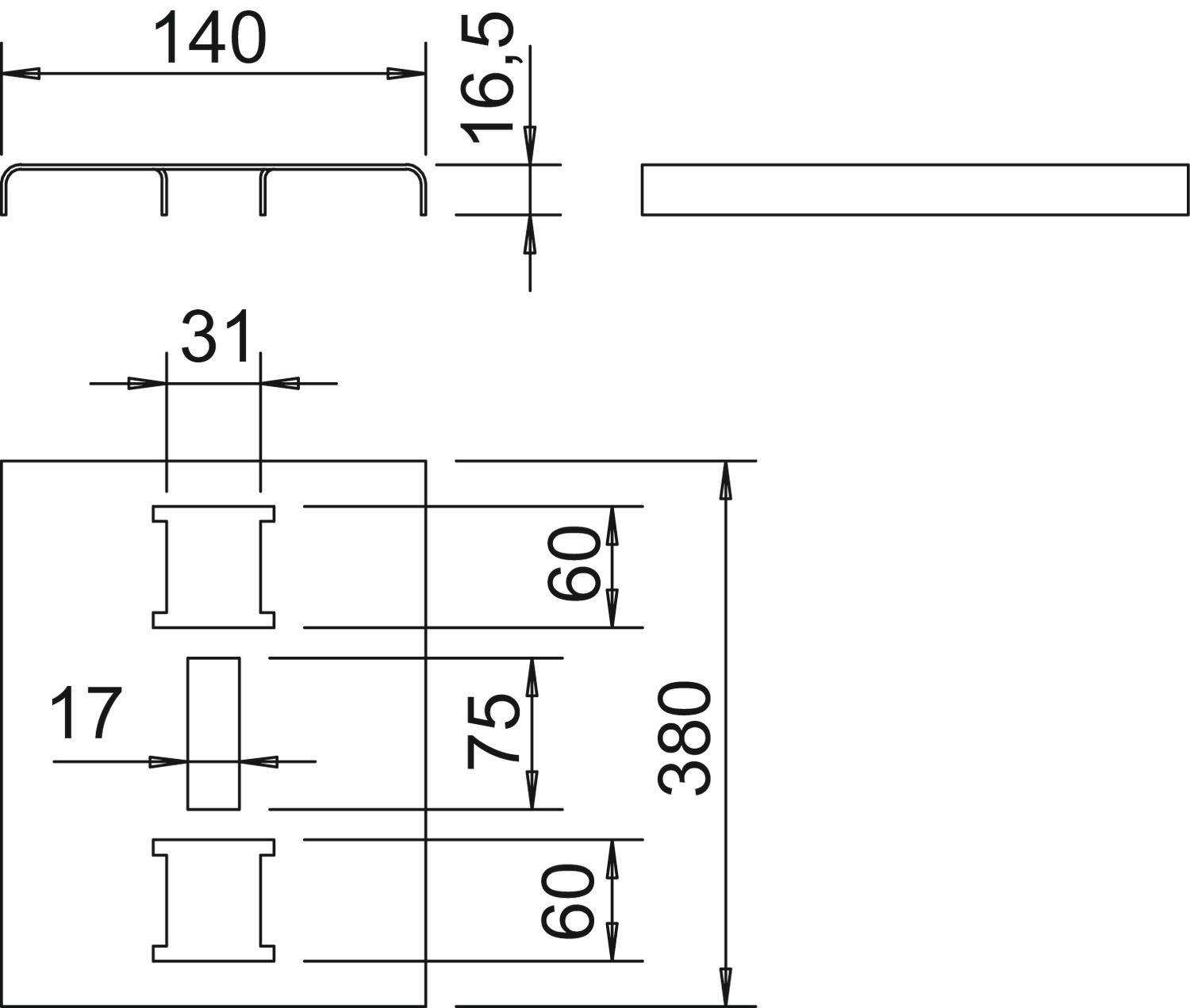

Dimensions

Dimension a	60 mm
Dimension b	75 mm

Dimension B	380 mm
Height	16,5 mm

All types

All types

Types	Width	Material thickness	Item no.	Quantity	SSU
SAB30 FT	280 mm	1.5 mm	6223036	piece	25 piece
SAB40 FT	-	1.5 mm	6223044	piece	25 piece
