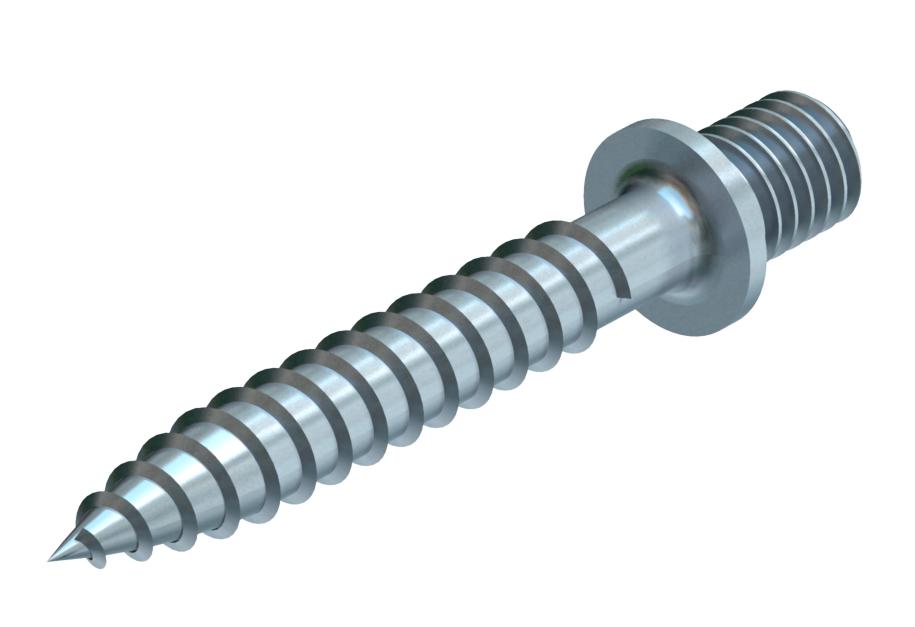

Screw-in anchor with M6 thread

Item no. 3133028 | EAN 4012195250395

4.3 mm
Product description
Product description
With wood screw shank and M6 thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

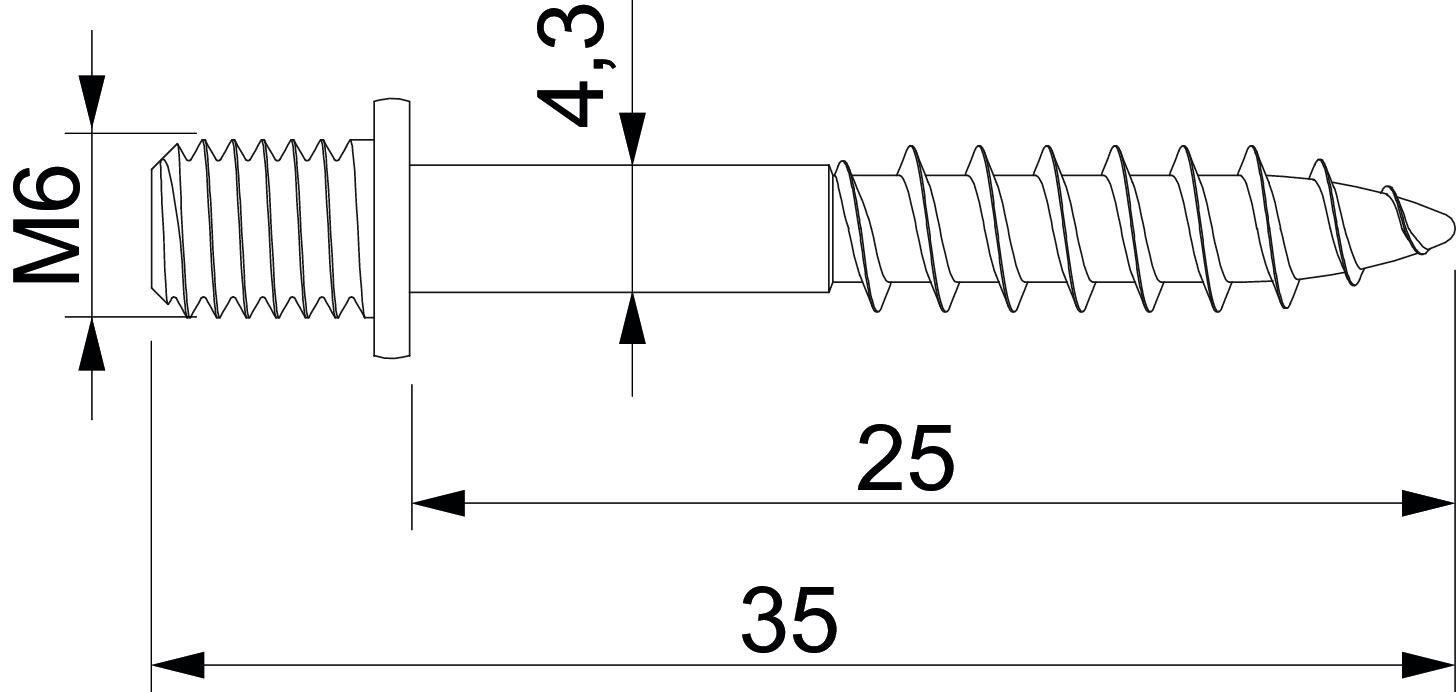

Dimension M6x25mm
Dimension D 4,3 mm
Dimension G M6 mm
Dimension L 35 mm
Dimension L1 25 mm
Hardened no
Head shape Miscellaneous
Length 25 mm
Material Steel
Screw system Miscellaneous
Shank diameter 4,3 mm
Surface Electrogalvanized
Two-compartment no
All types

All types

Types Length Dimension D Item no. Quantity SSU
985 M6 25 25 mm 4.3 mm 3133028
100 piece
985 M6 35 35 mm 4.3 mm 3133036
100 piece
