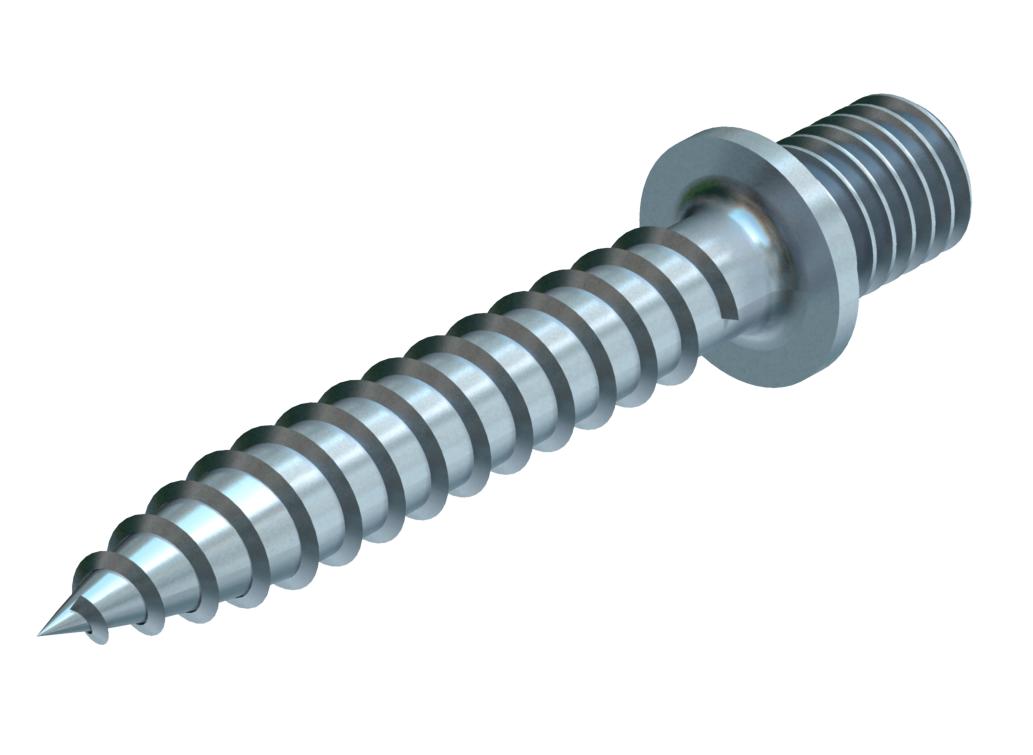

Screw-in anchor with M8 thread

Item no. 3133230 | EAN 4012195250579

3133230 / 985 M8 35
35 mm
5.2 mm
Product description

Product description

With wood screw shank and M8 thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

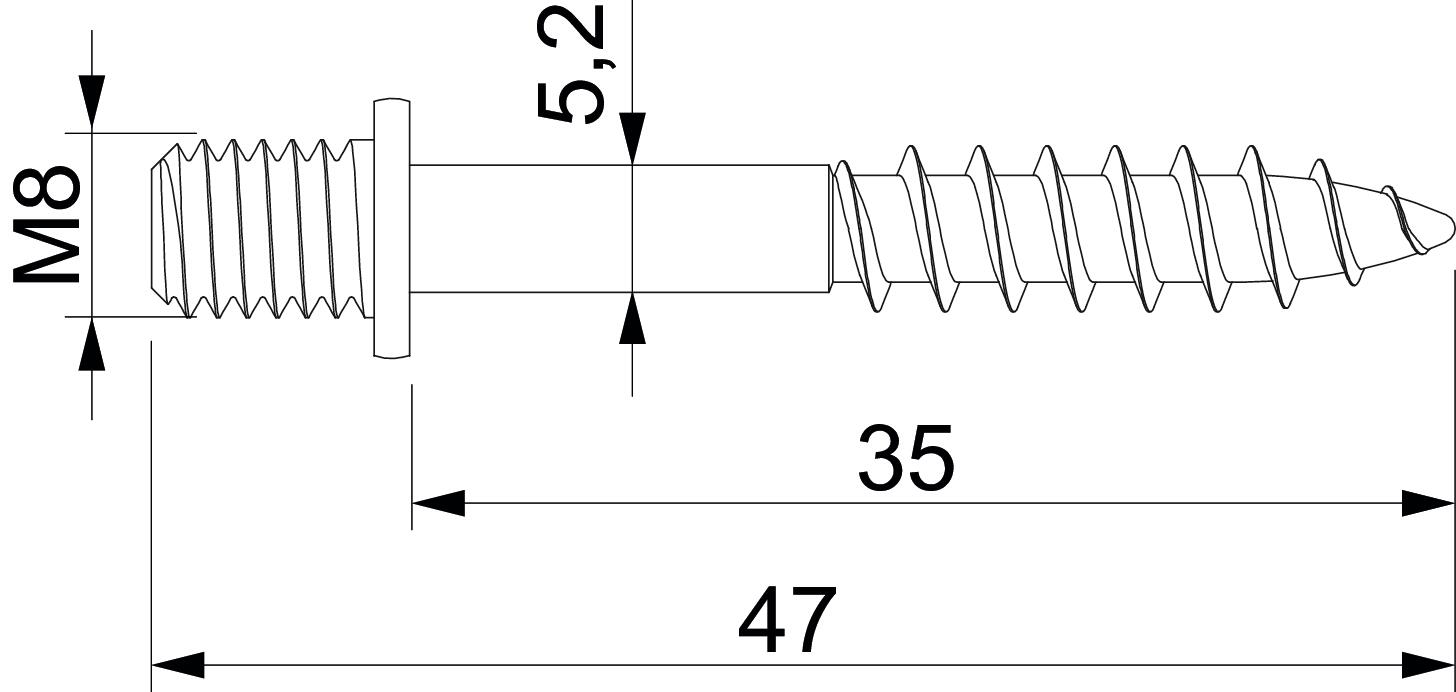

Dimension M8x35mm
Dimension D 5,2 mm
Dimension G M8 mm
Dimension L 47 mm
Dimension L1 35 mm
Hardened no
Head shape Miscellaneous
Length 35 mm
Material Steel
Screw system Miscellaneous
Shank diameter 5,2 mm
Surface Electrogalvanized
Two-compartment no
All types

All types

Types Length Dimension D Item no. Quantity SSU
985 M8 35 35 mm 5.2 mm 3133230
100 piece
