- Product description
-

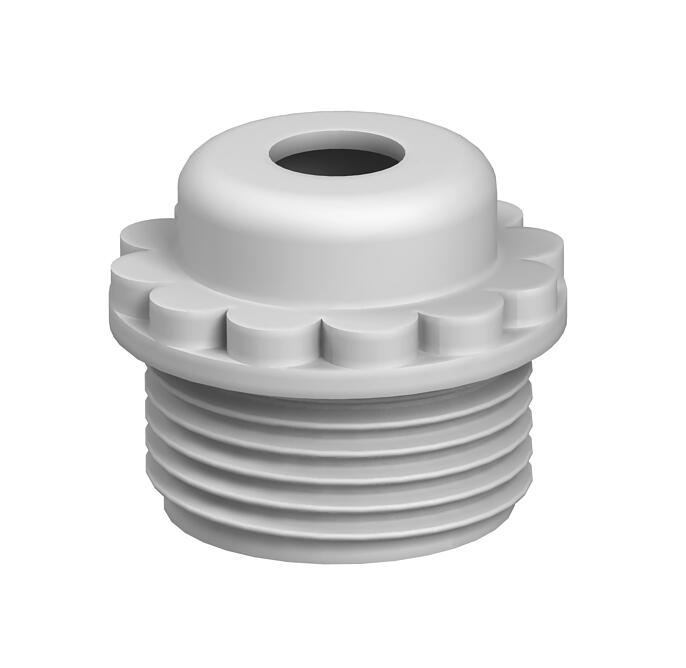

Product description
With open cable entry.
Grip seal to screw into metric thread end to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With open cable entry.
- Technical data
-
Technical data

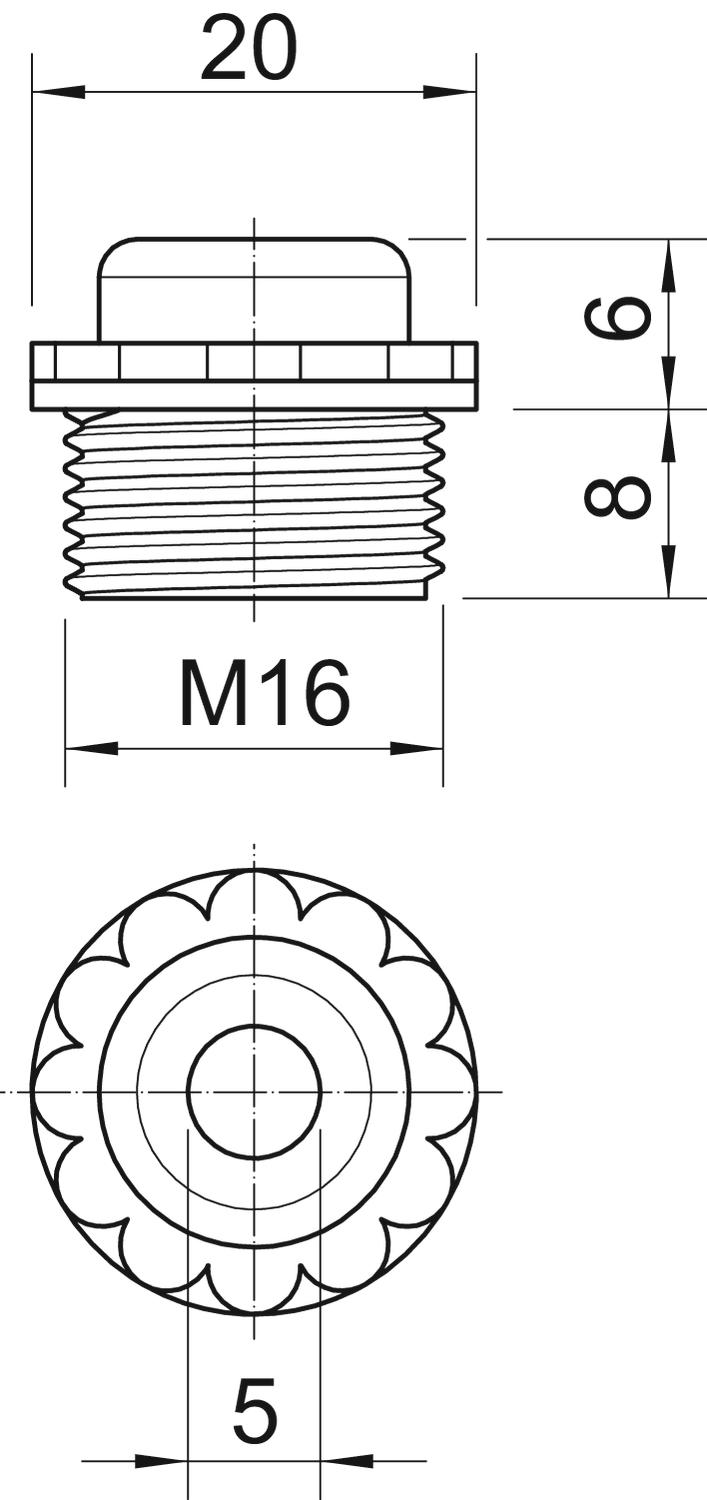

Colour Light grey; RAL 7035 Dimension M16 Dimension D 5 mm Dimension E 20 mm Dimension L1 8 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size M16 Thread length 8 mm WAF 16 - All types
- Downloads
-
Data sheet 90 M16 OF / 2032011 , 0.21MB , pdfREACH Declaration of conformity 90 M16 OF / 2032011 , 0.12MB , pdfRoHS Declaration of conformity 90 M16 OF / 2032011 , 0.12MB , pdf
