Screw-in nipple, metric thread, with opening

Item no. 2032015 | EAN 4012195477730

Product description

Product description

With open cable entry.

Grip seal to screw into metric thread end to IEC 423.

With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.

Protection rating achievable with careful mounting: IP54.
With open cable entry.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric

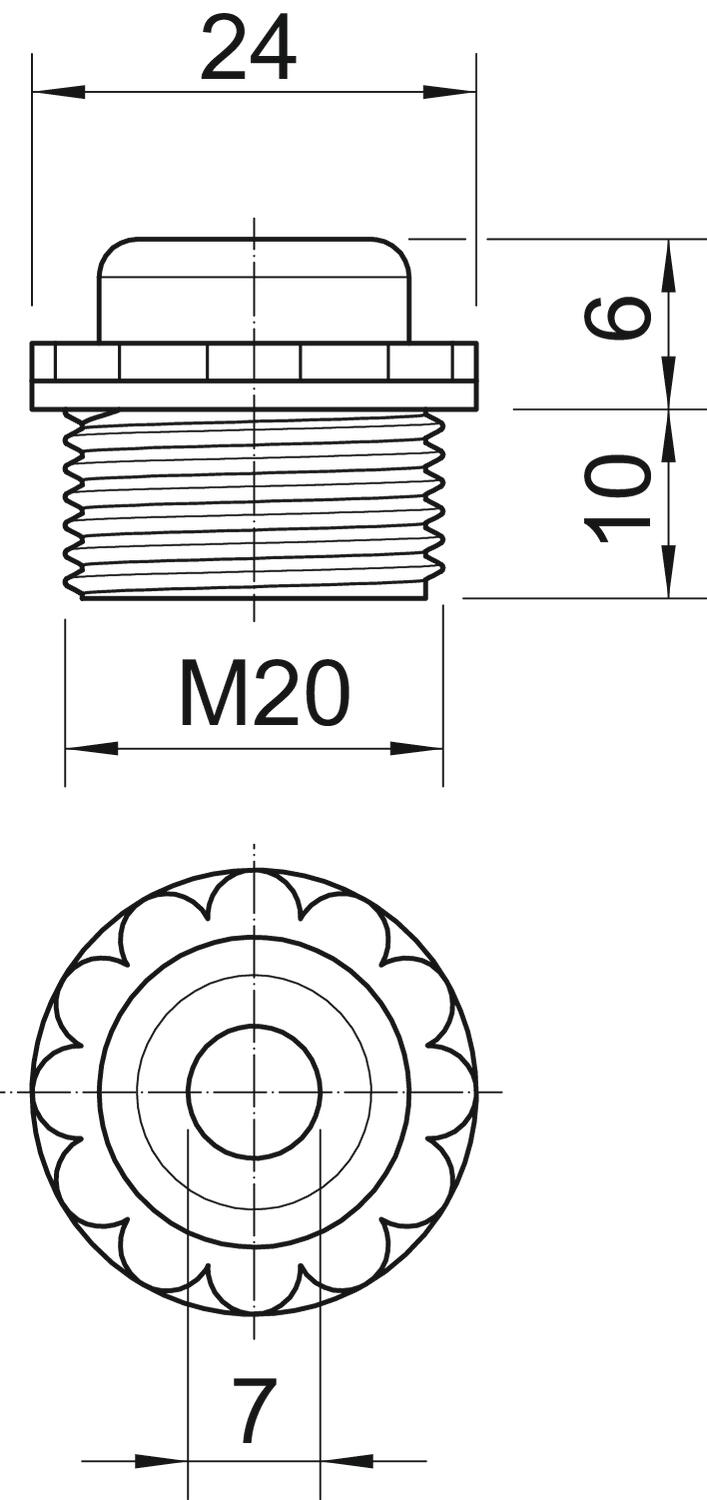

Technical data

Technical data

Colour Light grey; RAL 7035
Dimension M20
Dimension D 7 mm
Dimension E 24 mm
Dimension L1 10 mm
Dimension L2 6 mm
Halogen-free yes
Material Polyethylene
Protection rating IP54
Size M20
Thread length 10 mm
WAF 21
All types

All types

Types Size Item no. Quantity SSU
90 M12 OF M12 2032007
100 piece
90 M16 OF M16 2032011
100 piece
90 M20 OF M20 2032015
100 piece
90 M25 OF M25 2032019
50 piece
90 M32 OF M32 2032023
25 piece
90 M40 OF M40 2032031
10 piece
