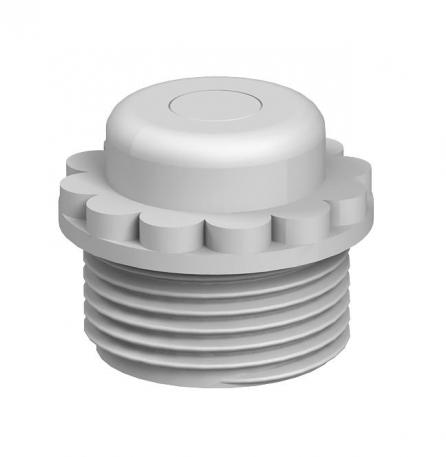

Screw-in nipple, metric thread, with perforation membrane

Item no. 2032384 | EAN 4012195481638

Product description

Product description

With perforation membranes, the opening D is pre-marked, but closed.
Grip seal to screw into metric thread to IEC 423.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.
Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric

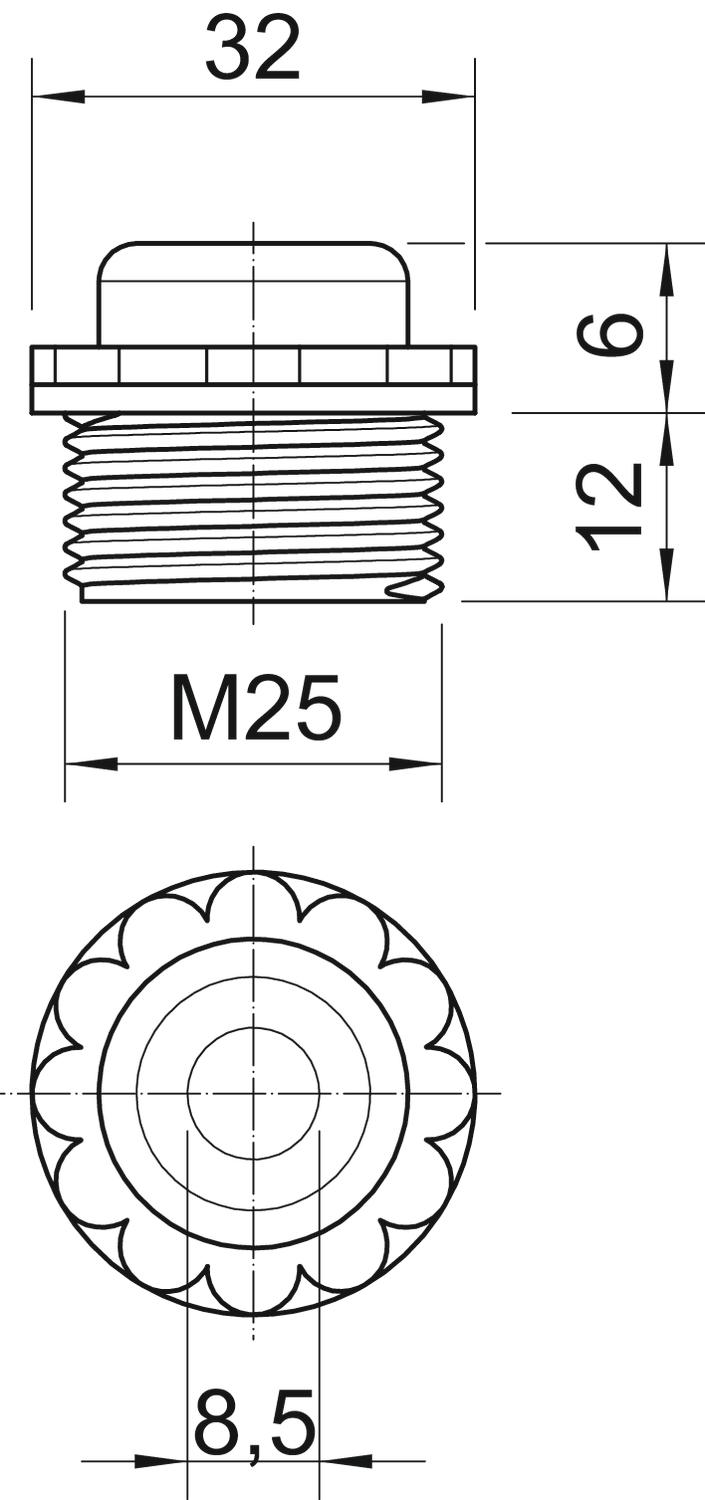

Technical data

Technical data

Colour Light grey; RAL 7035
Dimension M25
Dimension D 8,5 mm
Dimension E 32 mm
Dimension L1 12 mm
Dimension L2 6 mm
Halogen-free yes
Material Polyethylene
Protection rating IP54
Size M25
Thread length 12 mm
WAF 30
All types

All types

Types Size Item no. Quantity SSU
90 M12 GE M12 2032378
100 piece
90 M16 GE M16 2032380
100 piece
90 M20 GE M20 2032382
100 piece
90 M25 GE M25 2032384
50 piece
90 M32 GE M32 2032386
25 piece
90 M40 GE M40 2032388
10 piece
