Screw-in nipple, PG thread, with opening Pg 11
morepic-1 morepic-2

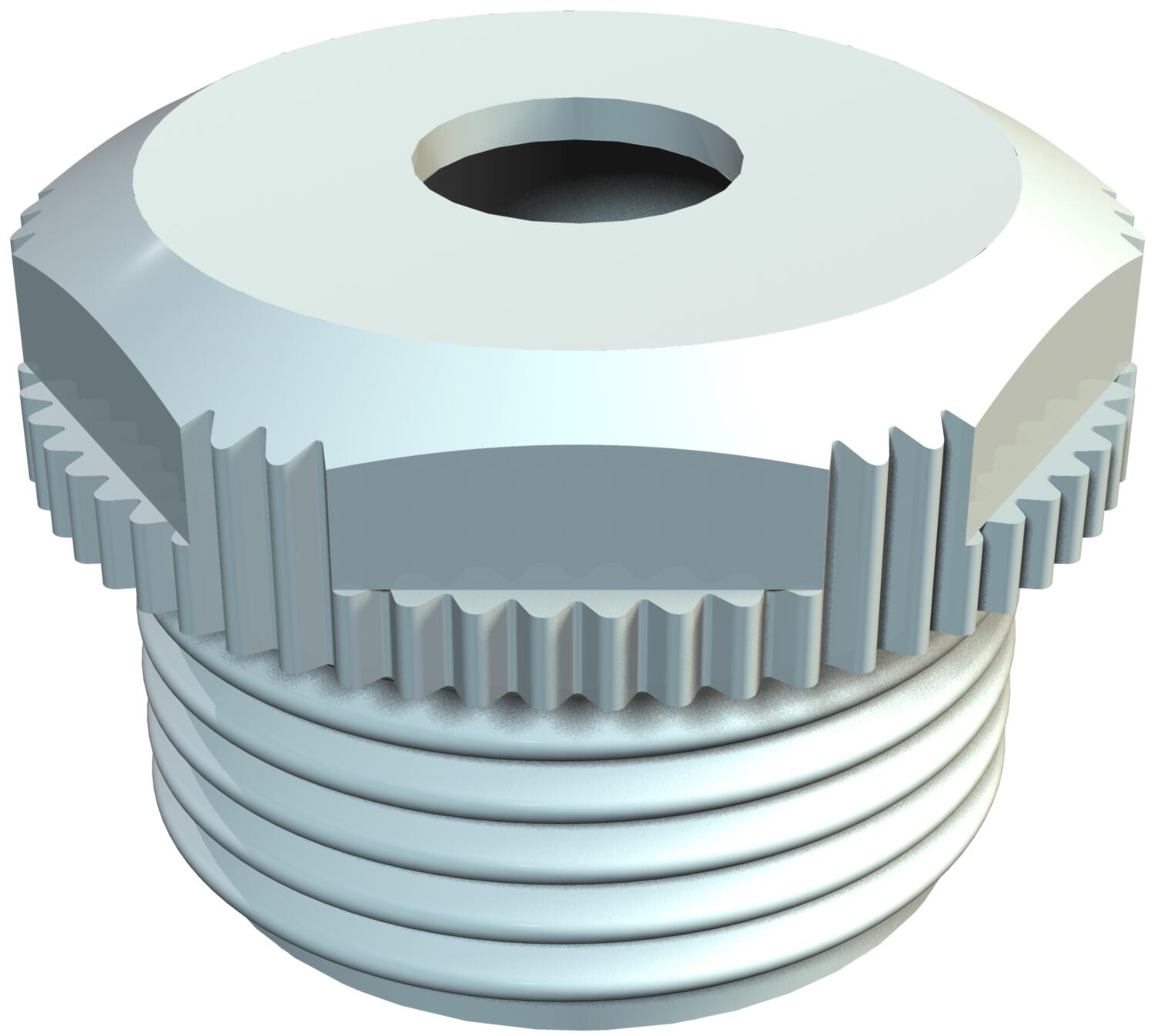

Screw-in nipple, PG thread, with opening

Item no. 2032112 | EAN 4012195169031

Product description
Product description
With open cable entry.

Grip seal to screw into PG thread end to DIN 40430.

With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.

Protection rating achievable with careful mounting: IP54.
With open cable entry.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

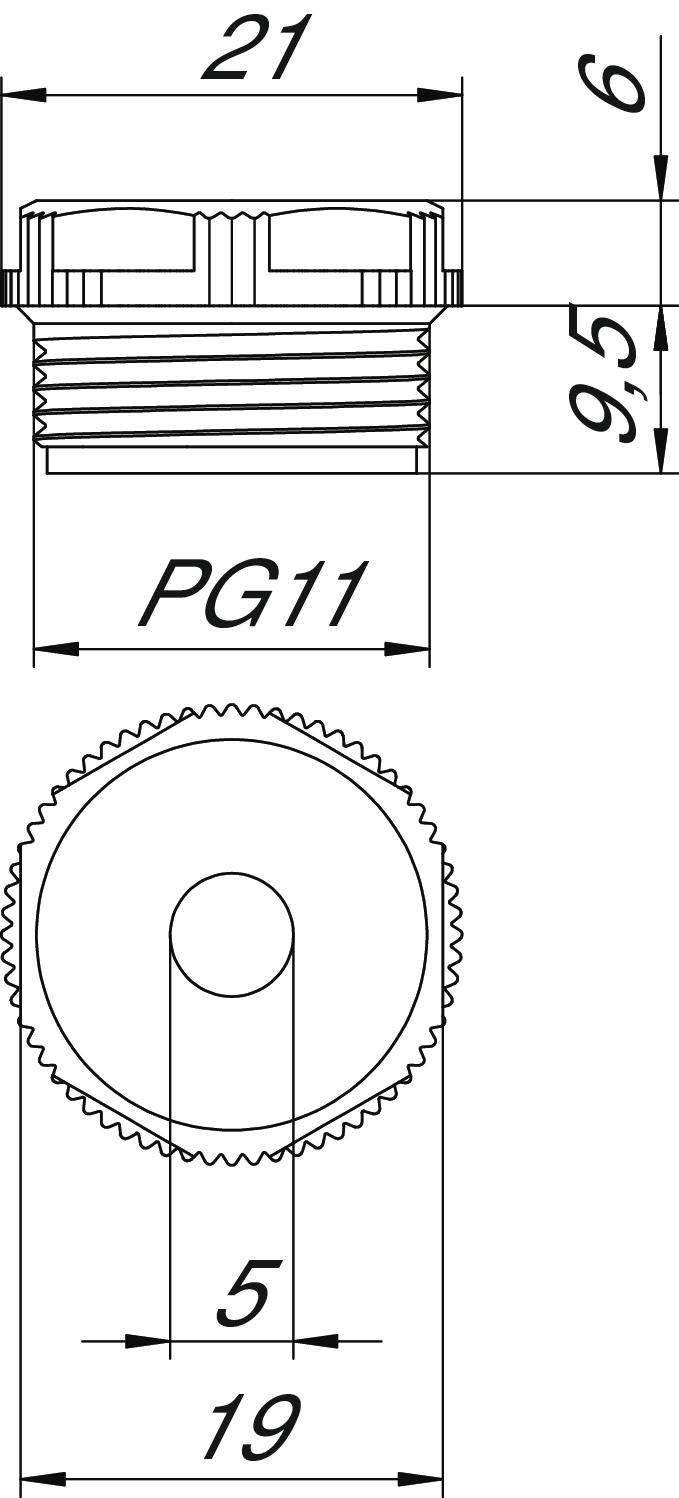

Dimension PG11
Dimension D 5 mm
Dimension E 21 mm
Dimension L1 9,5 mm
Dimension L2 6 mm
Halogen-free yes
Material Polyethylene
Protection rating IP54
Size Pg 11
Thread length 9,5 mm
WAF 19
All types

All types

Types Size Item no. Quantity SSU
90 PG11 OF Pg 11 2032112
100 piece
90 PG13.5 OF Pg 13,5 2032139
100 piece
90 PG16 OF Pg 16 2032163
100 piece
90 PG21 OF Pg 21 2032201
50 piece
