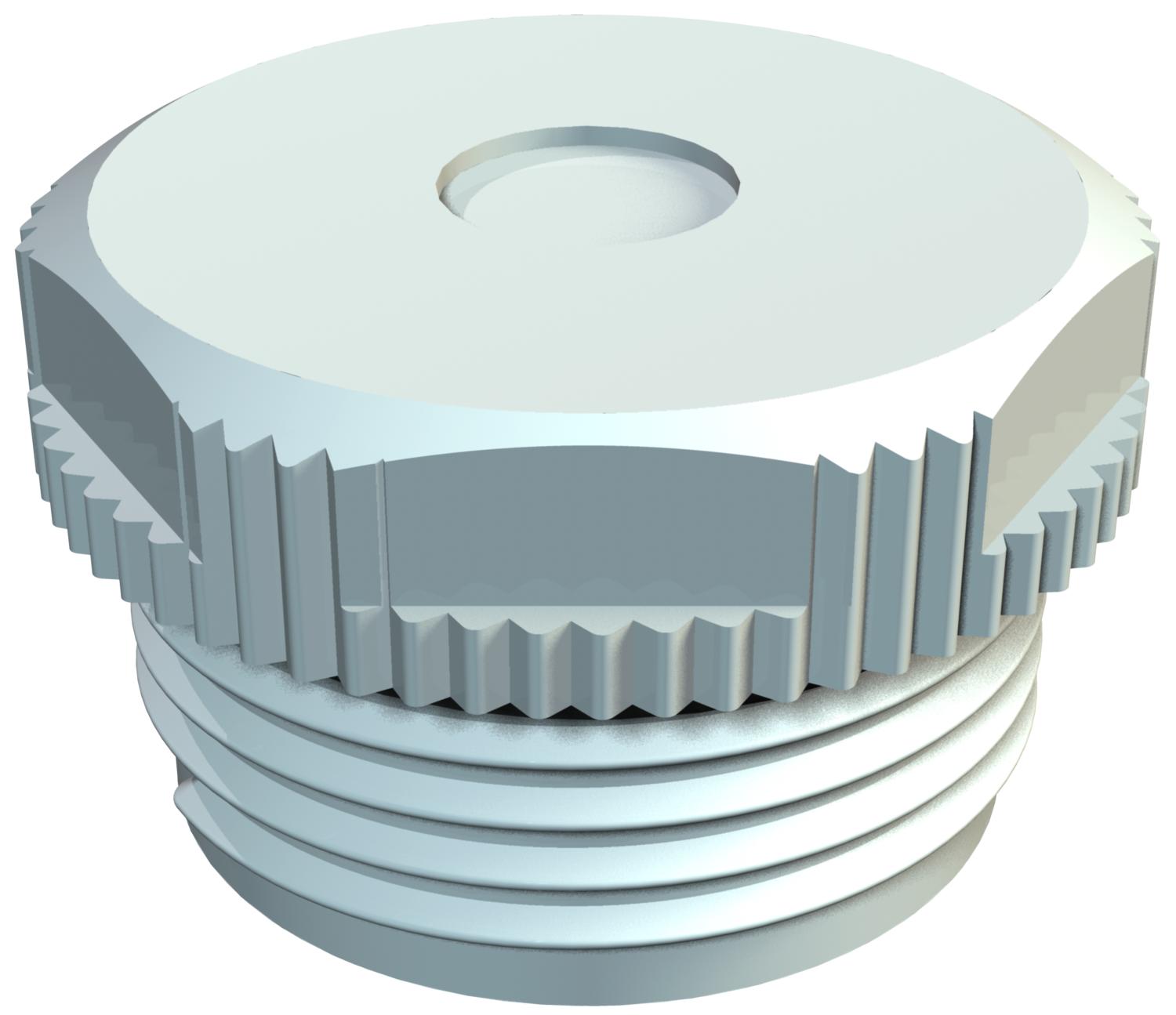

Screw-in nipple, PG thread, with perforation membrane
Item no. 2032511 | EAN 4012195169871
- Product description
-
Product descriptionWith perforation membrane, the opening D is pre-marked, but closed.
Grip seal to screw into PG thread to DIN 40430.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
-
- Technical data
-
Technical data

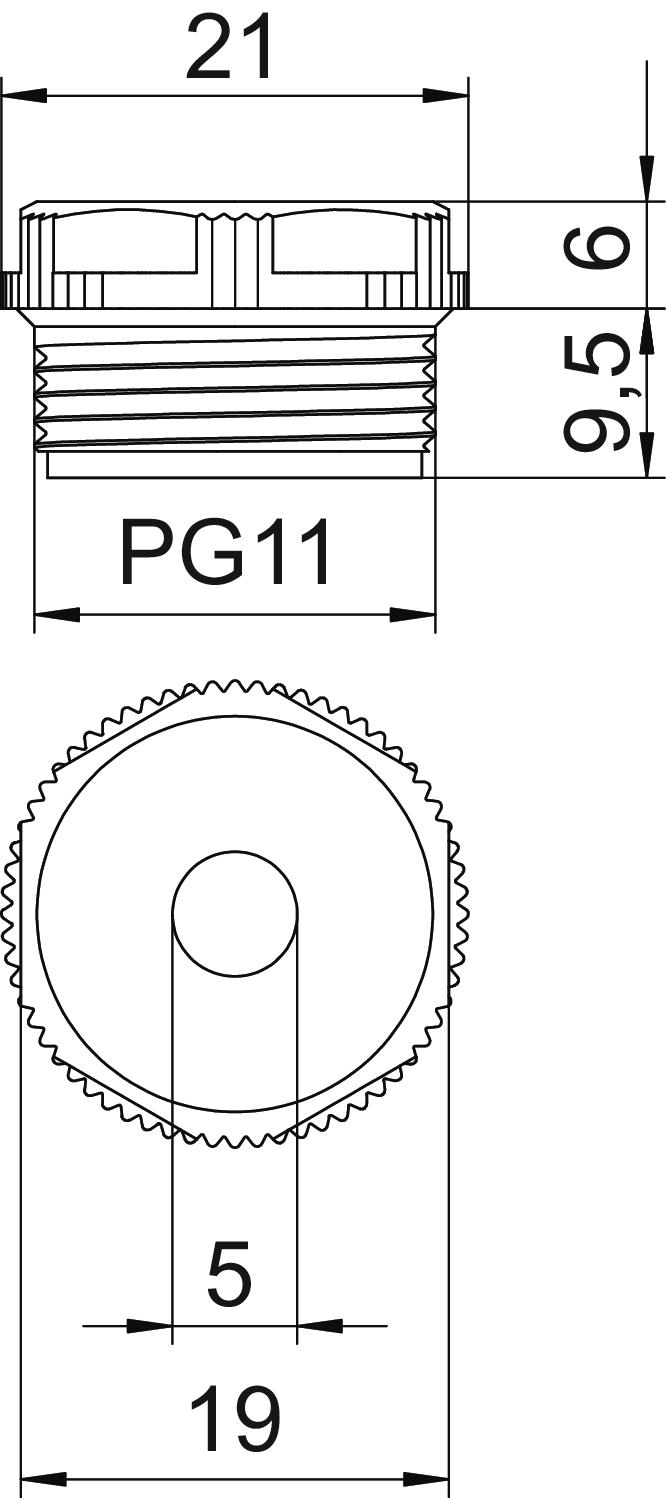

Colour Light grey; RAL 7035 Dimension PG11 Dimension D 5 mm Dimension E 21 mm Dimension L1 9,5 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size Pg 11 Thread length 9,5 mm WAF 19 - All types
