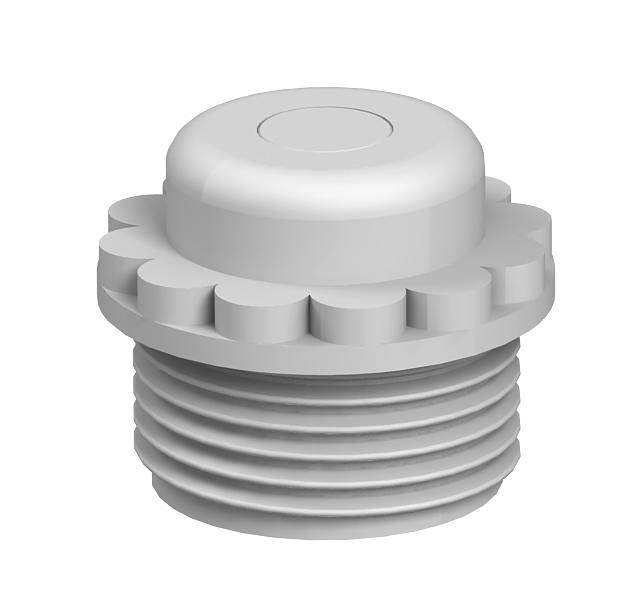

Screw-in nipple, PG thread, with perforation membrane Pg 16

Screw-in nipple, PG thread, with perforation membrane

Item no. 2032546 | EAN 4012195169994

Item no. / Types

Size

Product description

Product description

With perforation membrane, the opening D is pre-marked, but closed.

Grip seal to screw into PG thread to DIN 40430.

With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.

Technical data

Technical data

Colour	Light grey; RAL 7035

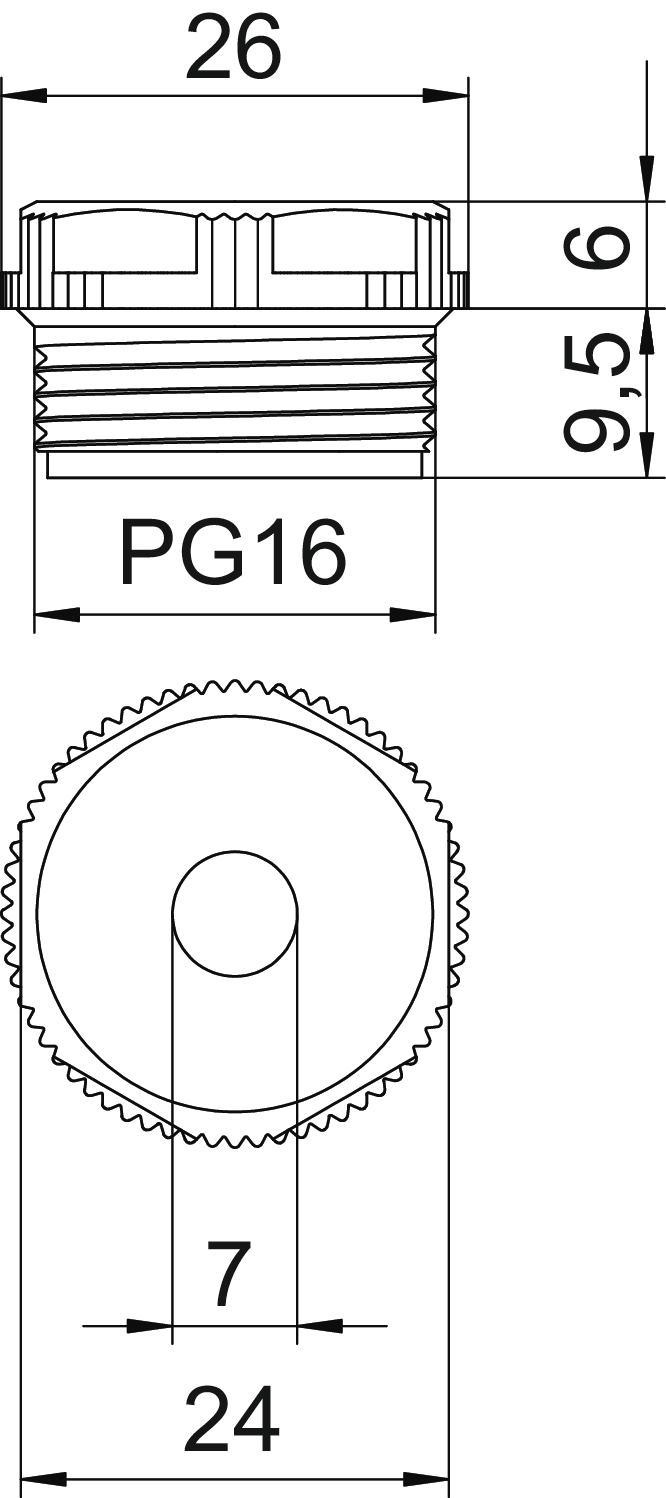

Dimension	PG16
Dimension D	7 mm
Dimension E	26 mm
Dimension L1	9,5 mm
Dimension L2	6 mm

Halogen-free	yes
Material	Polyethylene
Protection rating	IP54
Size	Pg 16
Thread length	9,5 mm
WAF	24

All types

All types

Types	Size	Item no.	Quantity	SSU
90 PG 9 DSMB	Pg 9	2032503	piece	100 piece
90 PG11 DSMB	Pg 11	2032511	piece	100 piece
90 PG13.5 DSMB	Pg 13,5	2032538	piece	100 piece
90 PG16 DSMB	Pg 16	2032546	piece	100 piece
90 PG21 DSMB	Pg 21	2032554	piece	50 piece
90 PG29 DSMB	Pg 29	2032562	piece	25 piece
