- Product description
-

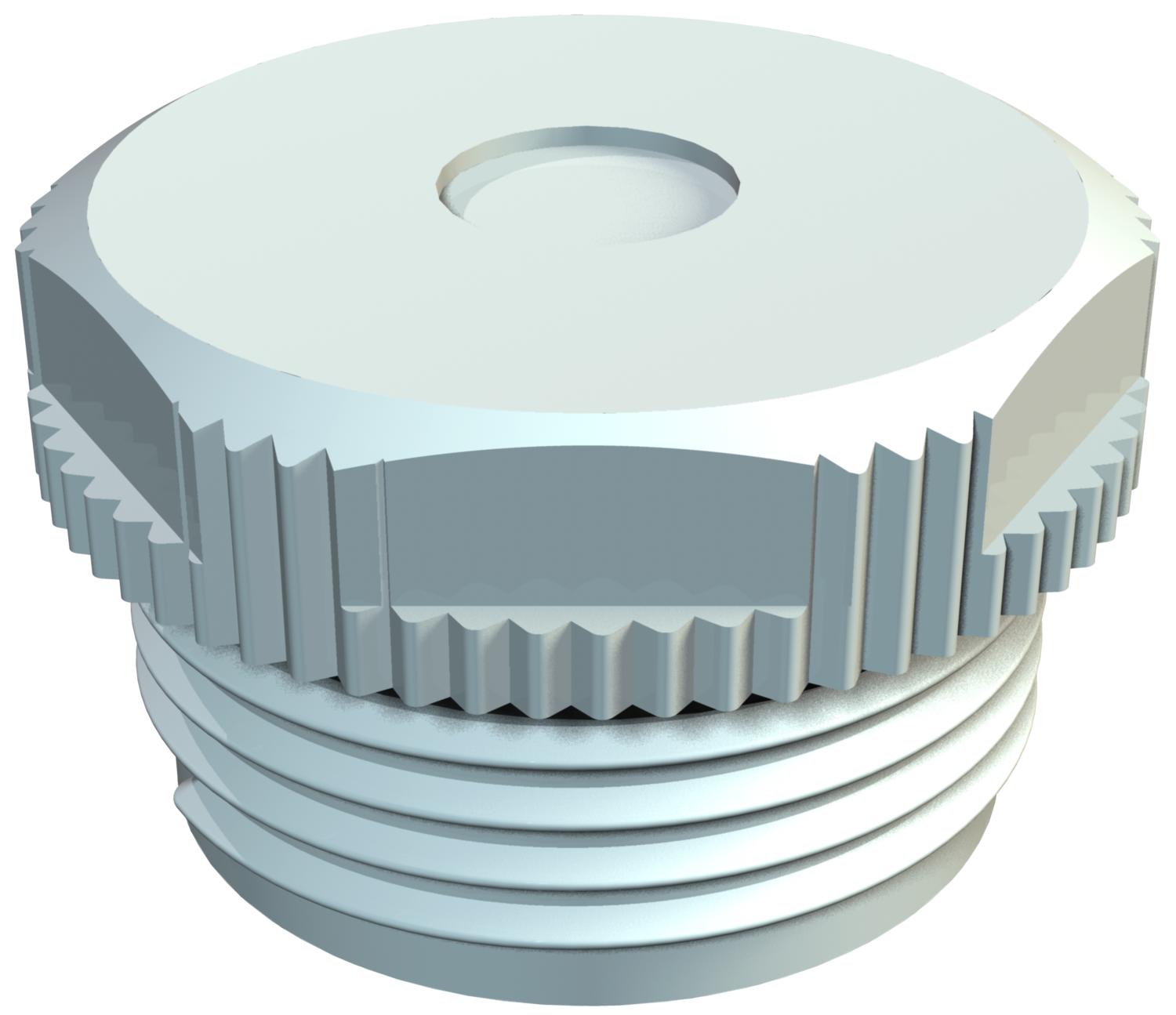

Product description
With perforation membrane, the opening D is pre-marked, but closed.
Grip seal to screw into PG thread to DIN 40430.
With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
- Technical data
-
Technical data

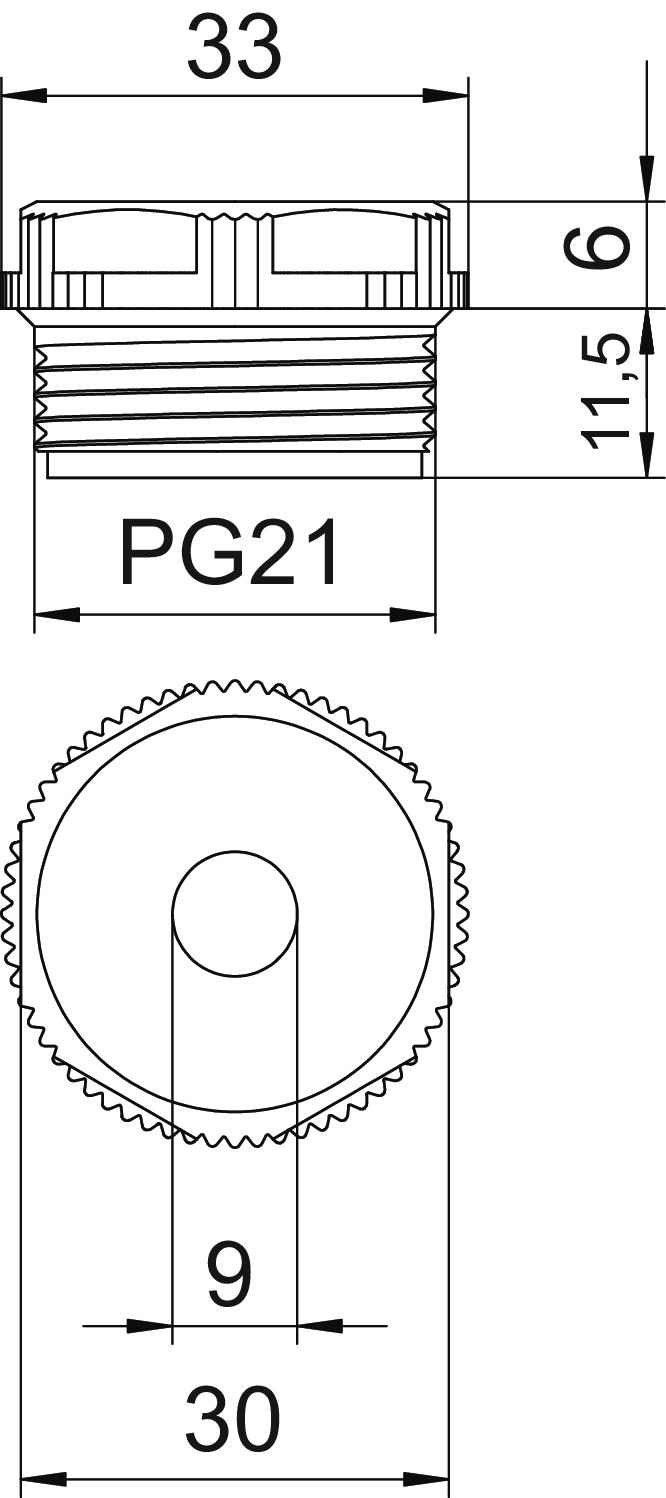

Colour Light grey; RAL 7035 Dimension PG21 Dimension D 9 mm Dimension E 33 mm Dimension L1 11,5 mm Dimension L2 6 mm Halogen-free yes Material Polyethylene Protection rating IP54 Size Pg 21 Thread length 11,5 mm WAF 30 - All types
- Downloads
-
Data sheet 90 PG21 DSMB / 2032554 , 0.23MB , pdfDeclaration of conformity 90 PG21 DSMB / 2032554 , 0.05MB , pdfREACH Declaration of conformity 90 PG21 DSMB / 2032554 , 0.12MB , pdfRoHS Declaration of conformity 90 PG21 DSMB / 2032554 , 0.12MB , pdf
