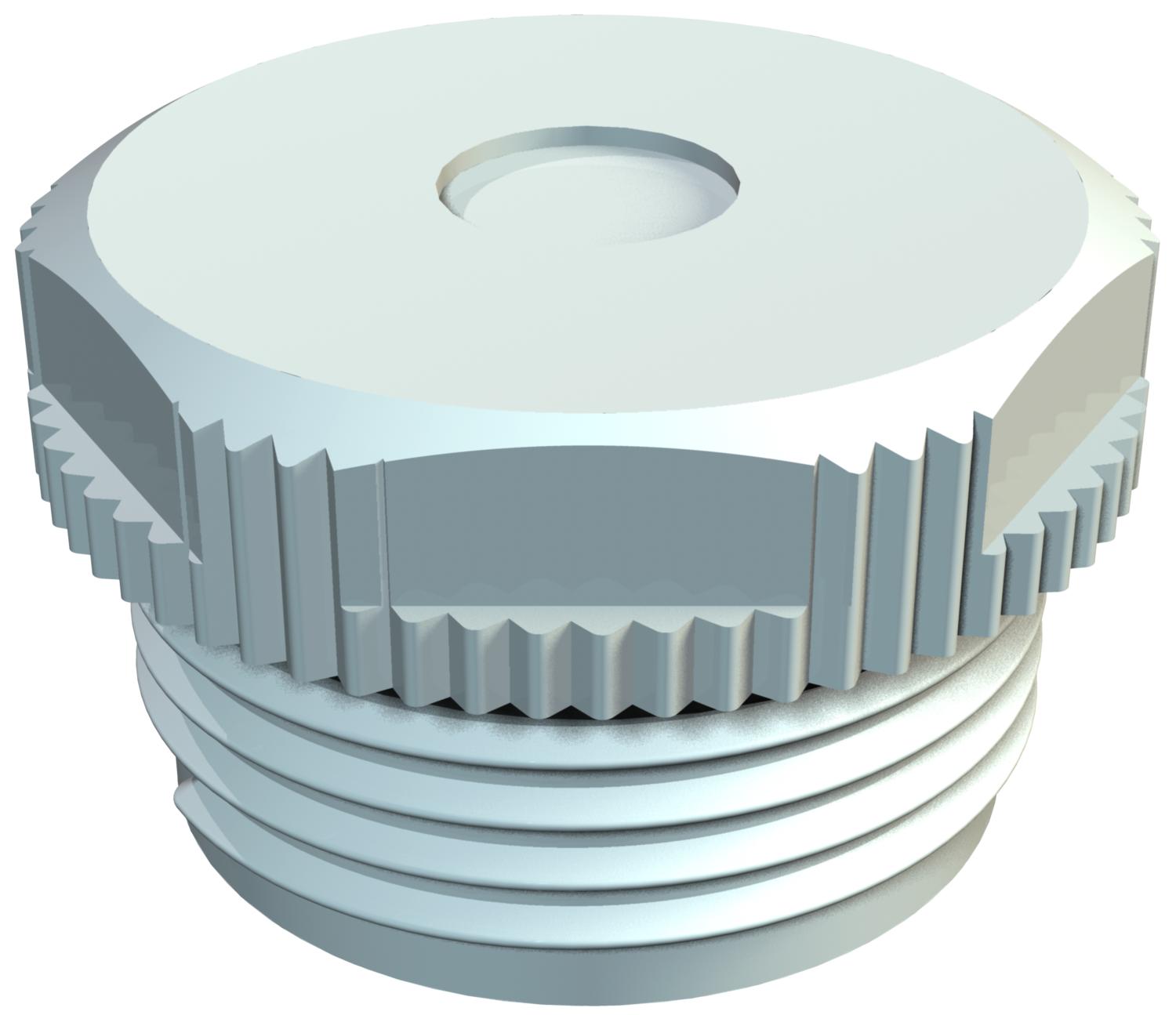

Screw-in nipple, PG thread, with perforation membrane

Item no. 2032503 | EAN 4012195169819

Product description

Product description

With perforation membrane, the opening D is pre-marked, but closed.

Grip seal to screw into PG thread to DIN 40430.

With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.
With perforation membranes, the opening D is pre-marked, but closed.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035

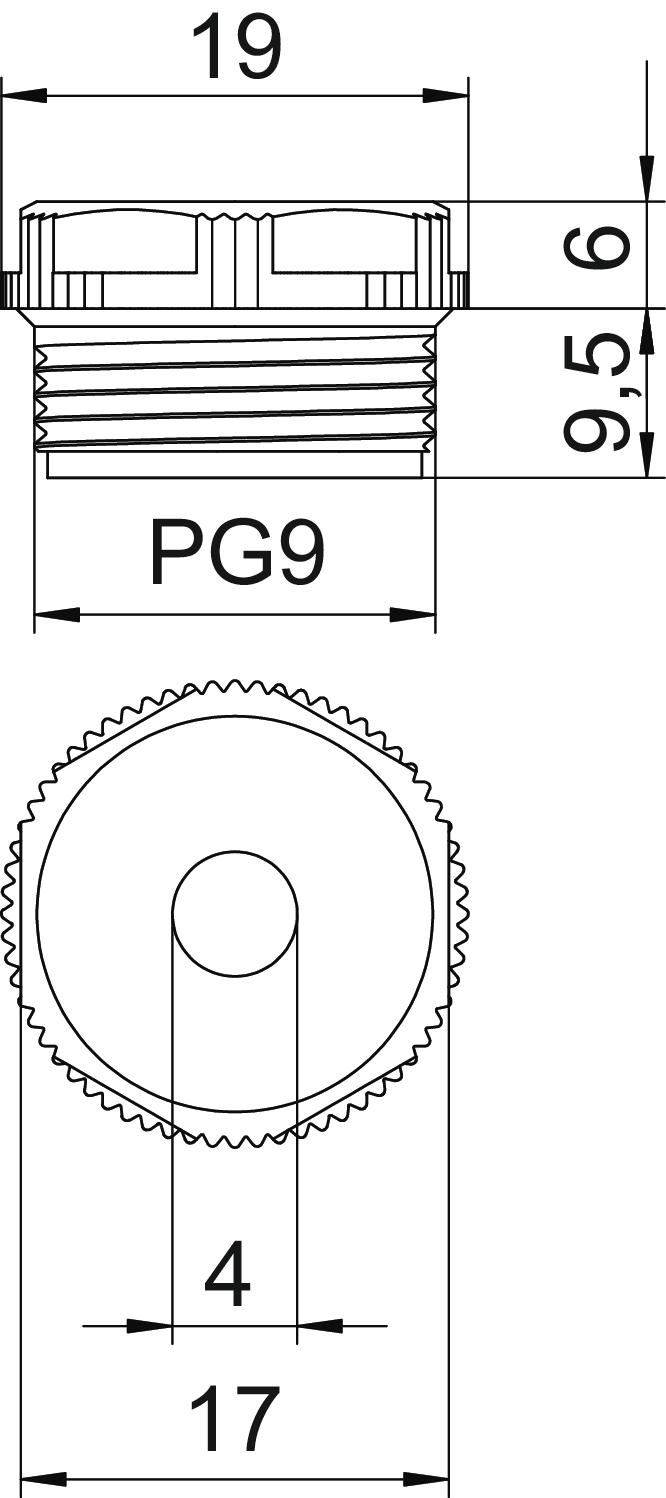

Dimension PG9
Dimension D 4 mm
Dimension E 19 mm
Dimension L1 9,5 mm
Dimension L2 6 mm
Halogen-free yes
Material Polyethylene
Protection rating IP54
Size Pg 9
Thread length 9,5 mm
WAF 17
All types

All types

Types Size Item no. Quantity SSU
90 PG 9 DSMB Pg 9 2032503
100 piece
90 PG11 DSMB Pg 11 2032511
100 piece
90 PG13.5 DSMB Pg 13,5 2032538
100 piece
90 PG16 DSMB Pg 16 2032546
100 piece
90 PG21 DSMB Pg 21 2032554
50 piece
90 PG29 DSMB Pg 29 2032562
25 piece
