Screw-in spacer clip 2 | M6 | 16 | 20 | Steel | Electrogalvanized
morepic-1 morepic-2

Screw-in spacer clip

Item no. 1366203 | EAN 4012195118039

2 mm
M6 mm
Steel
Electrogalvanized
Product description

Product description

With M6 thread.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Bolt M5 x 14
Clamping range D, max. 20 mm
Clamping range D, min. 16 mm
Dimension 16-20mm

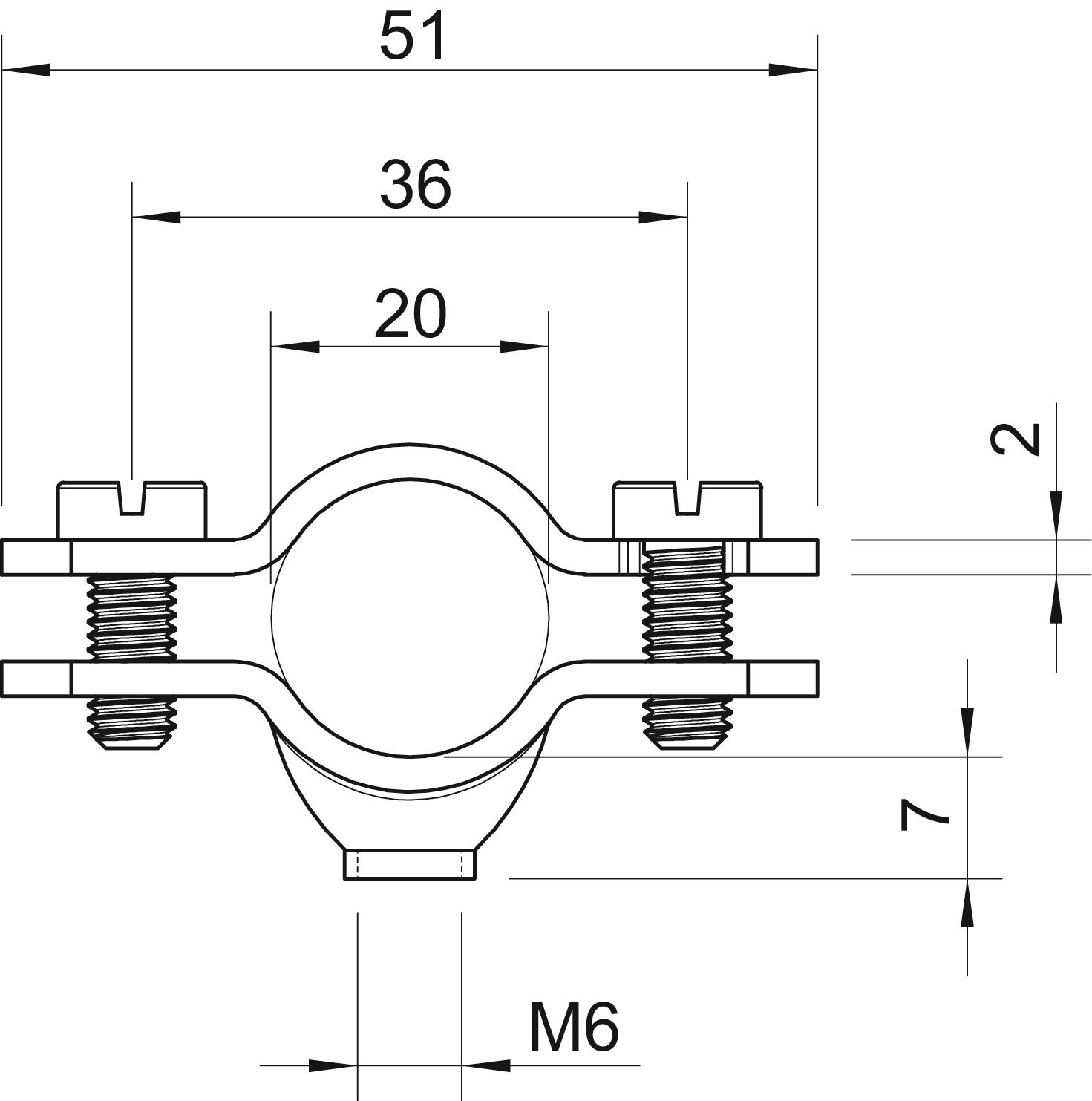

Dimension A 51 mm
Dimension B 36 mm
Dimension D 20 mm
Dimension d min. 20 mm
Dimension t 2 mm
Fastening type Screw hole
Halogen-free no
Hole size M6 mm
Length 51 mm
Material Steel
Material thickness 2 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
Surface Electrogalvanized
UV-resistant yes
Version for Closed
All types

All types

Types Material thickness Hole size Clamping range D, min. Clamping range D, max. Material Surface Item no. Quantity SSU
731 W 12 G 2 mm M6 mm 8 mm 12 mm Steel Electrogalvanized 1366122
50 piece
731 W 16 G 2 mm M6 mm 12 mm 16 mm Steel Electrogalvanized 1366165
50 piece
731 W 20 G 2 mm M6 mm 16 mm 20 mm Steel Electrogalvanized 1366203
50 piece
731 W 25 G 2 mm M6 mm 20 mm 25 mm Steel Electrogalvanized 1366254
50 piece
731 W 30 G 2 mm M6 mm 25 mm 30 mm Steel Electrogalvanized 1366300
25 piece
731 W 35 G 2 mm M6 mm 30 mm 35 mm Steel Electrogalvanized 1366351
25 piece
