Screw-in spacer clip 705, double 1.25 | M6 | 13 | 20 | Steel | Electrogalvanized

morepic-1

morepic-2

Screw-in spacer clip 705, double

Item no. 1371207 | EAN 4012195119418

Item no. / Types	1371207 / 705 D M6

Material thickness	1.25 mm

Hole size	M6 mm

Clamping range D, min.	13 mm

Clamping range D, max.	20 mm

Material	Steel

Surface	Electrogalvanized

Product description

Product description

With M6 thread.

Technical data

Technical data

Bolt	M5 x 14
Clamping range D, max.	20 mm
Clamping range D, min.	13 mm
Dimension	13-20mm
Fastening type	Screw hole
Halogen-free	no
Hole size	M6 mm

Material	Steel
Material thickness	1,25 mm
Plastic-covered	no
Surface	Electrogalvanized
UV-resistant	yes
Version for	Closed

Dimensions

Dimension A	71 mm
Dimension B	57 mm
Dimension D	20 mm

Dimension d min.	20 mm
Dimension m (mm)	20

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
705 D M6	1.25 mm	M6 mm	13 mm	20 mm	Steel	Electrogalvanized	1371207	piece	50 piece

Downloads

Data sheet 705 D M6 / 1371207 , 0.16MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 705 D M6 / 1371207 , 0.13MB , pdf

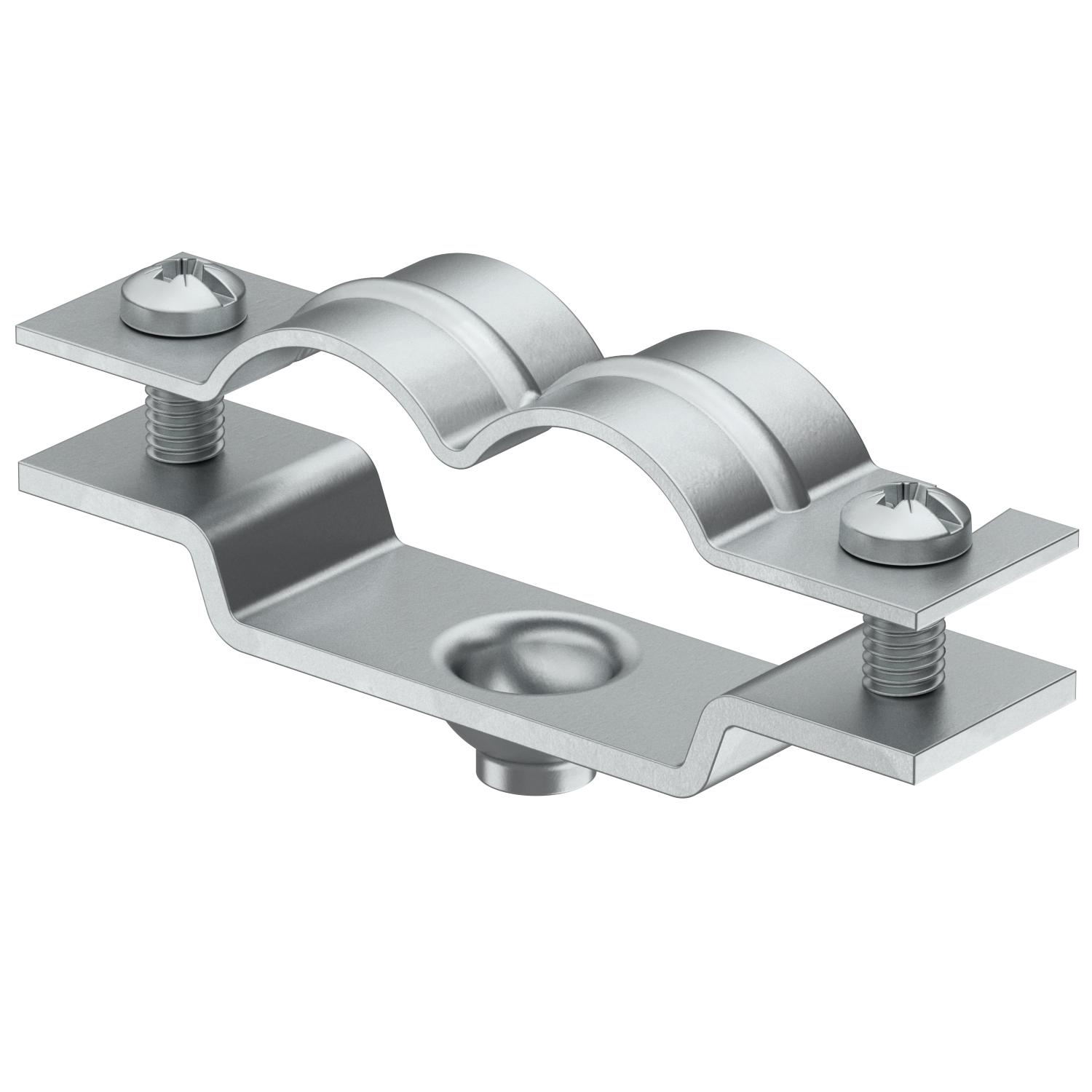

Product graphic 705 D M6 / 1371207, 88.15 kB, jpg

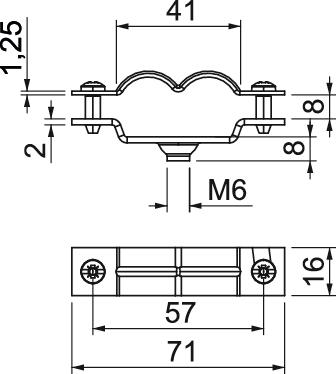

Scale drawing 705 D M6 / 1371207, 18.53 kB, jpg

705 D M6 / 1371207
