Screw-in spacer clip, heavy-duty version M10

Item no. / Types

Hole size	M10 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Can be screwed onto M10 thread. Size 27 FT is suitable for M25. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.

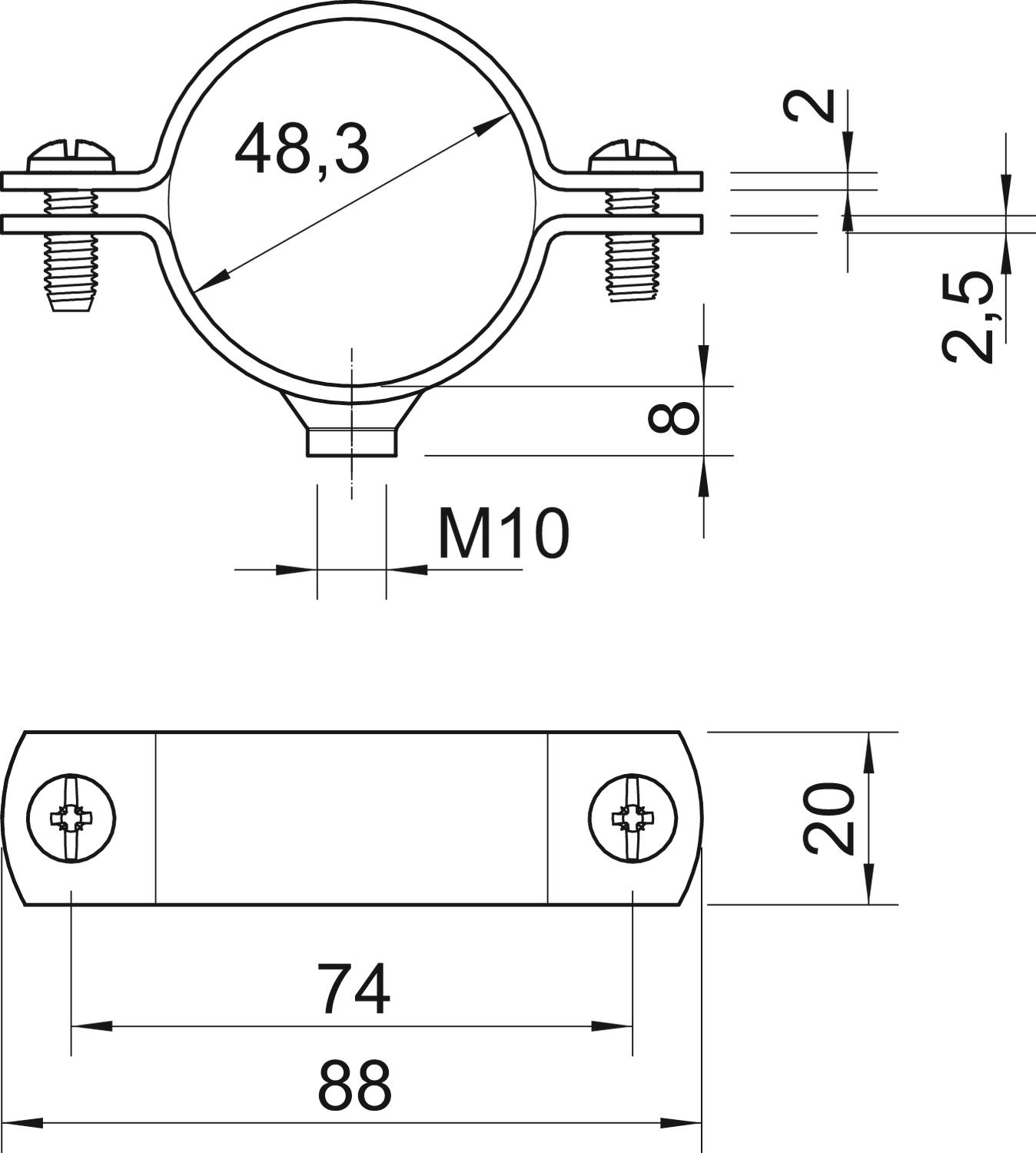

Technical data

Material	Steel
Nominal diameter	48,3 mm
Plastic-covered	no
Size	1 1/2"
Suitable in fire protection area	no
Surface	Hot-dip galvanised
Thread	M10
UV-resistant	yes
Version for	Closed

All types

Types	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
2900WM10 21.5 FT	M10 mm	19 mm	21.5 mm	Steel	Hot-dip galvanised	1388037	piece	25 piece
2900WM10 27 FT	M10 mm	24.5 mm	27 mm	Steel	Hot-dip galvanised	1388053	piece	25 piece
2900WM10 33.5 FT	M10 mm	30.5 mm	33.5 mm	Steel	Hot-dip galvanised	1388061	piece	25 piece
2900WM10 48.5 FT	M10 mm	45.5 mm	48.5 mm	Steel	Hot-dip galvanised	1388118	piece	25 piece
2900WM10 60 FT	M10 mm	56 mm	60 mm	Steel	Hot-dip galvanised	1388134	piece	15 piece
