Screw-in spacer clip, heavy-duty version M6 2 | M6 | 12.5 | 13.5 | Steel | Hot-dip galvanised

Screw-in spacer clip, heavy-duty version M6

Item no. 1385003 | EAN 4012195122838

Item no. / Types

Material thickness

Hole size	M6 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

Can be screwed onto M6 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.

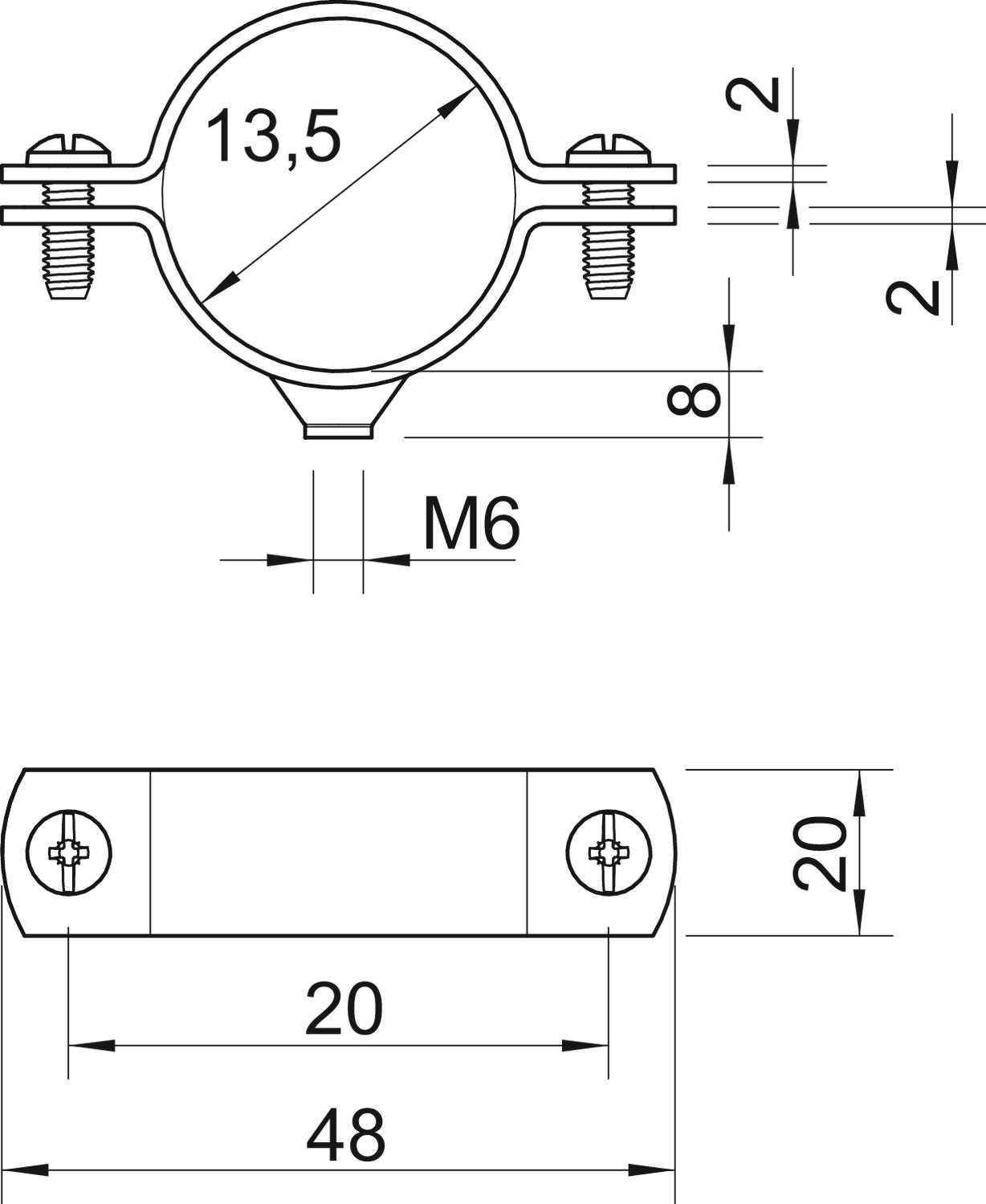

Technical data

Technical data

Bolt	M6 x 16
Clamping range D, max.	13,5 mm
Clamping range D, min.	12,5 mm
Dimension	1/4"
Dimension A	48 mm
Dimension B	32 mm
Dimension D	13,5 mm
Dimension d min.	13,5 mm
Dimension t	2 mm
Dimension t1 (mm)	2
Dimension x	1 mm
Fastening type	Screw hole
For diameter	13,5
Halogen-free	no

Hole size	M6 mm
Length	48 mm
Material	Steel
Material thickness	2 mm
Nominal diameter	13,5 mm
Plastic-covered	no
Size	1/4"
Suitable in fire protection area	no
Surface	Hot-dip galvanised
Thread	M6
UV-resistant	yes
Version for	Closed
Width	20 mm

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
2900WM6 13.5 FT	2 mm	M6 mm	12.5 mm	13.5 mm	Steel	Hot-dip galvanised	1385003	piece	25 piece
2900WM6 17 FT	2 mm	M6 mm	16 mm	17 mm	Steel	Hot-dip galvanised	1385011	piece	25 piece
2900WM6 21.5 FT	2 mm	M6 mm	19 mm	21.5 mm	Steel	Hot-dip galvanised	1385038	piece	25 piece
2900WM6 27 FT	2 mm	M6 mm	24.5 mm	27 mm	Steel	Hot-dip galvanised	1385054	piece	25 piece
2900WM6 33.5 FT	2 mm	M6 mm	30.5 mm	33.5 mm	Steel	Hot-dip galvanised	1385062	piece	25 piece
2900WM6 42.5 FT	2 mm	M6 mm	39.5 mm	42.5 mm	Steel	Hot-dip galvanised	1385089	piece	25 piece
2900WM6 48.5 FT	2.5 mm	M6 mm	45.5 mm	48.5 mm	Steel	Hot-dip galvanised	1385119	piece	25 piece
2900WM6 54 FT	2.5 mm	M6 mm	51 mm	54 mm	Steel	Hot-dip galvanised	1385127	piece	20 piece
2900WM6 60 FT	2.5 mm	M6 mm	56 mm	60 mm	Steel	Hot-dip galvanised	1385135	piece	15 piece
