- Product description
-
Product description
With thread M8.
- Technical data
-
Technical data

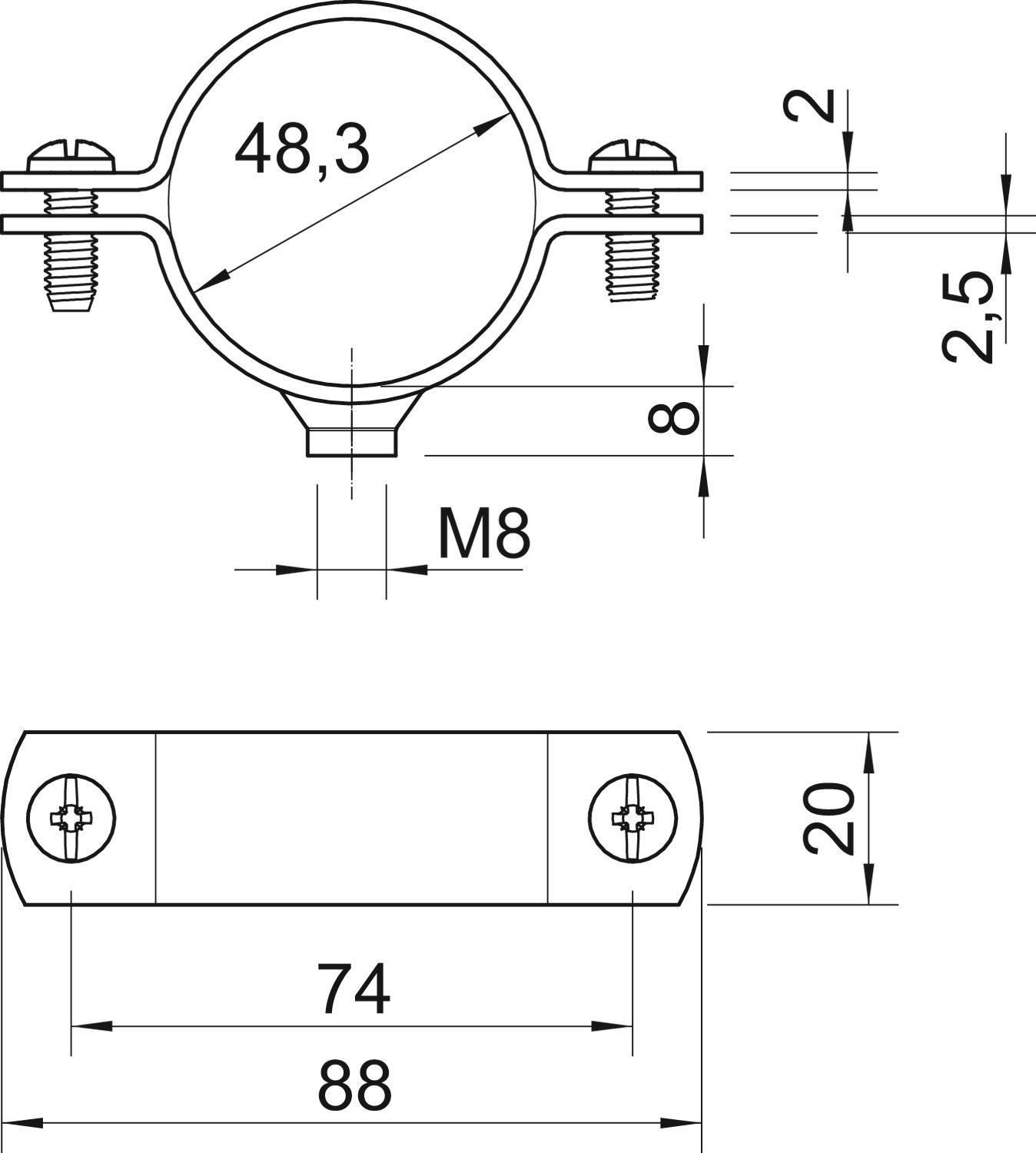

Bolt M6 x 18 Clamping range D, max. 48,5 mm Clamping range D, min. 45,5 mm Dimension 1 1/2" Dimension A 88 mm Dimension B 74 mm Dimension D 48,3 mm Dimension d min. 48,3 mm Dimension t 2 mm Dimension t1 (mm) 2,5 Dimension x 3 mm Fastening type Screw hole For diameter 48,5 for pipe diameter M50 Halogen-free no Hole size M8 mm Length 88 mm Material Steel Material thickness 2,5 mm Nominal diameter 48,3 mm Plastic-covered no Size 1 1/2" Suitable in fire protection area no Surface Hot-dip galvanised Thread M8 UV-resistant yes Version for Closed Width 20 mm - All types
-
All types
- Downloads
-
Data sheet 2900WM8 48.5 FT / 1387111 , 0.22MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2900WM8 48.5 FT / 1387111 , 0.13MB , pdf
