- Product description
-
Product description

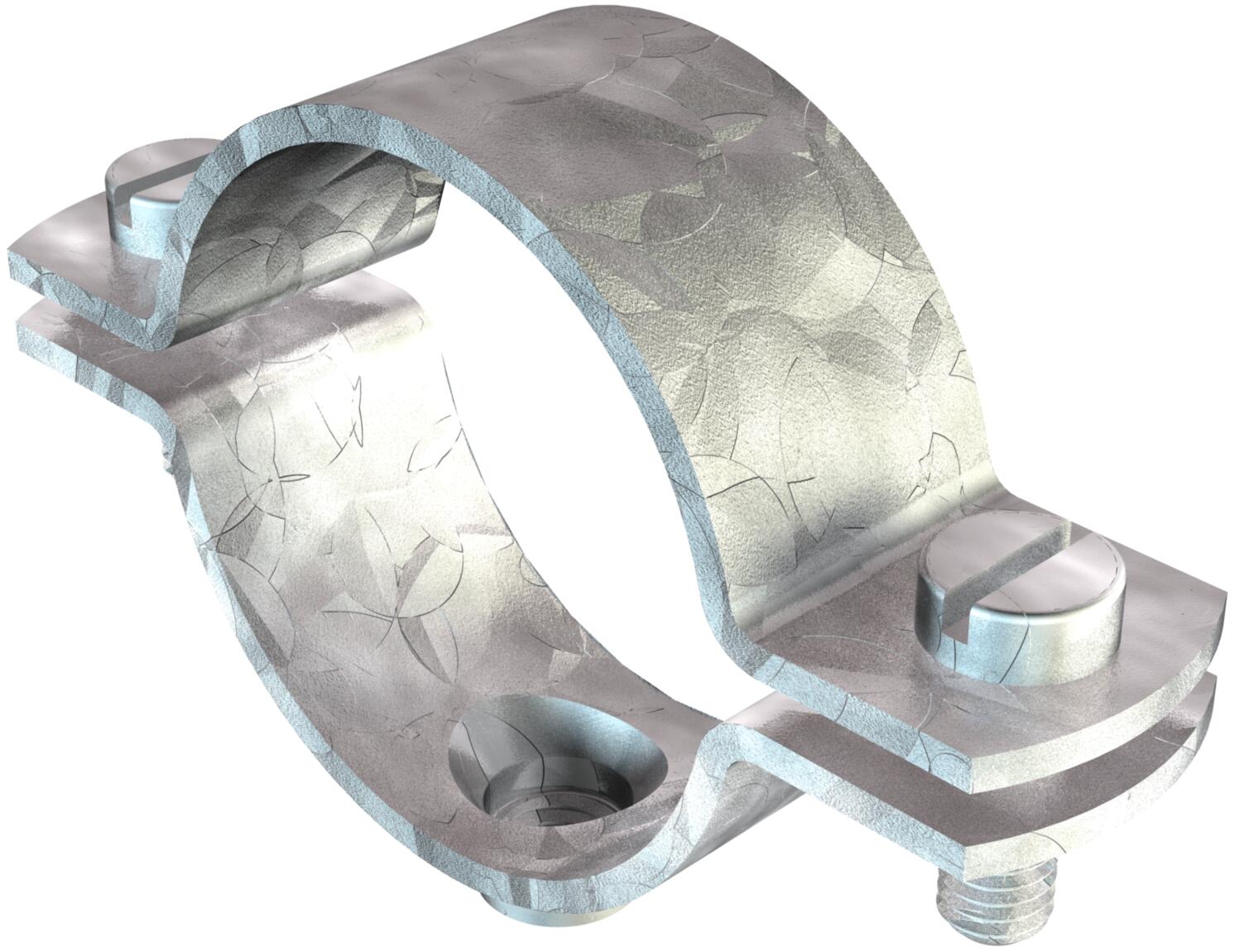

Can be screwed onto M8 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.
-
- Technical data
-
Technical data
Bolt M6 x 16 Clamping range D, max. 17 mm Clamping range D, min. 16 mm Dimension 3/8" Fastening type Screw hole For diameter 17 for pipe diameter M16 Halogen-free no Hole size M8 mm Material Steel Material thickness 2 mm Nominal diameter 17 mm Plastic-covered no Size 3/8" Suitable in fire protection area no Surface Hot-dip galvanised Thread M8 UV-resistant yes Version for Closed Dimensions

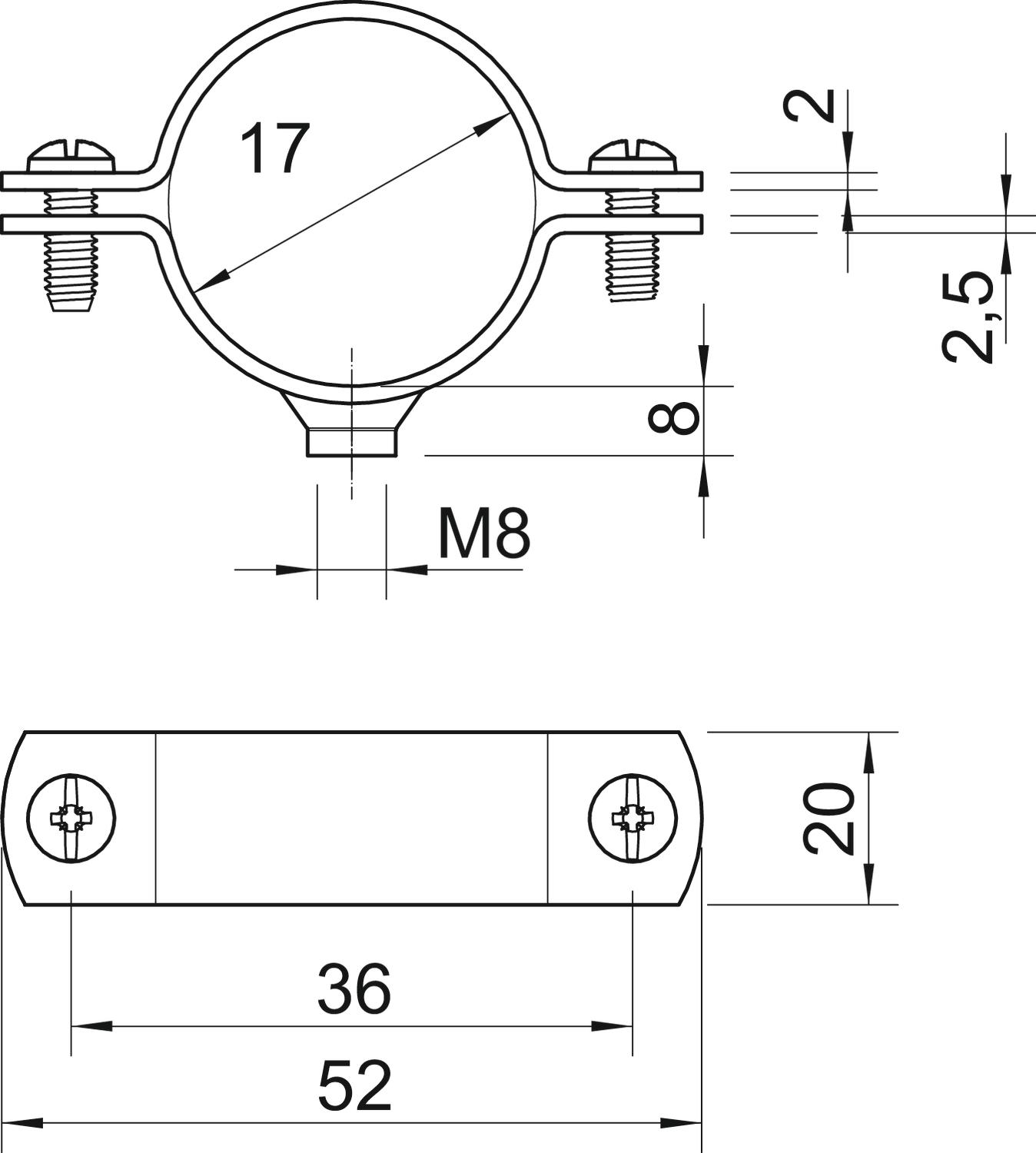

Dimension A 52 mm Dimension B 36 mm Dimension D 17 mm Dimension d min. 17 mm Dimension t 2 mm Dimension t1 (mm) 2,5 Dimension x 1 mm Length 52 mm Width 20 mm - All types
-
All types
- Downloads
-
Data sheet 2900WM8 17 FT / 1387014 , 0.25MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2900WM8 17 FT / 1387014 , 0.13MB , pdf
