Product description
Can be screwed onto M8 thread. Size 27 FT is suitable for M25. Size 42.5 FT is suitable for M40. Size 48.5 FT is suitable for M50. Size 60 FT is suitable for M63.
- Technical data
-
Technical data

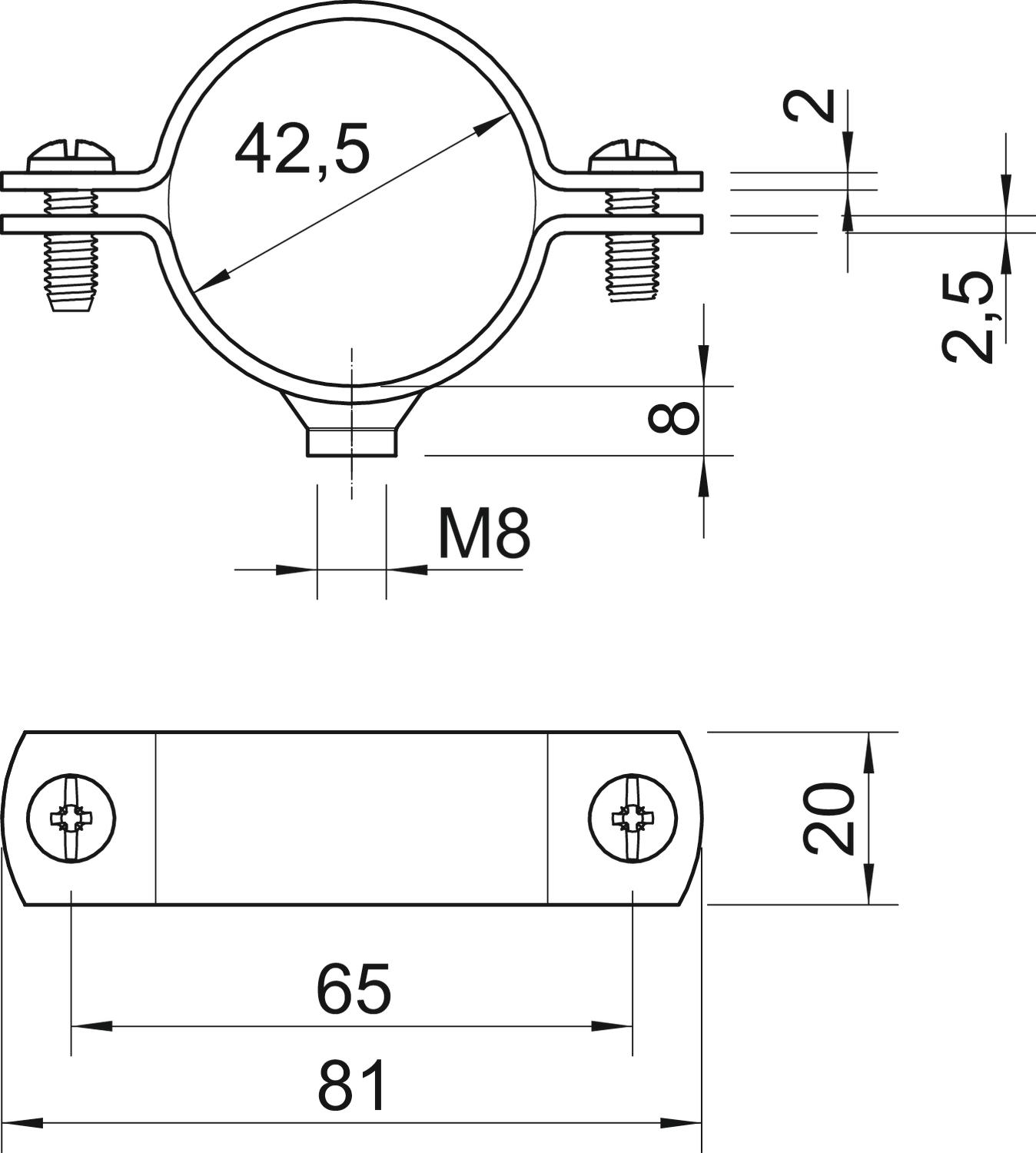

Bolt M6 x 18 Clamping range D, max. 42,5 mm Clamping range D, min. 39,5 mm Dimension 1 1/4" Dimension A 81 mm Dimension B 65 mm Dimension D 42,5 mm Dimension d min. 42,5 mm Dimension t 2 mm Dimension t1 (mm) 2,5 Dimension x 3 mm Fastening type Screw hole For diameter 42,5 for pipe diameter M40 Halogen-free no Hole size M8 mm Length 81 mm Material Steel Material thickness 2 mm Nominal diameter 42,5 mm Plastic-covered no Size 1 1/4" Suitable in fire protection area no Surface Hot-dip galvanised Thread M8 UV-resistant yes Version for Closed Width 20 mm - All types
-
All types
- Downloads
-
Data sheet 2900WM8 42.5 FT / 1387081 , 0.25MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2900WM8 42.5 FT / 1387081 , 0.13MB , pdf
