Screw-in spacer clip, universal

Item no. 1380028 | EAN 4012195120735

Item no. / Types

Material thickness

Hole size	M6 mm

Clamping range D, min.

Clamping range D, max.

Material	Steel

Surface	Electrogalvanized

Product description

Product description

With M6 thread.
Universal clip with large tensioning area.

Technical data

Technical data

Bolt	M5 x 16
Clamping range D, max.	20 mm
Clamping range D, min.	12 mm
Dimension	12-20mm
Dimension A	48 mm
Dimension b	14 mm
Dimension B	35 mm
Dimension D	20 mm
Dimension d min.	20 mm
Dimension H	9 mm
Dimension L	48 mm
Dimension t1 (mm)	1,5
Dimension t2 (mm)	1,5

Dimension x	9 mm
Fastening type	Screw hole
Halogen-free	no
Hole size	M6 mm
Length	48 mm
Material	Steel
Material thickness	1,5 mm
Plastic-covered	no
Suitable in fire protection area	no
Surface	Electrogalvanized
UV-resistant	yes
Version for	Closed
Width	14 mm

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
2070 M6 G	1.5 mm	M6 mm	12 mm	20 mm	Steel	Electrogalvanized	1380028	piece	50 piece
2071 M6 G	1.5 mm	M6 mm	20 mm	30 mm	Steel	Electrogalvanized	1380222	piece	50 piece
2072 M6 G	2 mm	M6 mm	30 mm	44 mm	Steel	Electrogalvanized	1380427	piece	25 piece
2073 M6 G	2 mm	M6 mm	44 mm	60 mm	Steel	Electrogalvanized	1380729	piece	20 piece

Downloads

Data sheet 2070 M6 G / 1380028 , 0.23MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

Declaration of conformity 2070 M6 G / 1380028 , 0.13MB , pdf

Product graphic 2070 M6 G / 1380028, 140.49 kB, jpg

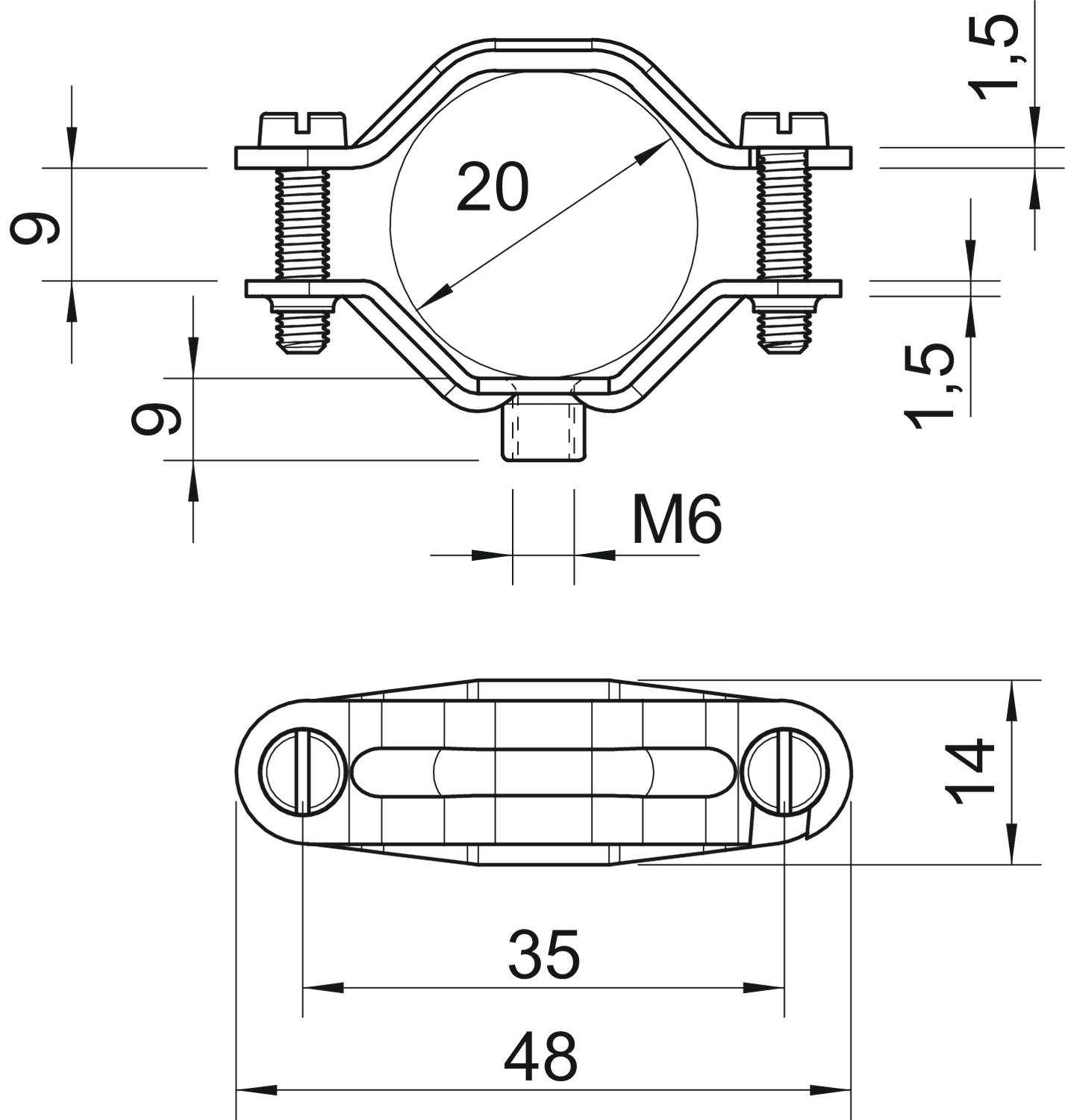

Scale drawing 2070 M6 G / 1380028, 116.72 kB, jpg

2070 M6 G / 1380028

1380028_KSTP1.stp, 506.84 kB
