- Product description
-
Product description
With M6 thread.
- Technical data
-
Technical data

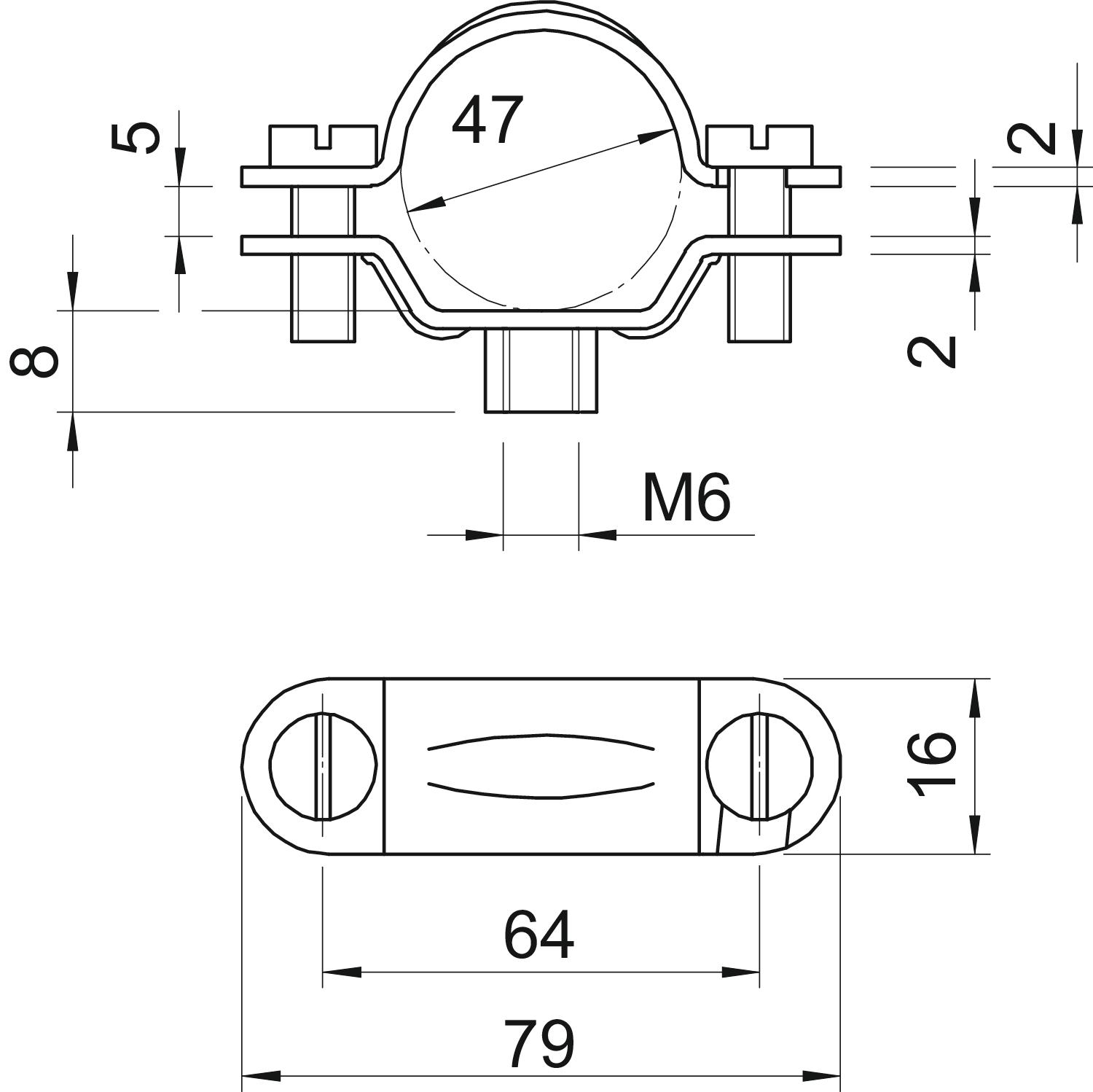

Bolt M5 x 14 Clamping range D, max. 48 mm Clamping range D, min. 43 mm Dimension 43-48mm Dimension A 79 mm Dimension B 64 mm Dimension b 16 mm Dimension D 47 mm Dimension d min. 47 mm Dimension H 8 mm Dimension L 79 mm Dimension t1 (mm) 2 Dimension t2 (mm) 2 Dimension x 5 mm Fastening type Screw hole Halogen-free no Hole size M6 mm Length 79 mm Material Steel Material thickness 2 mm Nominal diameter 47 mm Plastic-covered no Size Pg 36 Surface Electrogalvanized UV-resistant yes Version for Closed Width 16 mm - All types
-
All types
- Downloads
-
Data sheet 2900 M6 43-48 G / 1383361 , 0.23MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 2900 M6 43-48 G / 1383361 , 0.13MB , pdf
