Screw-in support clamp, with pipe seat 31 | 44 | 105 | 36 | 40 | 2 | 16 | | 0.45 |
morepic-1 morepic-2

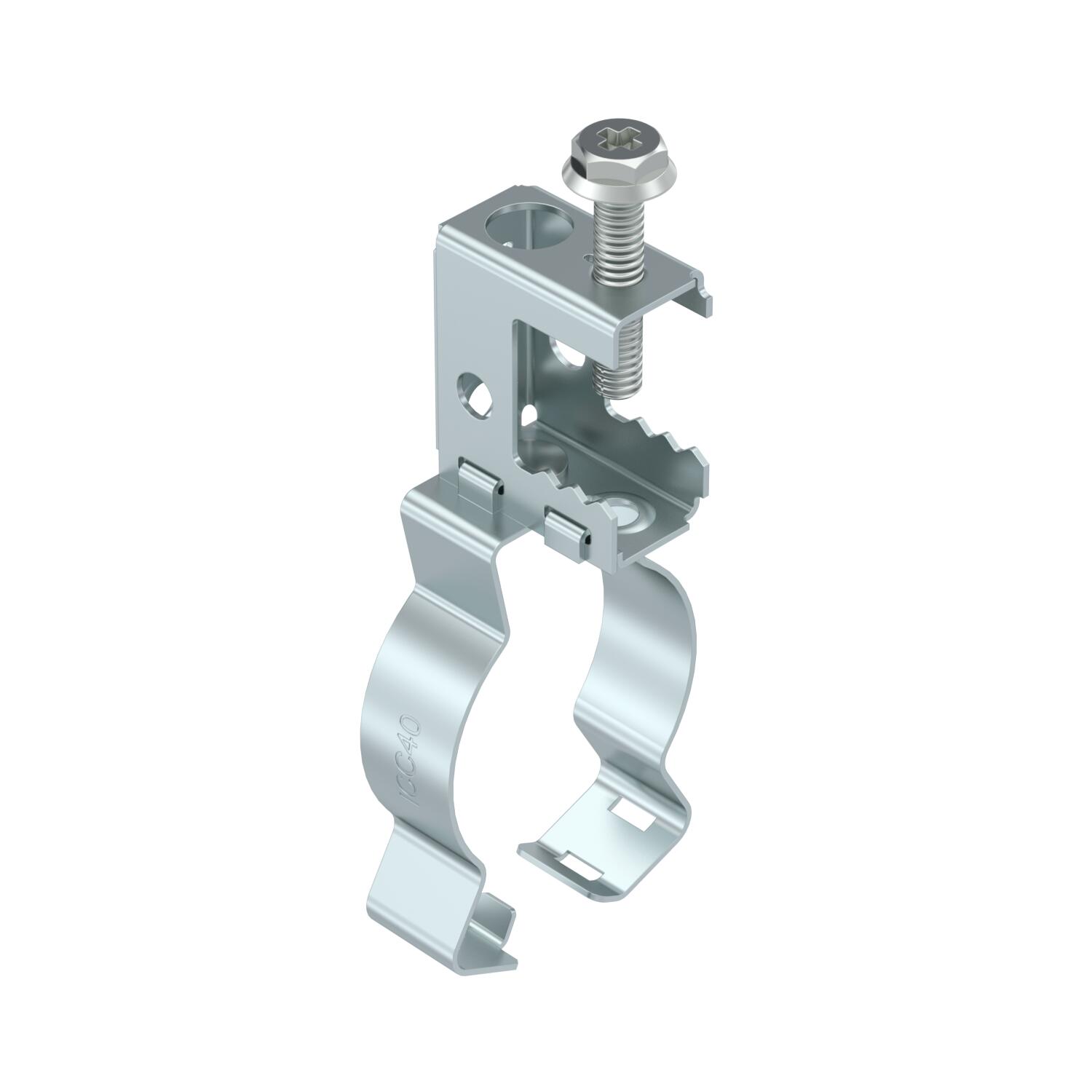

Screw-in support clamp, with pipe seat

Item no. 1488595 | EAN 4012197392024

31 mm
2 mm
16 mm
0.45 kN
Product description
Product description
Screw-in support clamp for mounting pipes and cables. Closed pipe seat at bottom. Fastening on steel girders by screwing on.
  • Communautés Européennes, EC declaration of conformity according to EC directives

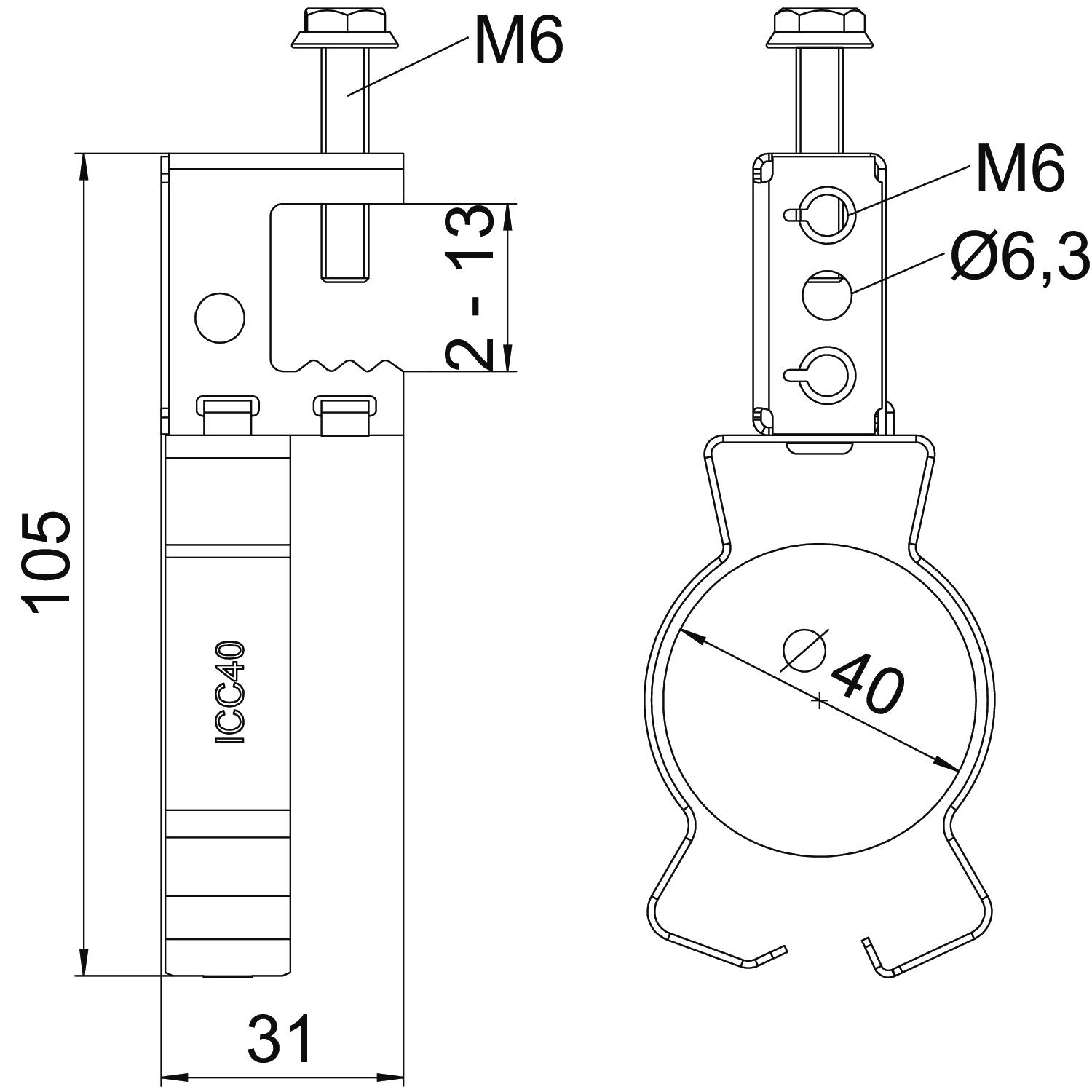

Technical data

Technical data

Breaking load 0,45 kN
Connection type/component Pipe/cable
Dimension 2-13mm
Dimension D 40 mm
Dimension H 105 mm
Fastening type Clamp
Flange thickness F max. 16 mm
Flange thickness F min. 2 mm
Height 105 mm
Hinge, adjustable no
Hinged yes
Length 31 mm
Material Steel
Pipe/cable diameter, max. 40 mm
Pipe/cable diameter, min. 36 mm
Surface Zinc slat
Width 44 mm
All types

All types

Types Length Width Height Pipe/cable diameter, min. Pipe/cable diameter, max. Flange thickness F min. Flange thickness F max. Breaking load Item no. Quantity SSU
SKS 213 D20/25 31 mm 40 mm 84 mm 20 mm 25 mm 2 mm 16 mm 0.45 kN 1488591
50 piece
SKS 213 D32 31 mm 39 mm 93 mm 30 mm 32 mm 2 mm 16 mm 0.45 kN 1488593
50 piece
SKS 213 D40 31 mm 44 mm 105 mm 36 mm 40 mm 2 mm 16 mm 0.45 kN 1488595
50 piece
