Screw plug M20 x 1,5

morepic-1

morepic-2

Screw plug

Item no. 2033505 | EAN 4012195649311

Item no. / Types

Thread	M20 x 1,5

Product description

Product description

Locking screw with metric thread and sealing ring to close off unused cable glands.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	M20x1,5
Dimension D	24 mm
Dimension L	6 mm
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone dust	Without

For Ex zone gas	Without
Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Nominal thread size metric/PG	20
Thread	M20 x 1,5
Thread type	Metric

All types

All types

Types	Thread	Item no.	Quantity	SSU
108 M20 MD LGR	M20 x 1,5	2033505	piece	100 piece
108 M20 MD SW	M20 x 1,5	2033507	piece	100 piece

Downloads

Data sheet 108 M20 MD LGR / 2033505 , 0.19MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 108 M20 MD LGR / 2033505 , 0.05MB , pdf

Download

REACH Declaration of conformity 108 M20 MD LGR / 2033505 , 0.12MB , pdf

Download

RoHS Declaration of conformity 108 M20 MD LGR / 2033505 , 0.12MB , pdf

Download

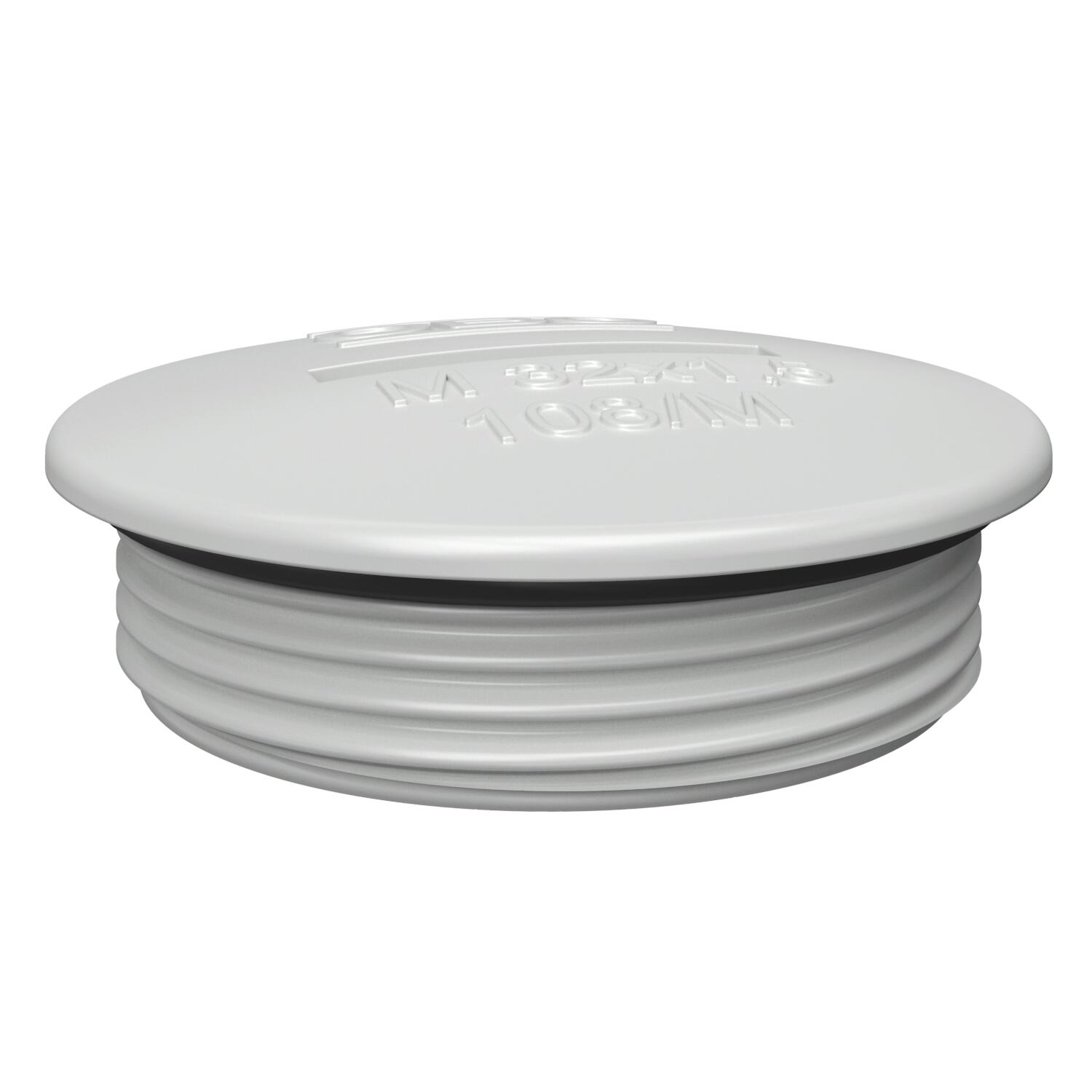

Product graphic 108 M20 MD LGR / 2033505, 57.23 kB, jpg

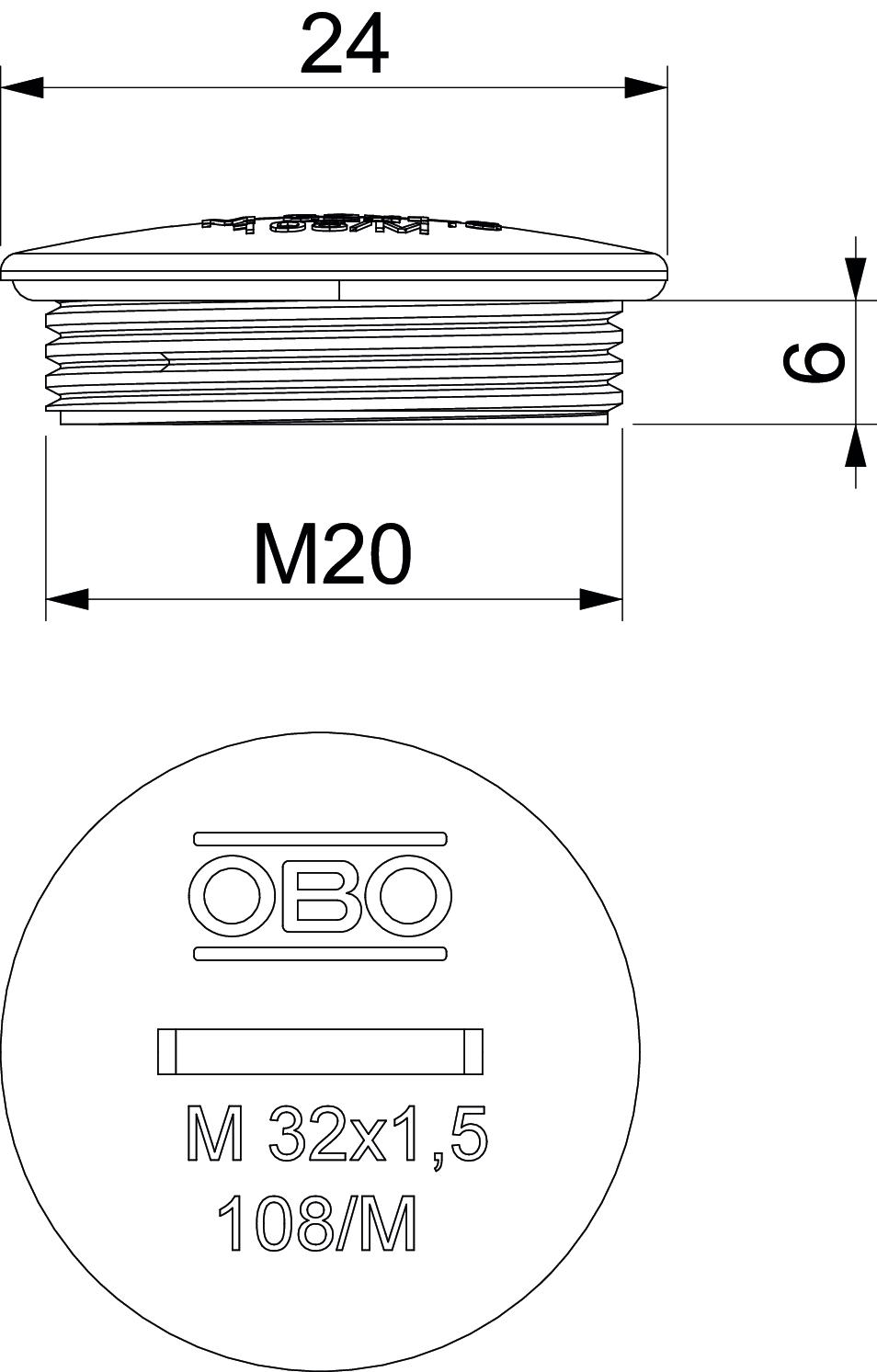

Scale drawing 108 M20 MD LGR / 2033505, 85.78 kB, jpg

108 M20 MD LGR / 2033505
