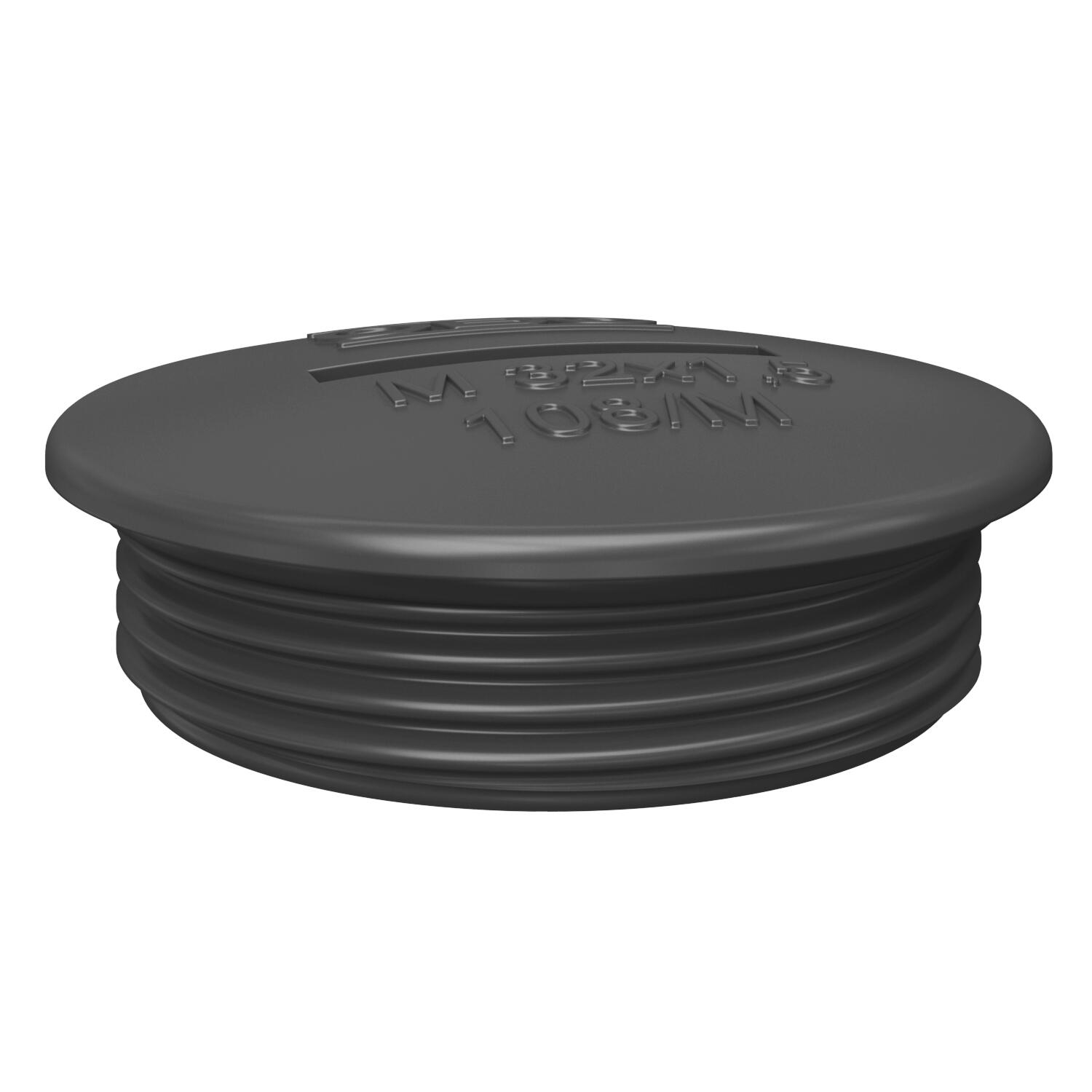

Screw plug M20 x 1,5

morepic-1

morepic-2

Screw plug

Item no. 2033507 | EAN 4012195991991

Item no. / Types

Thread	M20 x 1,5

Product description

Product description

Locking screw with metric thread and sealing ring to close off unused cable glands.

Technical data

Technical data

Colour	Jet black; RAL 9005
Dimension	M20x1,5
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone dust	Without
For Ex zone gas	Without

Halogen-free	yes
Impact-resistant	yes
Material	Polystyrene
Nominal thread size metric/PG	20
Thread	M20 x 1,5
Thread type	Metric

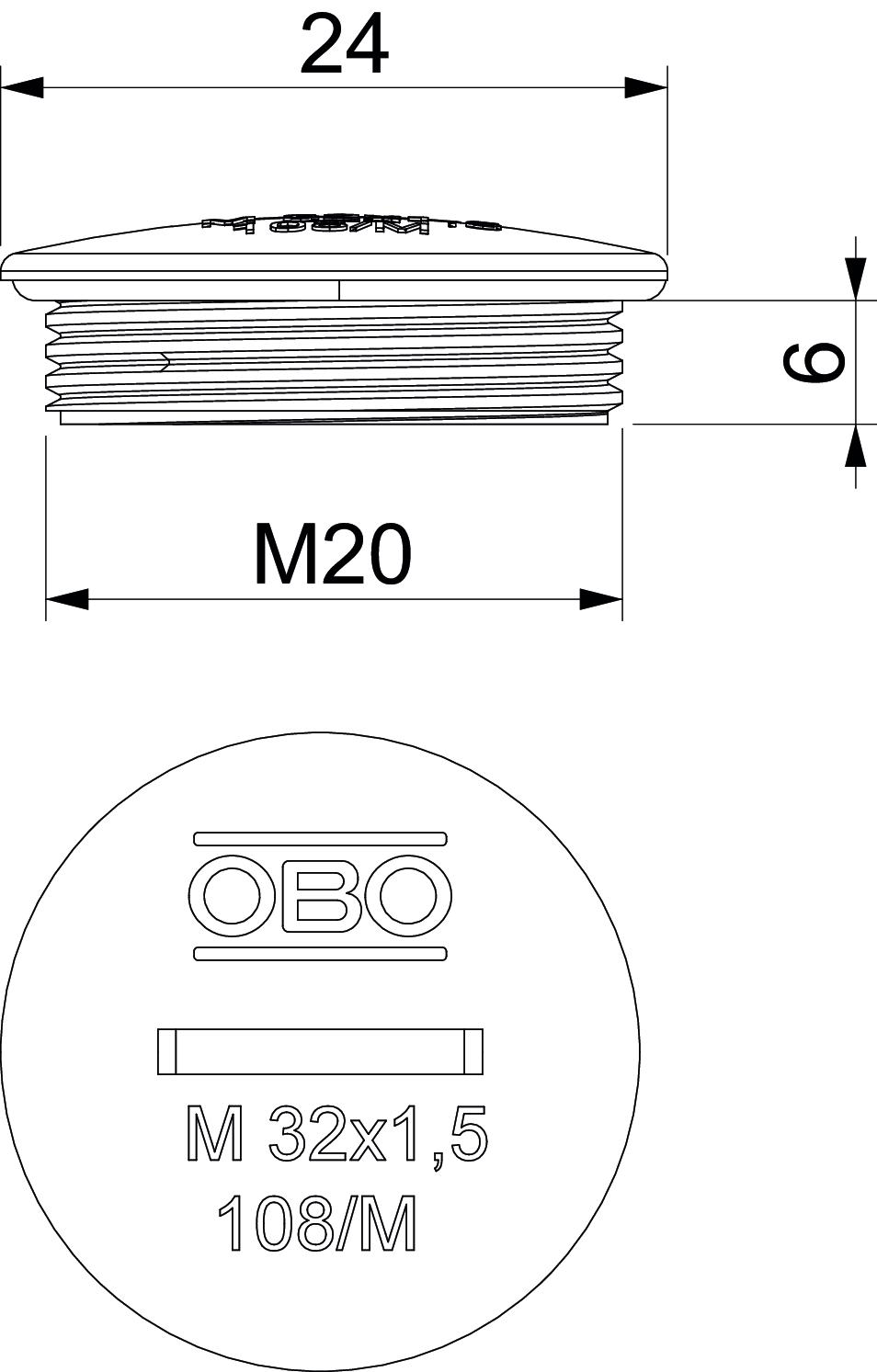

Dimensions

Dimension D	24 mm

Dimension L	6 mm

All types

All types

Types	Thread	Item no.	Quantity	SSU
108 M20 MD LGR	M20 x 1,5	2033505	piece	100 piece
108 M20 MD SW	M20 x 1,5	2033507	piece	100 piece
