Screw plug, metric and PG
Item no. 2029514 | EAN 4012195389941
- Product description
-

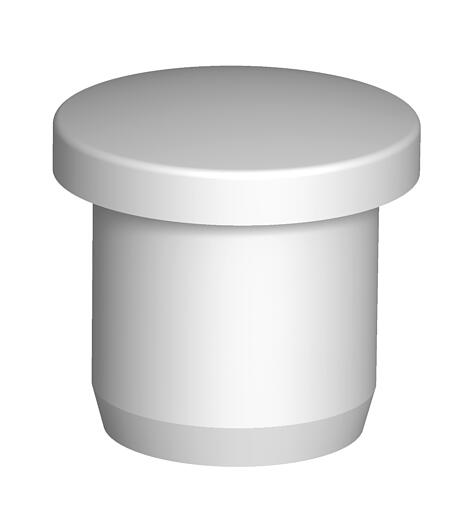

Product descriptionScrew plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.
-
- Technical data
-
Technical data

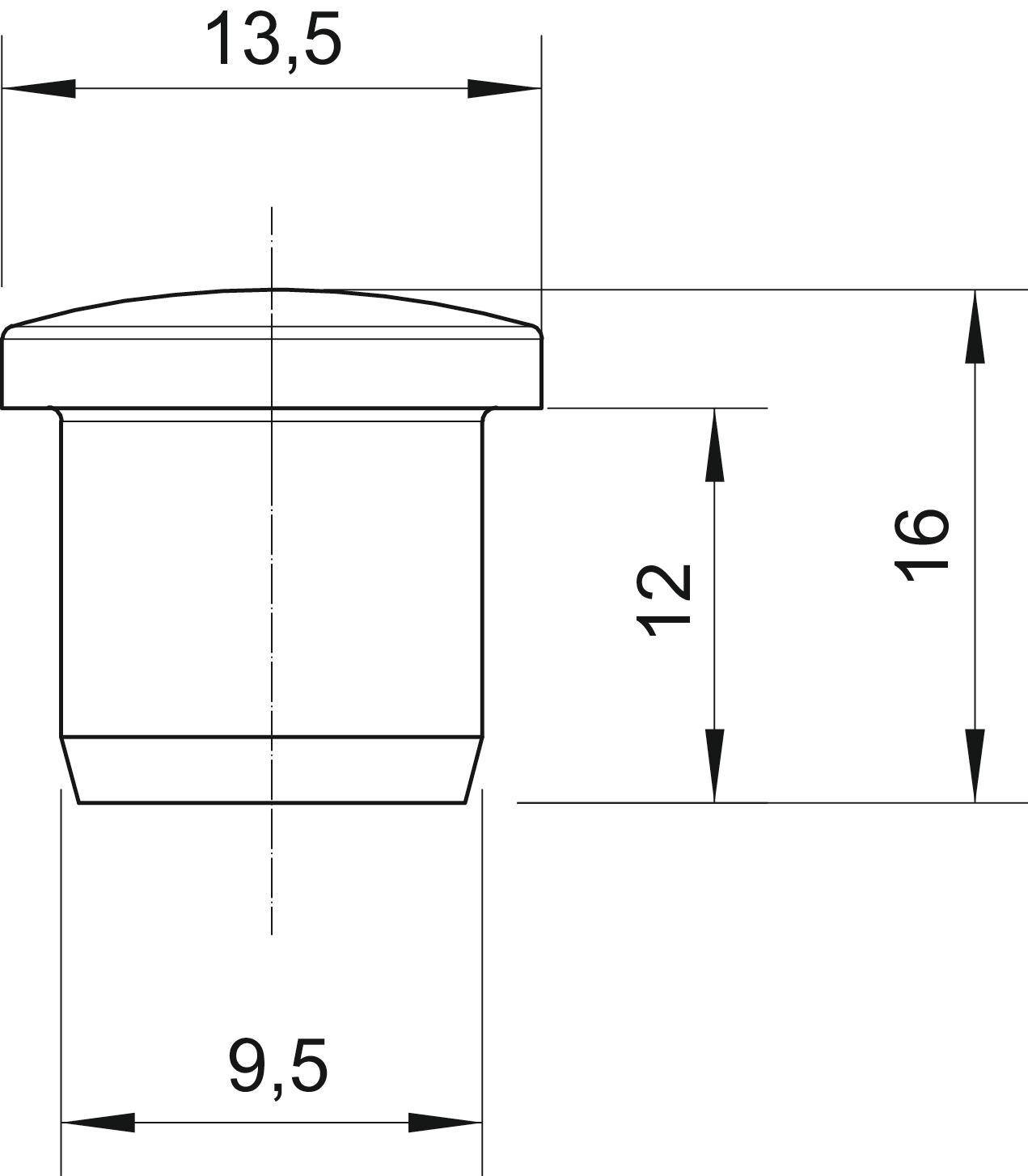

Colour Light grey; RAL 7035 Dimension 9,5mm Dimension D1 9,5 mm Dimension D2 13,5 mm Dimension H 16 mm Dimension L 12 mm explosion-proof no External diameter 13,5 mm Fibre-glass reinforced yes For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Inner diameter 9,5 mm Material Polyamide Nominal thread size metric/PG 16 Permitted temperature range, max. 100 °C Permitted temperature range, min. -40 °C Screw for PG thread dimension 13,5 Size M16 / Pg13,5 Suitable for metric thread dimension 16 Thread type Metric Version for Miscellaneous - All types
- Downloads
-
Data sheet 107VS VM 9 PA / 2029514 , 0.14MB , pdfREACH Declaration of conformity 107VS VM 9 PA / 2029514 , 0.12MB , pdfRoHS Declaration of conformity 107VS VM 9 PA / 2029514 , 0.12MB , pdf
