Screw plug, metric and PG

Item no. 2029529 | EAN 4012196117512

Product description

Product description

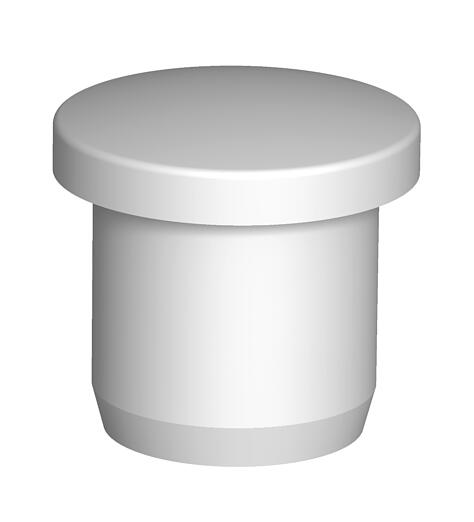

Screw plug in Light grey; RAL 7035 for dust-proof and waterproof closure of installed but (as yet) unfilled V-TEC... cable glands.
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Light grey; RAL 7035

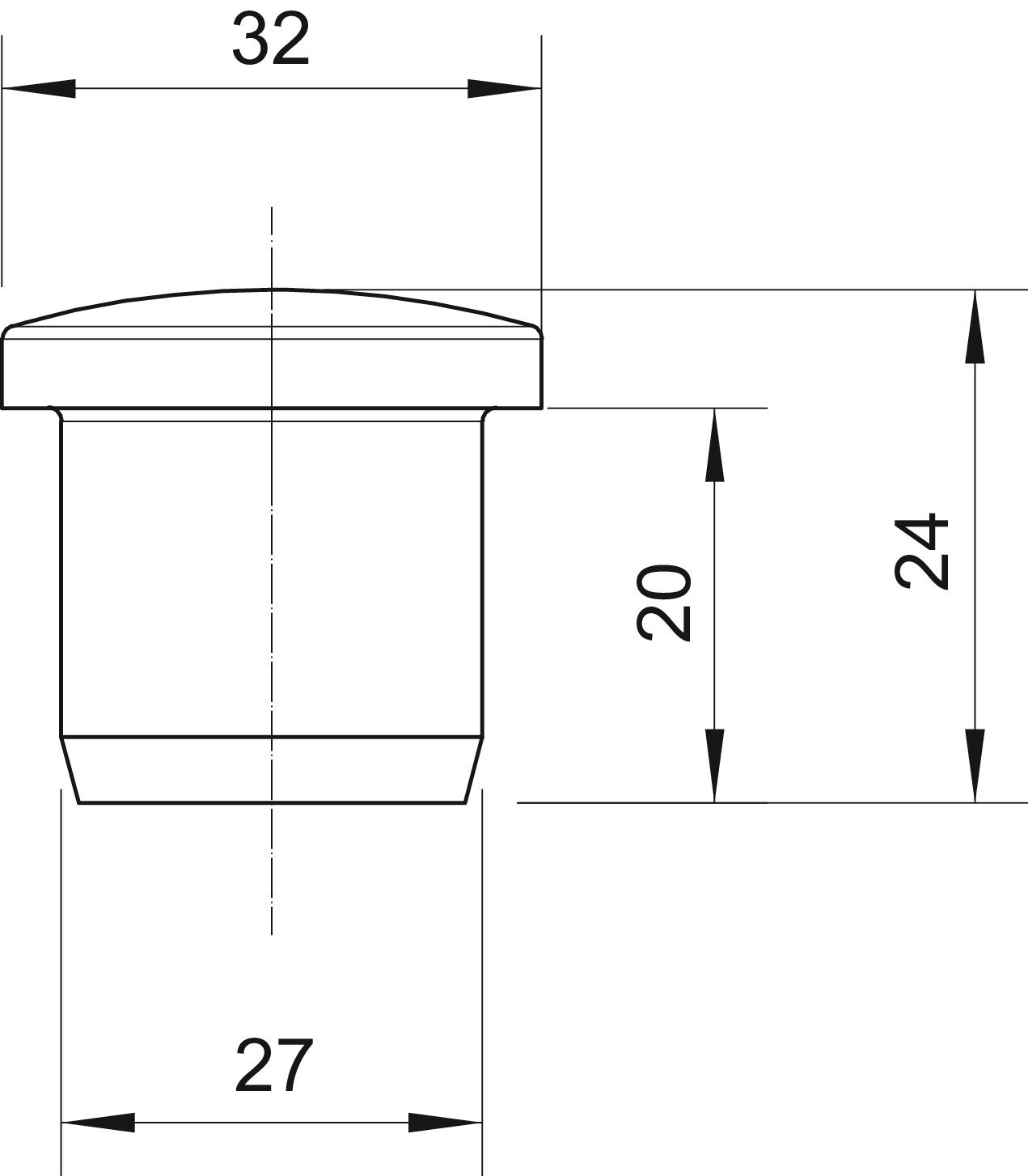

Dimension 27mm
Dimension D1 27 mm
Dimension D2 32 mm
Dimension H 24 mm
Dimension L 20 mm
External diameter 32 mm
Inner diameter 27 mm
Material Polyamide
Screw for PG thread dimension 36
Size M40 / Pg36
Suitable for metric thread dimension 40
Version for Miscellaneous
All types

All types

Types Suitable for metric thread dimension Screw for PG thread dimension Item no. Quantity SSU
107VS VM 5 PA 12 9 2029511
50 piece
107VS VM 9 PA 16 13.5 2029514
50 piece
107VS VM 12 PA 20 16 2029517
50 piece
107VS VM 16 PA 25 21 2029520
50 piece
107VS VM 20 PA 32 29 2029523
25 piece
107VS VM 27 PA 40 36 2029529
10 piece
107VS VM 35 PA 50 42 2029533
5 piece
