- Product description
-

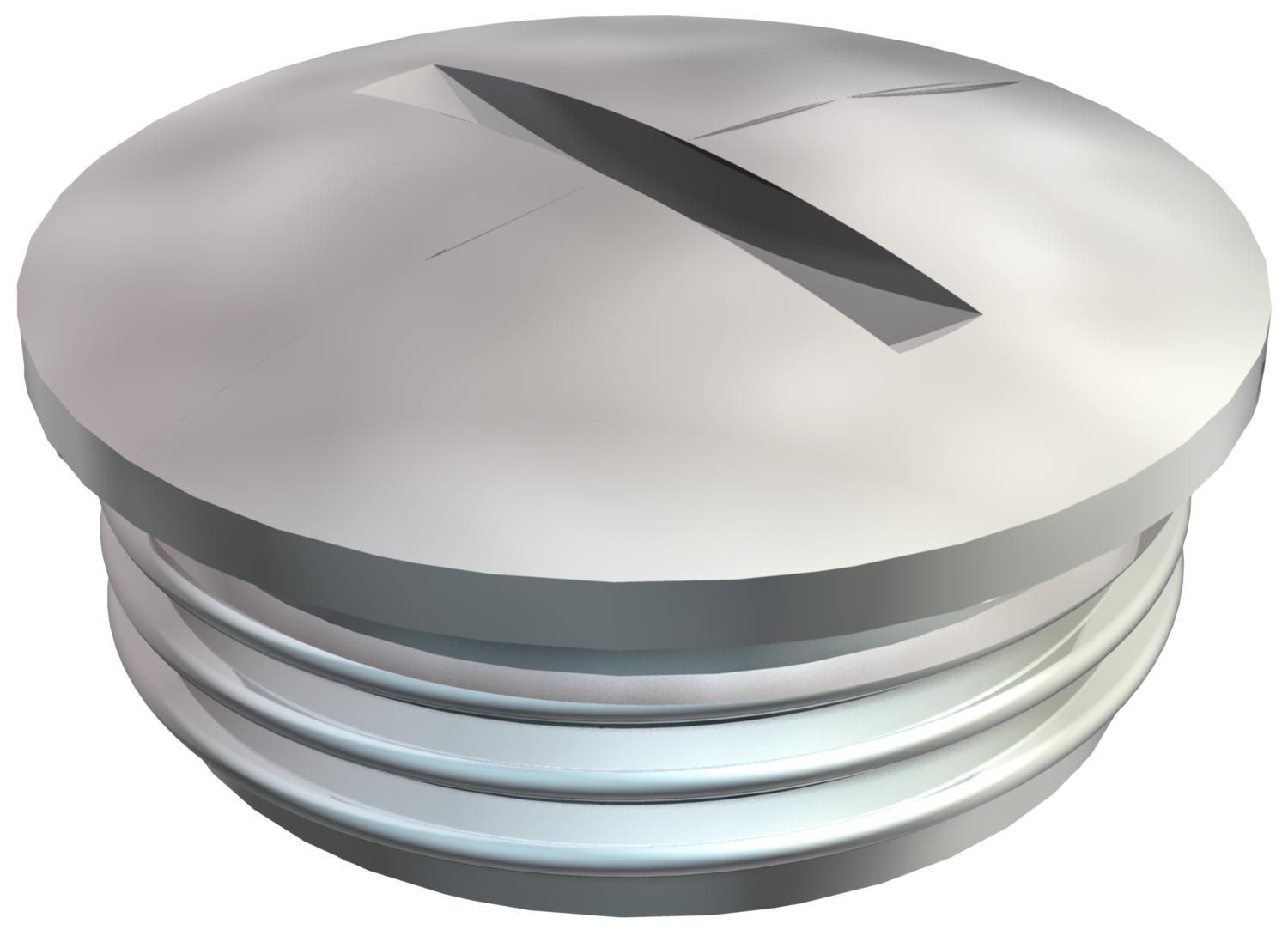

Product descriptionScrew plug N in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.
In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr).
Sealing ring not contained in the scope of delivery.
* Prices according to DEL notation.
- Technical data
-
Technical data

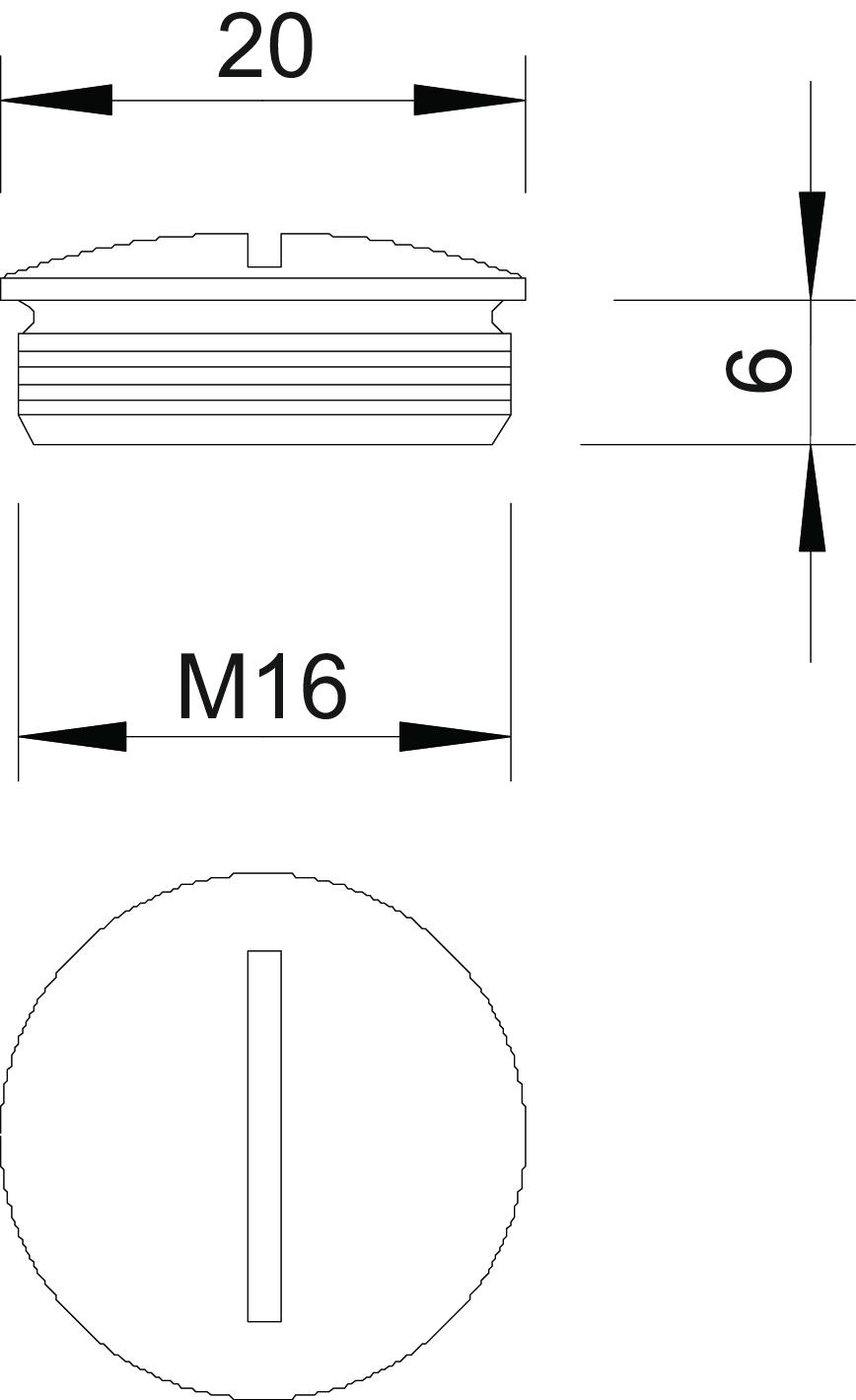

Dimension M16 Dimension D 18 mm Dimension L 6 mm explosion-proof no Fibre-glass reinforced no For Ex zone dust Without For Ex zone gas Without Halogen-free no Height 9 mm Impact-resistant no Length 18 mm Material Brass Nominal thread size metric/PG 16 Protection rating IP68 Surface Nickel-plated Thread M16 x 1,5 Thread increase 1,5 mm Thread type Metric Width 18 mm - All types
- Downloads
-
Data sheet 168 MS M16 / 2090538 , 0.20MB , pdfEU declaration of conformity 168 MS M16 / 2090538 , 0.13MB , pdfREACH Declaration of conformity 168 MS M16 / 2090538 , 0.12MB , pdfRoHS Declaration of conformity 168 MS M16 / 2090538 , 0.12MB , pdf
