Screw plug, metric thread M20 x 1,5
morepic-1 morepic-2

Screw plug, metric thread

Item no. 2033011 | EAN 4012195426554

Product description
Product description
Screw plug in accordance with DIN 46320, with metric thread to IEC 423.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035

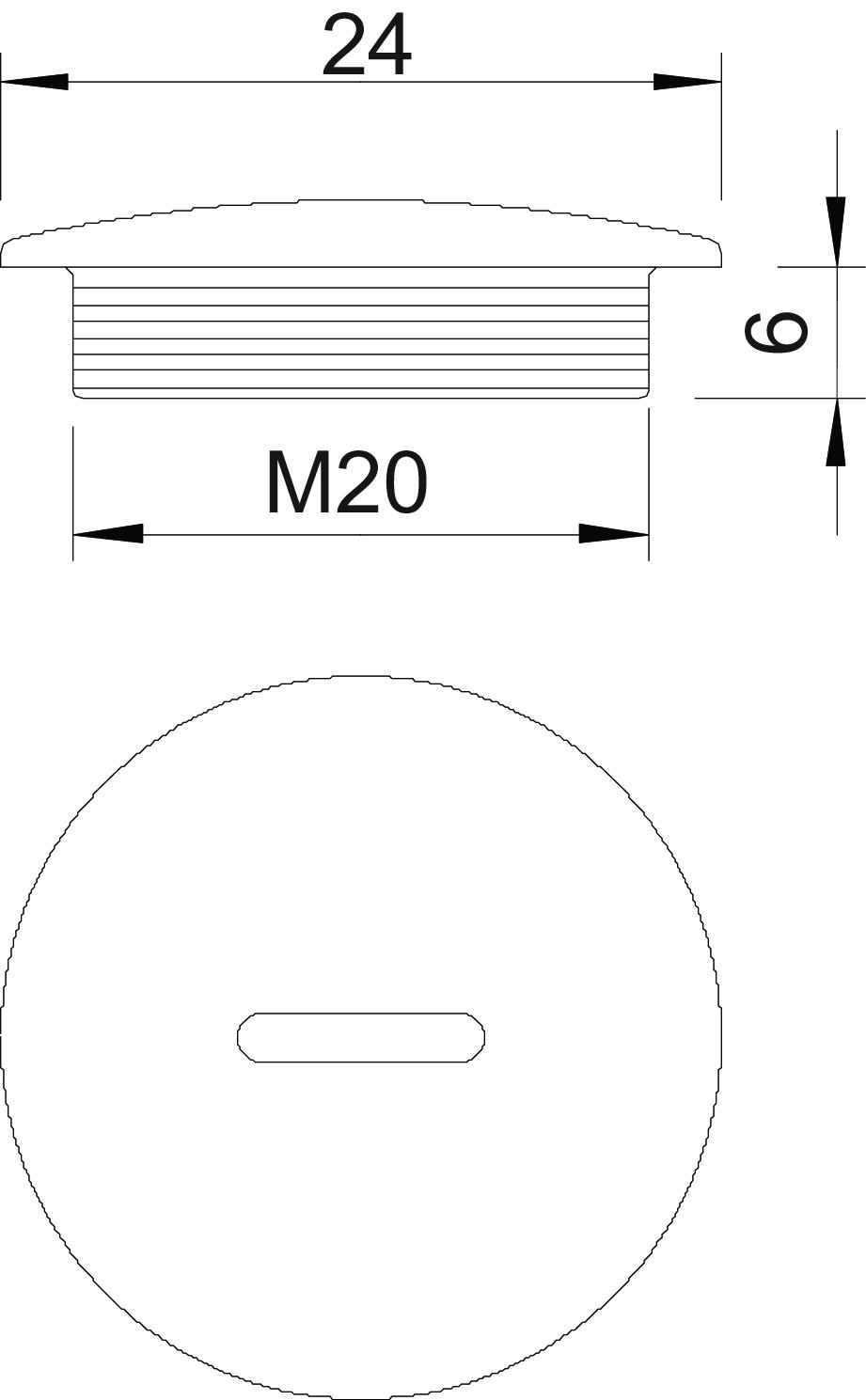

Dimension M20
Dimension D 24 mm
Dimension L 6 mm
explosion-proof no
Fibre-glass reinforced no
For Ex zone dust Without
For Ex zone gas Without
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal thread size metric/PG 20
Thread M20 x 1,5
Thread increase 1,5 mm
Thread type Metric
All types

All types

Types Thread Item no. Quantity SSU
108 M12 PS M12 x 1,5 2033003
100 piece
108 M16 PS M16 x 1,5 2033007
100 piece
108 M20 PS M20 x 1,5 2033011
100 piece
108 M25 PS M25 x 1,5 2033016
100 piece
108 M32 PS M32 x 1,5 2033021
50 piece
108 M40 PS M40 x 1,5 2033026
25 piece
108 M50 PS M50 x 1,5 2033032
25 piece
108 M63 PS M63 x 1,5 2033038
25 piece
Downloads

Download

Download

EU declaration of conformity 108 M20 PS / 2033011 , 0.05MB , pdf
Download
REACH Declaration of conformity 108 M20 PS / 2033011 , 0.09MB , pdf
Download
RoHS Declaration of conformity 108 M20 PS / 2033011 , 0.09MB , pdf
Download

108 M20 PS / 2033011
