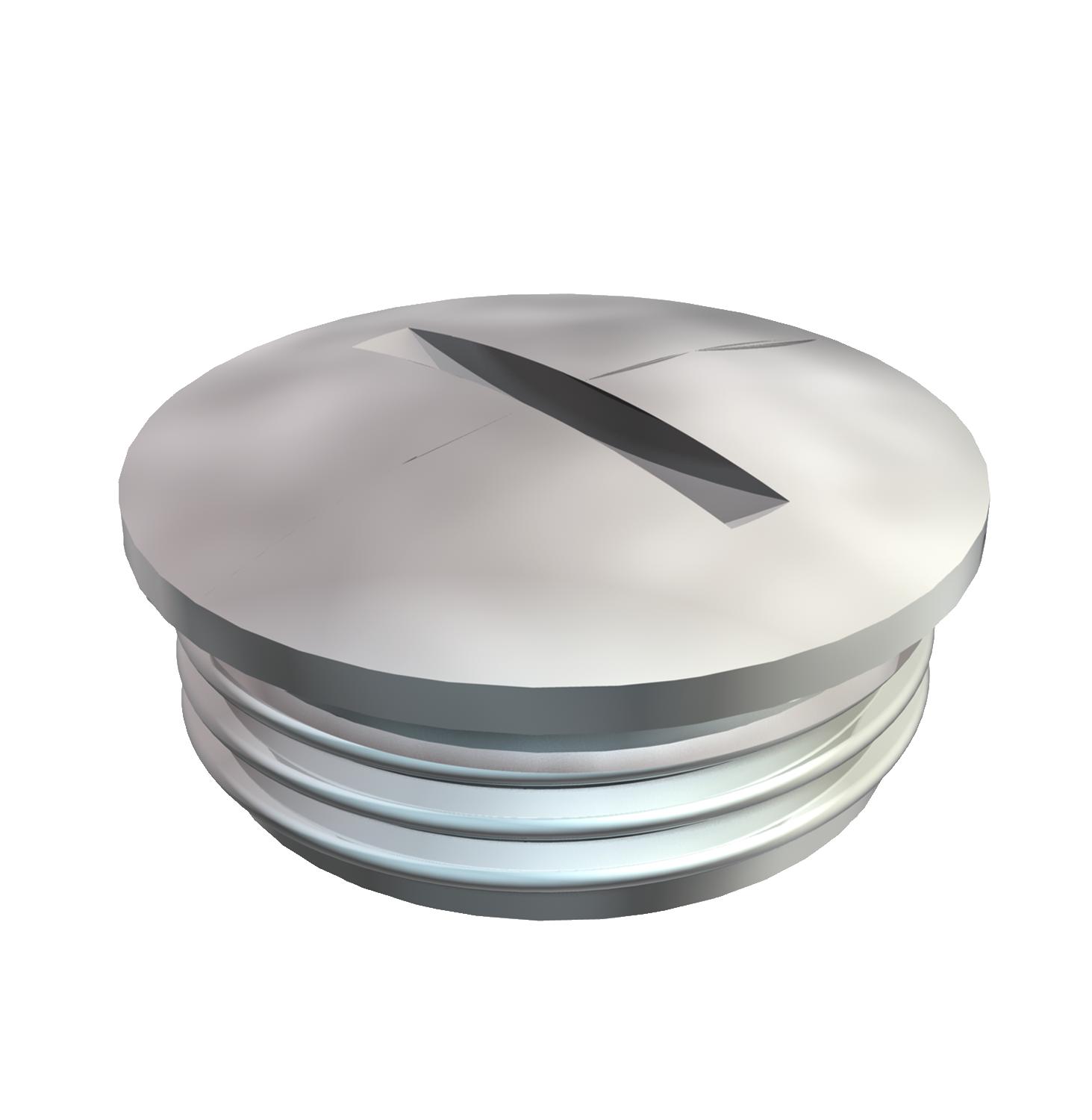

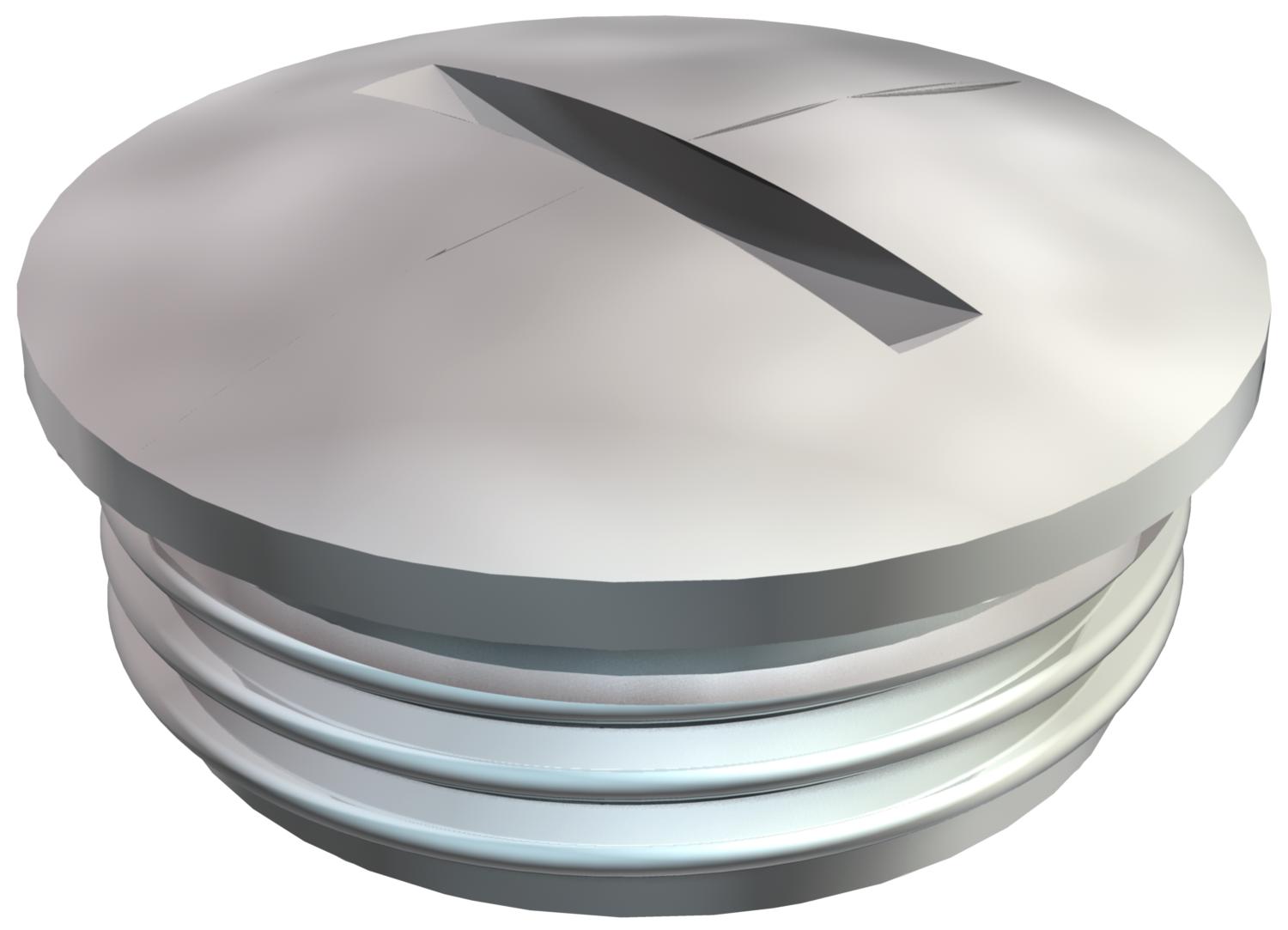

Screw plug, metric thread

Item no. 2090546 | EAN 4012195472810

Item no. / Types

Thread

Product description

Product description

Screw plug N in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.

In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr).

Sealing ring not contained in the scope of delivery.

* Prices according to DEL notation.

Technical data

Technical data

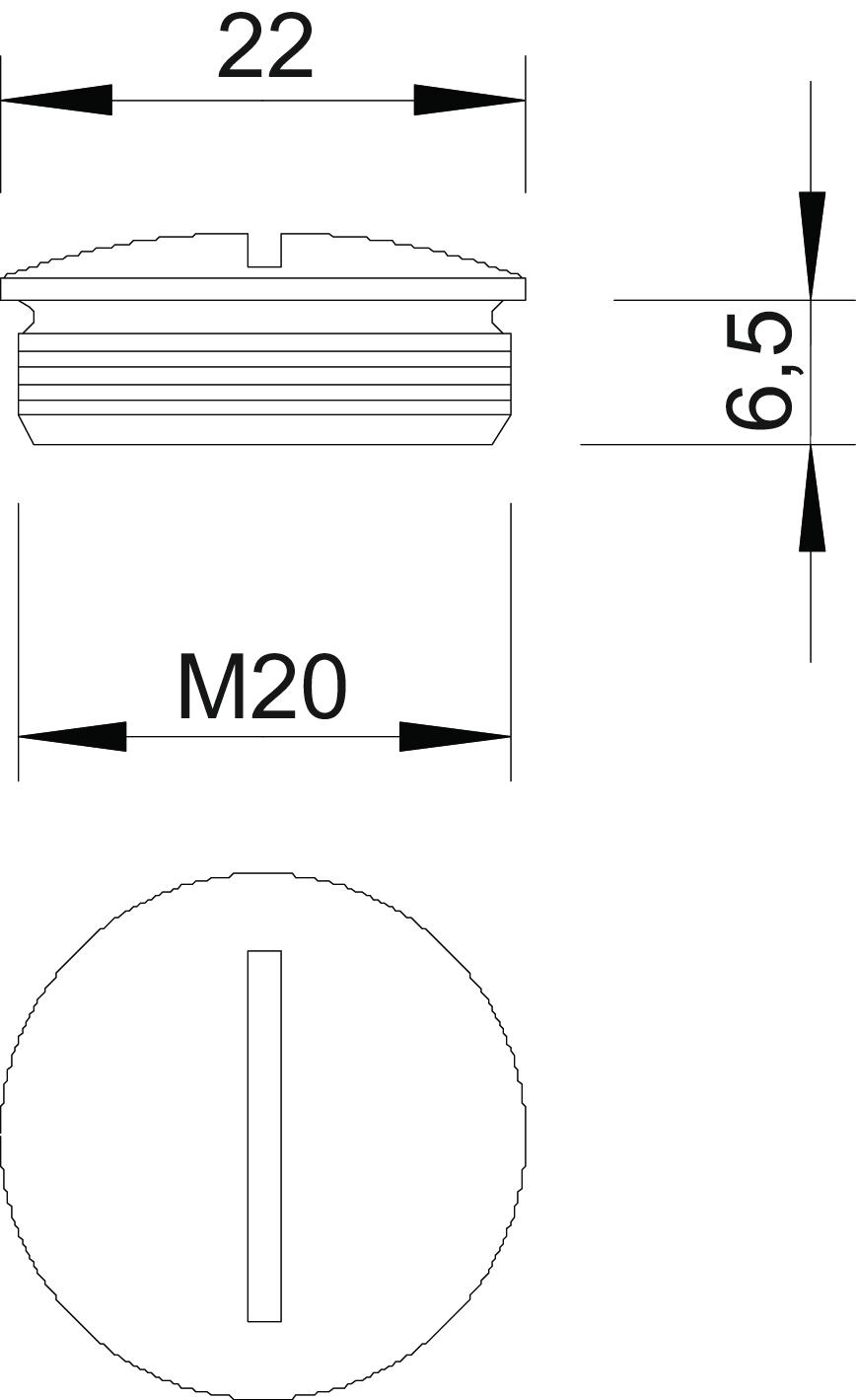

Dimension	M20
Dimension D	22 mm
Dimension L	6,5 mm
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	no
Height	9,5 mm
Impact-resistant	no

Length	22 mm
Material	Brass
Nominal thread size metric/PG	20
Protection rating	IP68
Surface	Nickel-plated
Thread	M20 x 1,5
Thread increase	1,5 mm
Thread type	Metric
Width	22 mm

All types

All types

Types	Thread	Item no.	Quantity	SSU
168 MS M12	M12 x 1,5	2090511	piece	100 piece
168 MS M16	M16 x 1,5	2090538	piece	100 piece
168 MS M20	M20 x 1,5	2090546	piece	100 piece
168 MS M25	M25 x 1,5	2090554	piece	50 piece
168 MS M32	M32 x 1,5	2090562	piece	50 piece
168 MS M40	M40 x 1,5	2090570	piece	50 piece
168 MS M50	M50 x 1,5	2090589	piece	25 piece
168 MS M63	M63 x 1,5	2090597	piece	25 piece
