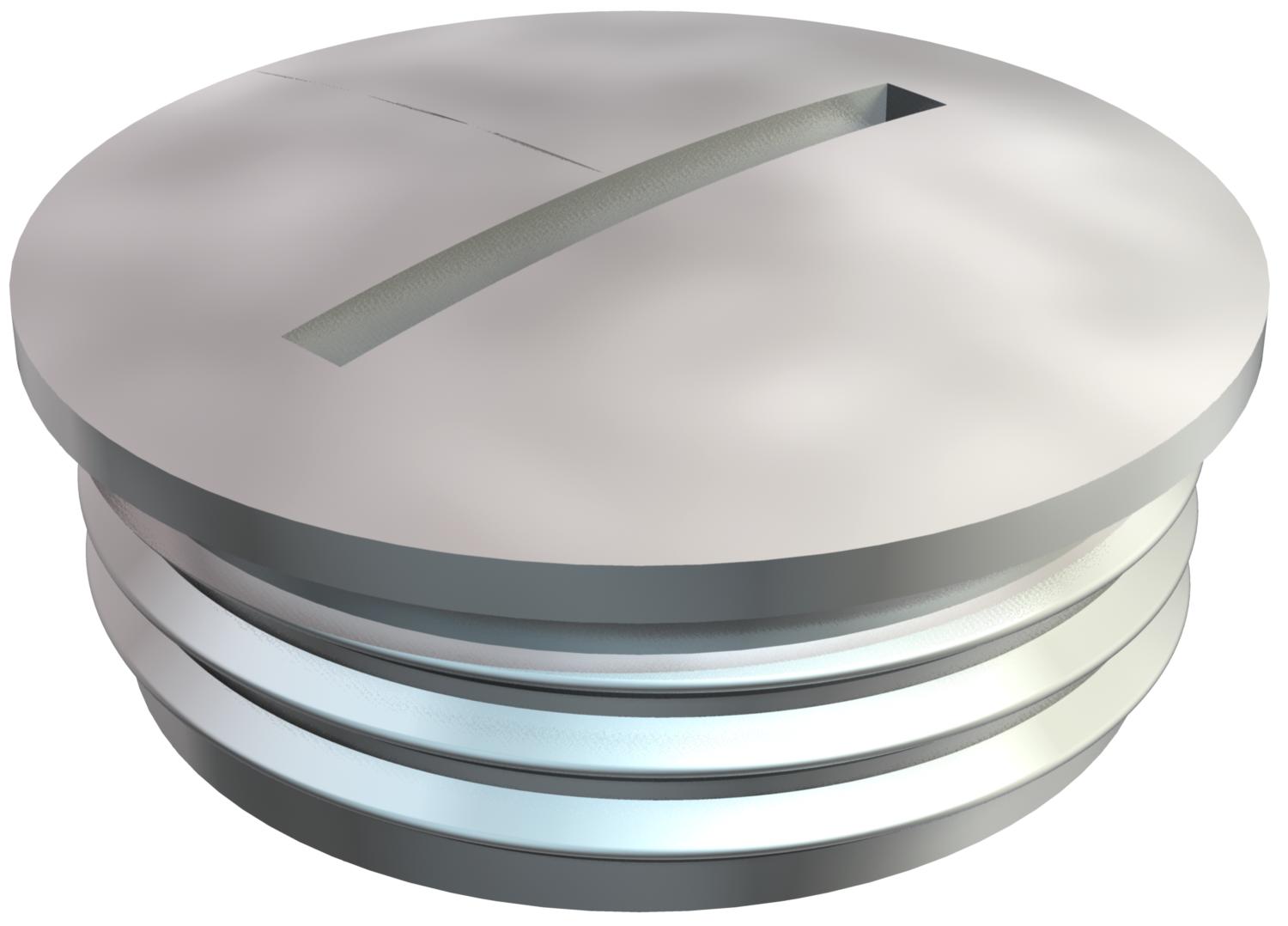

Screw plug, PG thread

Item no. 2090139 | EAN 4012195194118

Item no. / Types

Thread

Product description

Product description

Screw plug N in accordance with DIN 46320, with PG thread to DIN 40430.

In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr).

Sealing ring not contained in the scope of delivery.

* Prices according to DEL notation.

Technical data

Technical data

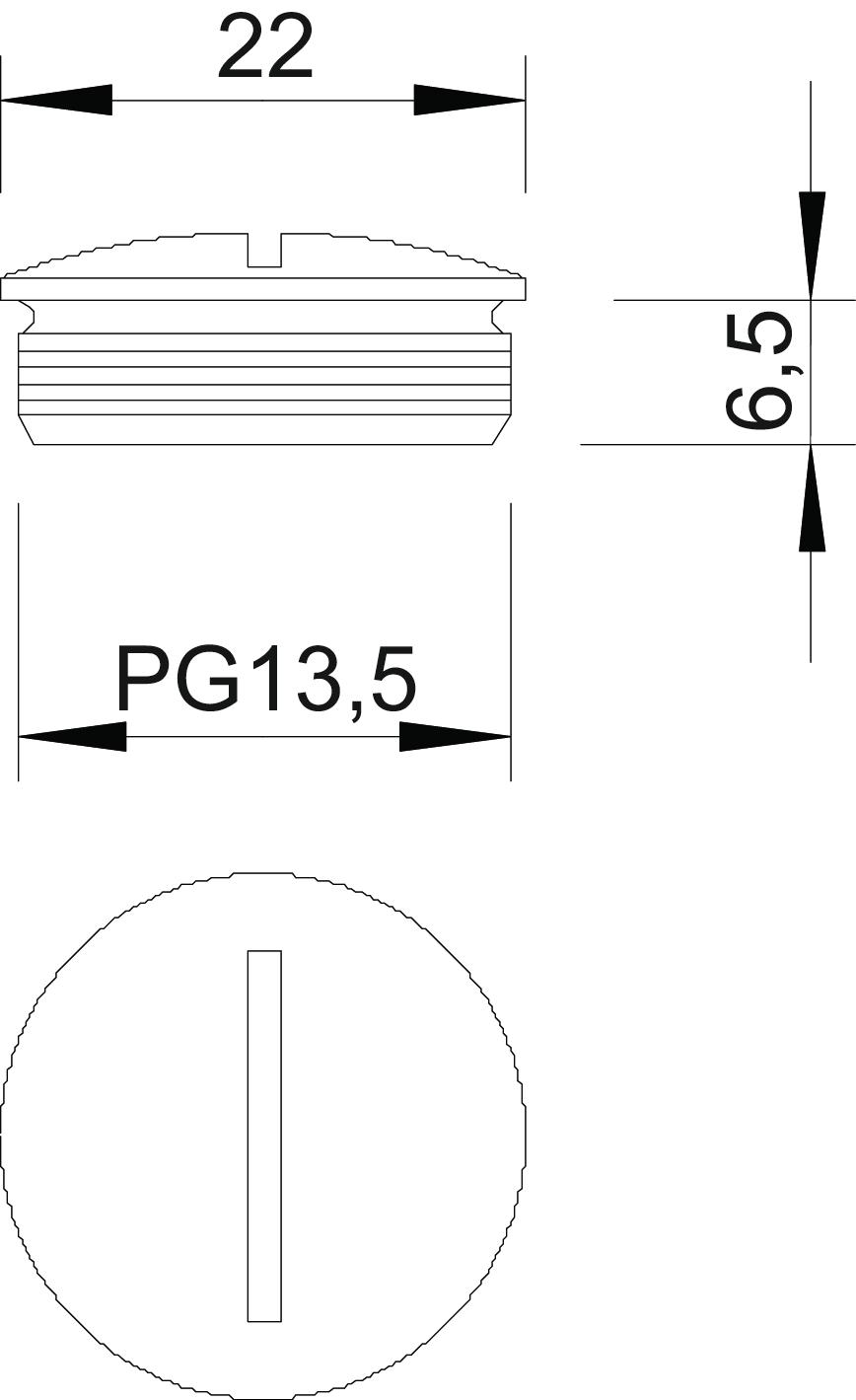

Dimension	PG13,5
Dimension D	22 mm
Dimension L	6,5 mm
explosion-proof	no
Fibre-glass reinforced	no
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes

Impact-resistant	no
Material	Brass
Nominal thread size metric/PG	13,5
Protection rating	IP68
Surface	Nickel-plated
Thread	Pg 13,5
Thread increase	1,41 mm
Thread type	PG

All types

All types

Types	Thread	Item no.	Quantity	SSU
168 MS PG 7	Pg 7	2090074	piece	100 piece
168 MS PG 9	Pg 9	2090090	piece	100 piece
168 MS PG11	Pg 11	2090112	piece	100 piece
168 MS PG13	Pg 13,5	2090139	piece	100 piece
168 MS PG16	Pg 16	2090163	piece	100 piece
168 MS PG21	Pg 21	2090201	piece	50 piece
168 MS PG29	Pg 29	2090295	piece	50 piece
168 MS PG36	Pg 36	2090368	piece	50 piece
168 MS PG42	Pg 42	2090422	piece	25 piece
168 MS PG48	Pg 48	2090481	piece	25 piece
