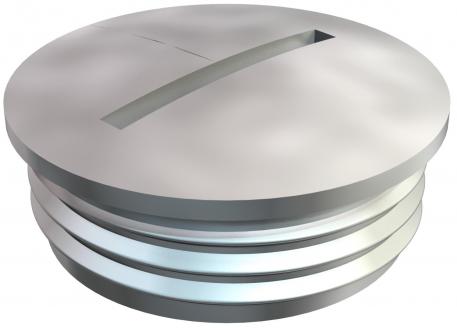

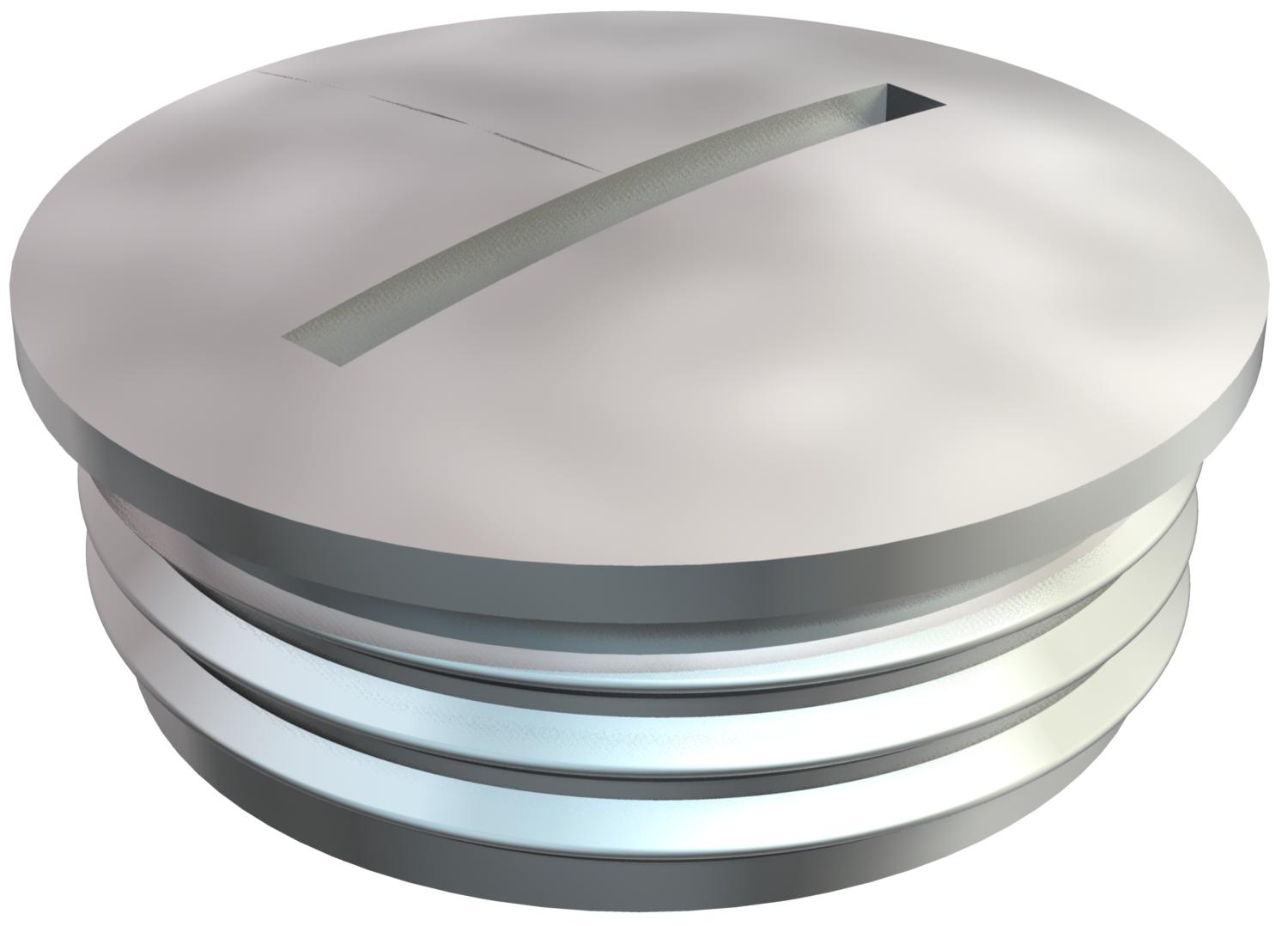

Screw plug, PG thread
Item no. 2090201 | EAN 4012195194231
- Product description
-
Product descriptionScrew plug N in accordance with DIN 46320, with PG thread to DIN 40430.
In conjunction with sealing ring, types 107, 170 or 171, protection rating IP68 (5 bar/1 hr).
Sealing ring not contained in the scope of delivery.
* Prices according to DEL notation.
-
- Technical data
-
Technical data

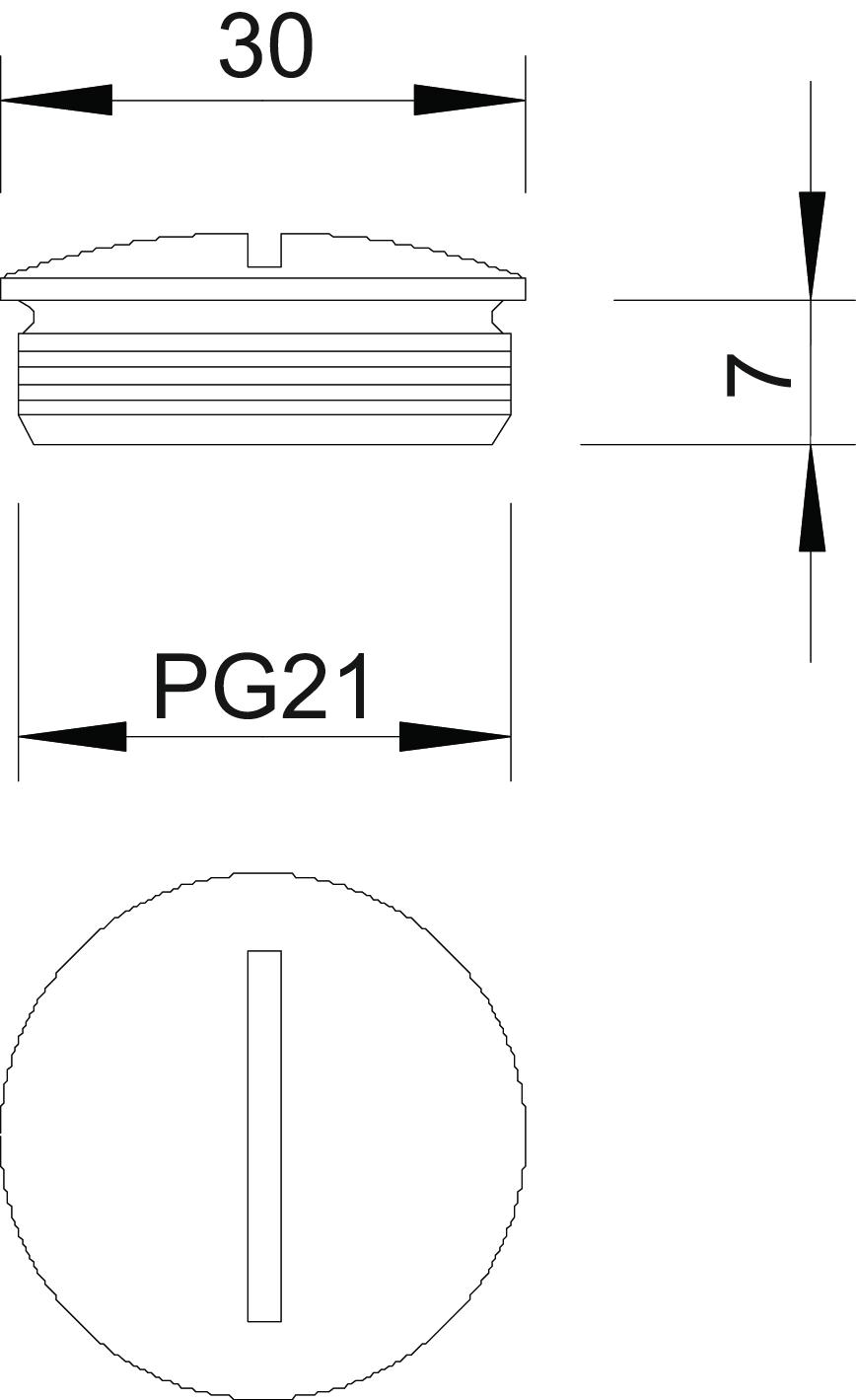

Dimension PG21 Dimension D 30 mm Dimension L 7 mm explosion-proof no Fibre-glass reinforced no For Ex zone dust Without For Ex zone gas Without Halogen-free yes Impact-resistant no Material Brass Nominal thread size metric/PG 21 Protection rating IP68 Surface Nickel-plated Thread Pg 21 Thread increase 1,59 mm Thread type PG - All types
- Downloads
-
Data sheet 168 MS PG21 / 2090201 , 0.20MB , pdfEU declaration of conformity 168 MS PG21 / 2090201 , 0.13MB , pdfREACH Declaration of conformity 168 MS PG21 / 2090201 , 0.12MB , pdfRoHS Declaration of conformity 168 MS PG21 / 2090201 , 0.12MB , pdf
