Product description
Tested according to EN 60998
Screwless terminal to connect single-strand cables.
Nominal cross-section:
3 x 0.5 mm² to 2.5 mm² single-wire conductors
3 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductors
Rated voltage 450 V
Rated current 24 A
Stripping length: 8-9 mm
Test opening: Phase tester and testing pin (max. Ø 2 mm)
Max. approved ambient temperature according to EN 60998: –5 to +90 °C.
- Technical data
-
Technical data

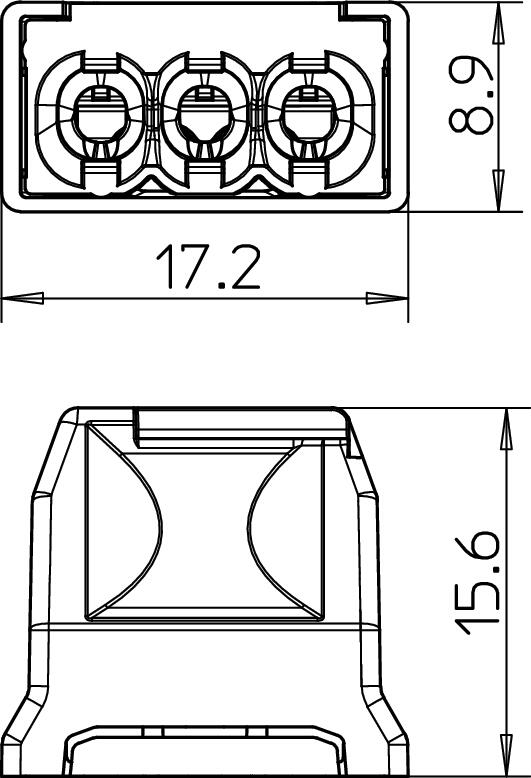

Colour Light grey; RAL 7035 Connectable conductor cross-section, multi-wire, max. 2,5 mm² Connectable conductor cross-section, multi-wire, min. 1,5 mm² Connectable conductor cross-section, single-wire, max. 2,5 mm² Connectable conductor cross-section, single-wire, min. 0,5 mm² Cross-section 3 x 0.5 mm² to 2.5 mm² single-wire conductors 3 x 1.5 mm² to 2.5 mm² rigid, multi-wire conductors mm² Dimension 3x2,5mm² Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C Height 8,9 mm Length 17,2 mm Material Polyamide No. of terminals 3 Nominal cross-section, max. 2,5 mm² Nominal cross-section, min. 0,5 mm² Nominal current 24 A Nominal voltage 450 V Permitted temperature range, max. 90 °C Permitted temperature range, min. -5 °C Pole number 3 Suitable for flexible conductors no Suitable for multi-wire conductors yes Suitable for solid conductors no Width 15,6 mm With actuating levers no - All types
- Downloads
-
Data sheet 61 325 LGR / 2054485 , 0.35MB , pdfDeclaration of conformity 61 325 LGR / 2054485 , 0.05MB , pdfREACH Declaration of conformity 61 325 LGR / 2054485 , 0.12MB , pdfRoHS Declaration of conformity 61 325 LGR / 2054485 , 0.12MB , pdf
