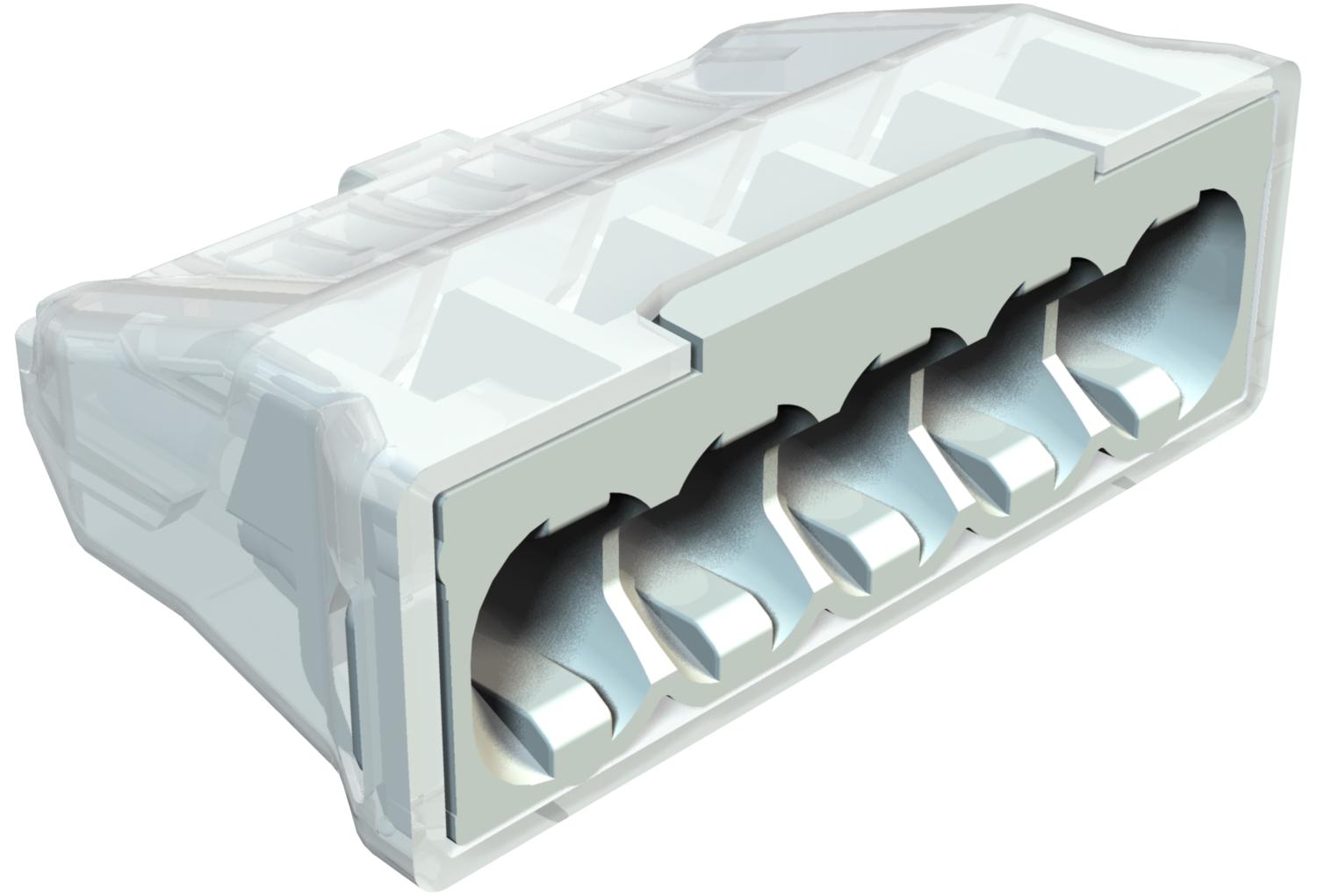

Screwless terminal, 5-pole

Item no. 2054507 | EAN 4012195825319

2054507 / 61 525 LGR
5
0.5 mm²
2.5 mm²
450 V
Light grey; RAL 7035
Product description

Product description

Screwless terminal to connect single-strand cables.
Nominal cross-section:
5 x 0.5 mm² to 2.5 mm² single-wire cable

5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable
Rated voltage 450 V.
Rated current 24 A.
Stripping length: 8–9 mm.
Inspection opening: phase tester and testing pin (max. Ø 2 mm).
  • Österreichischer Verband für Elektrotechnik, Austria
  • Underwriters Laboratories Inc., USA
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

Colour Light grey; RAL 7035
Connectable conductor cross-section, multi-wire, max. 2,5 mm²
Connectable conductor cross-section, multi-wire, min. 1,5 mm²
Connectable conductor cross-section, single-wire, max. 2,5 mm²
Connectable conductor cross-section, single-wire, min. 0,5 mm²
Cross-section 5 x 0.5 mm² to 2.5 mm² single-wire cable 5 x 1.5 mm² to 2.5 mm² rigid, multi-wire cable mm²
Dimension 5x2,5mm²
Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 850°C

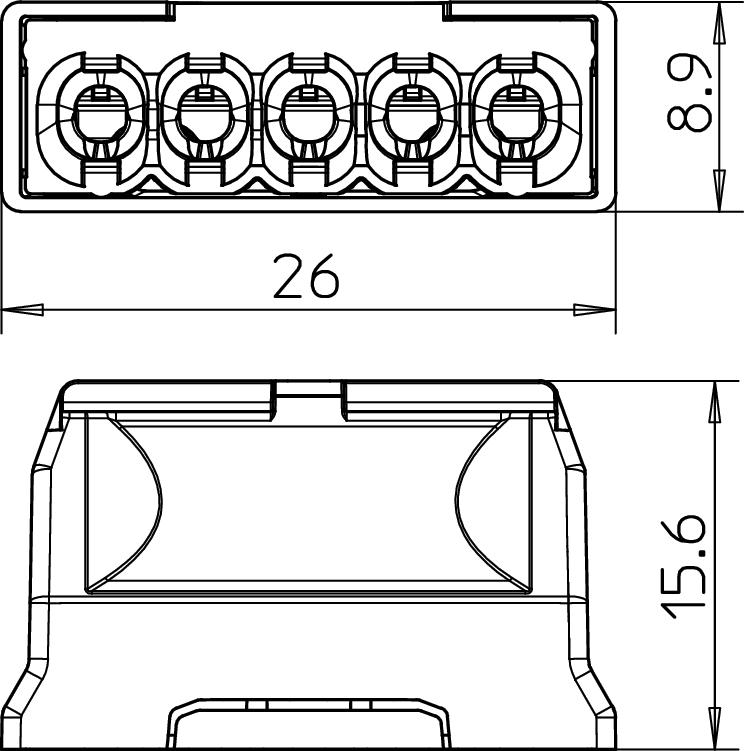

Height 8,9 mm
Length 26 mm
Material Polyamide
No. of terminals 5
Nominal cross-section, max. 2,5 mm²
Nominal cross-section, min. 0,5 mm²
Nominal current 24 A
Nominal voltage 450 V
Permitted temperature range, max. 90 °C
Permitted temperature range, min. -5 °C
Pole number 5
Suitable for flexible conductors no
Suitable for multi-wire conductors yes
Suitable for solid conductors no
Width 15,6 mm
With actuating levers no
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal cross-section, max. Nominal voltage Colour Item no. Quantity SSU
61 525 LGR 5 0.5 mm² 2.5 mm² 450 V Light grey; RAL 7035 2054507
100 piece
