Sealing plate, PG

Item no. 2029723 | EAN 4012195167716

Product description
Product description

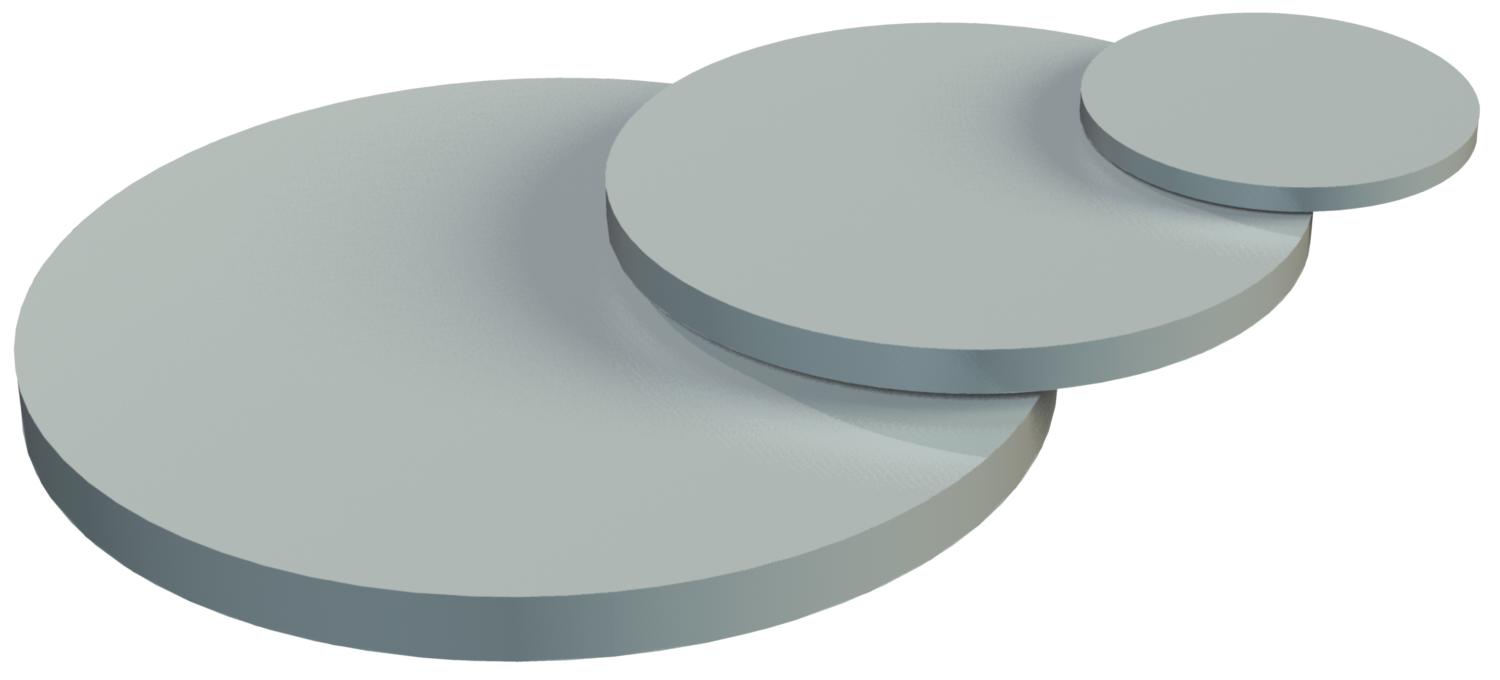

The sealing plate offers both mechanical protection and the maintenance of the protection rating of plastic and metal cable glands to DIN 46320 before cable installation.
Application: the discs are placed between the pressure screw and the pressure ring. If the safe maintenance of IP65 is required, we recommend placing the discs between the pressure ring and the sealing ring. To mount the cable, remove the discs – they can be reused.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension PG11

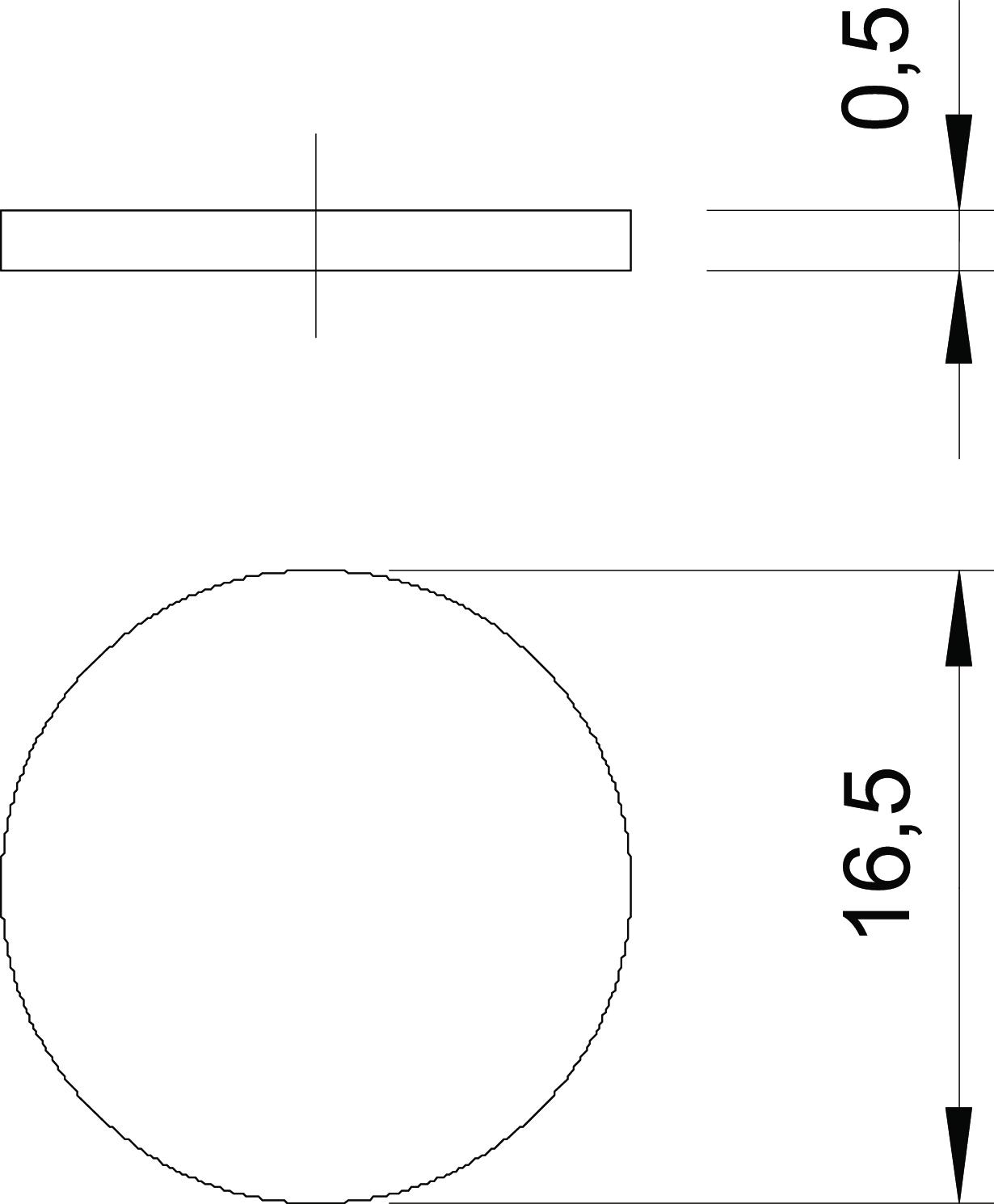

Dimension D 16,5 mm
Dimension t 0,5 mm
External diameter 16,5 mm
Material Polyvinylchloride
Screw for PG thread dimension 11
Thickness 0,5 mm
Version for Miscellaneous
All types

All types

Types Screw for PG thread dimension Item no. Quantity SSU
107 V PG 7 PVC 7 2029707
1000 piece
107 V PG 9 PVC 9 2029715
1000 piece
107 V PG11 PVC 11 2029723
1000 piece
107 V PG13.5 PVC 13.5 2029731
1000 piece
107 V PG16 PVC 16 2029758
1000 piece
107 V PG21 PVC 21 2029766
1000 piece
107 V PG29 PVC 29 2029774
100 piece
