- Product description
-

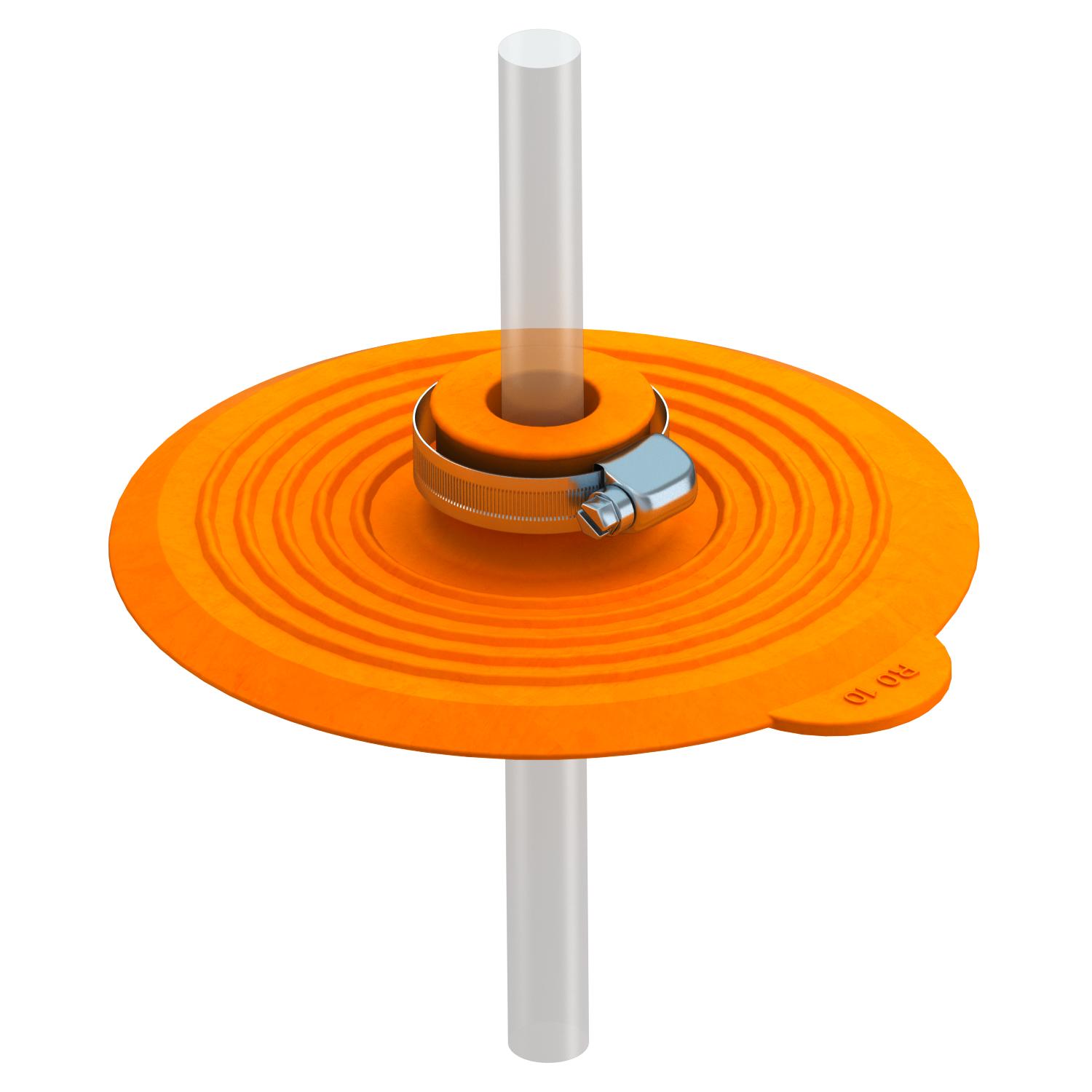

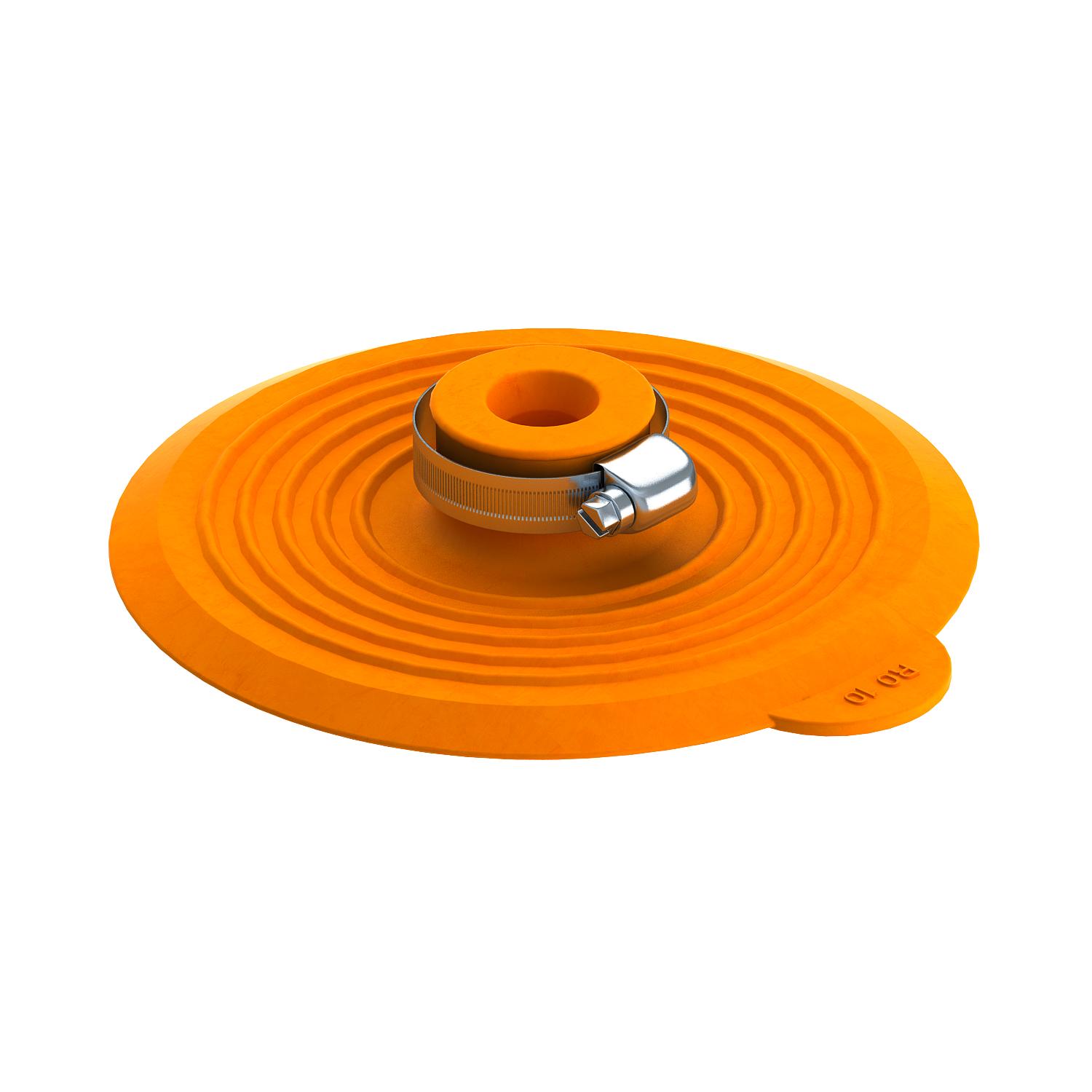

Product description• Sealing sleeve for penetrations of waterproof foundation plates/walls
(e.g. white trough)
• For mounting on connection lugs with stainless steel tightening straps
• With pressurised water testing to 5 bar
• According to DIN EN 62561-5 (VDE 0185-561-5)
- Technical data
-
Technical data

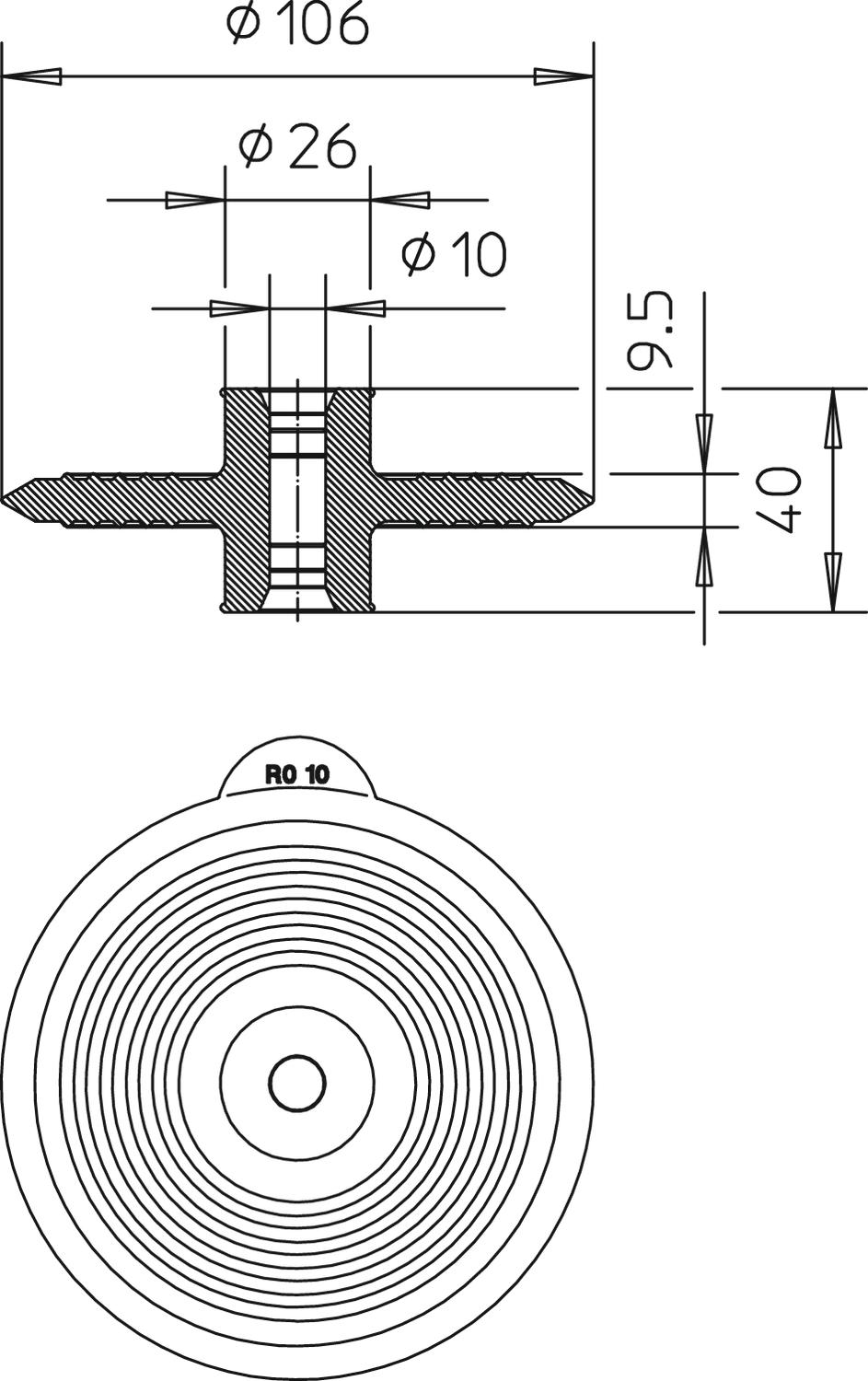

Colour Pastel orange; RAL 2003 Dimension RD10 Fit RD 10 mm Material Thermoplastic elastomer - All types
- Downloads
-
Data sheet DW RD10 / 2360041 , 0.18MB , pdfEU declaration of conformity DW RD10 / 2360041 , 0.04MB , pdfREACH Declaration of conformity DW RD10 / 2360041 , 0.12MB , pdfRoHS Declaration of conformity DW RD10 / 2360041 , 0.12MB , pdfMounting instructions Mounting instructions, sealing sleeve , 2.00MB , pdf
