Separable cable gland, sealing insert, multiple, light grey 2 | | M32 x 1,5 | yes | Light grey

Separable cable gland, sealing insert, multiple, light grey

Item no. 2024984 | EAN 4012196536917

Item no. / Types

Number of drill holes

Thread	M32 x 1,5

Sealing insert, multiple	yes

Colour	Light grey

Product description

Product description

The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.

The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.
Further multiple sealing inserts upon request.

Technical data

Technical data

Bend protection	no
Colour	Light grey

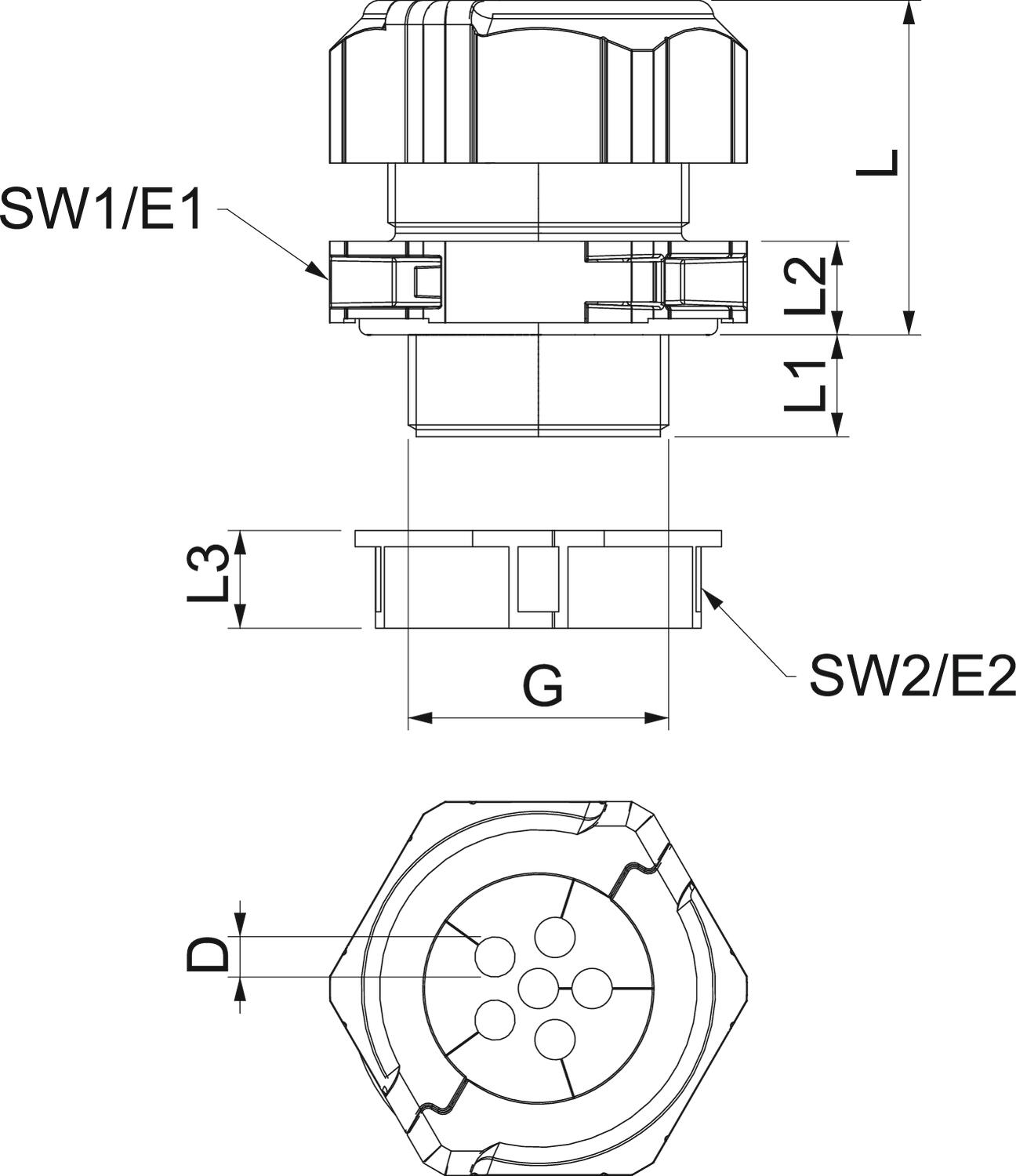

Dimension	M32
Dimension D	11 mm
Dimension E1 (mm)	51,5 mm
Dimension E2	45 mm
Dimension G	M32x1,5 mm
Dimension L	41 mm
Dimension L max.	41 mm
Dimension L min.	32 mm
Dimension L1	14 mm
Dimension L2	10 mm
Dimension L3	12 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	53,5 mm
Hexagonal corner dimension	45 mm

Impact-resistant	yes
Length	46 mm
Material	Polycarbonate
Nominal thread size	32
Number of drill holes	2
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP67
Sealing insert, multiple	yes
Splittable gland	yes
Strain relief option	no
Thread	M32 x 1,5
Thread increase	1,5 mm
Thread length	14 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	8 Nm
Version for	Straight
WAF 1	46 mm
WAF 2	40 mm
Width	51,5 mm
With locknut	yes

All types

All types

Types	Number of drill holes	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC TB32 2x11	2	M32 x 1,5	yes	Light grey	2024984	piece	5 piece
V-TEC TB32 3x9	3	M32 x 1,5	yes	Light grey	2024986	piece	5 piece
V-TEC TB32 3x11	3	M32 x 1,5	yes	Light grey	2024988	piece	5 piece
V-TEC TB32 4x8	4	M32 x 1,5	yes	Light grey	2024990	piece	5 piece
V-TEC TB32 6x6	6	M32 x 1,5	yes	Light grey	2024992	piece	5 piece
