Separating bracket for wall mounting

Item no. 7215312 | EAN 4012196896110

Product description

Product description

Separating bracket as installation aid when mounting the PYROLINE® Con D BSK, type BSK 090511 and type BSK 120511, fire protection duct on the wall. Mounting of the bracket directly on the fastening anchors of the fire protection duct.
  • Fire protection duct for wall mounting
  • Fire resistance class I90
  • Function maintenance class E30
  • Fire resistance class I120
  • Function maintenance class E90
Technical data

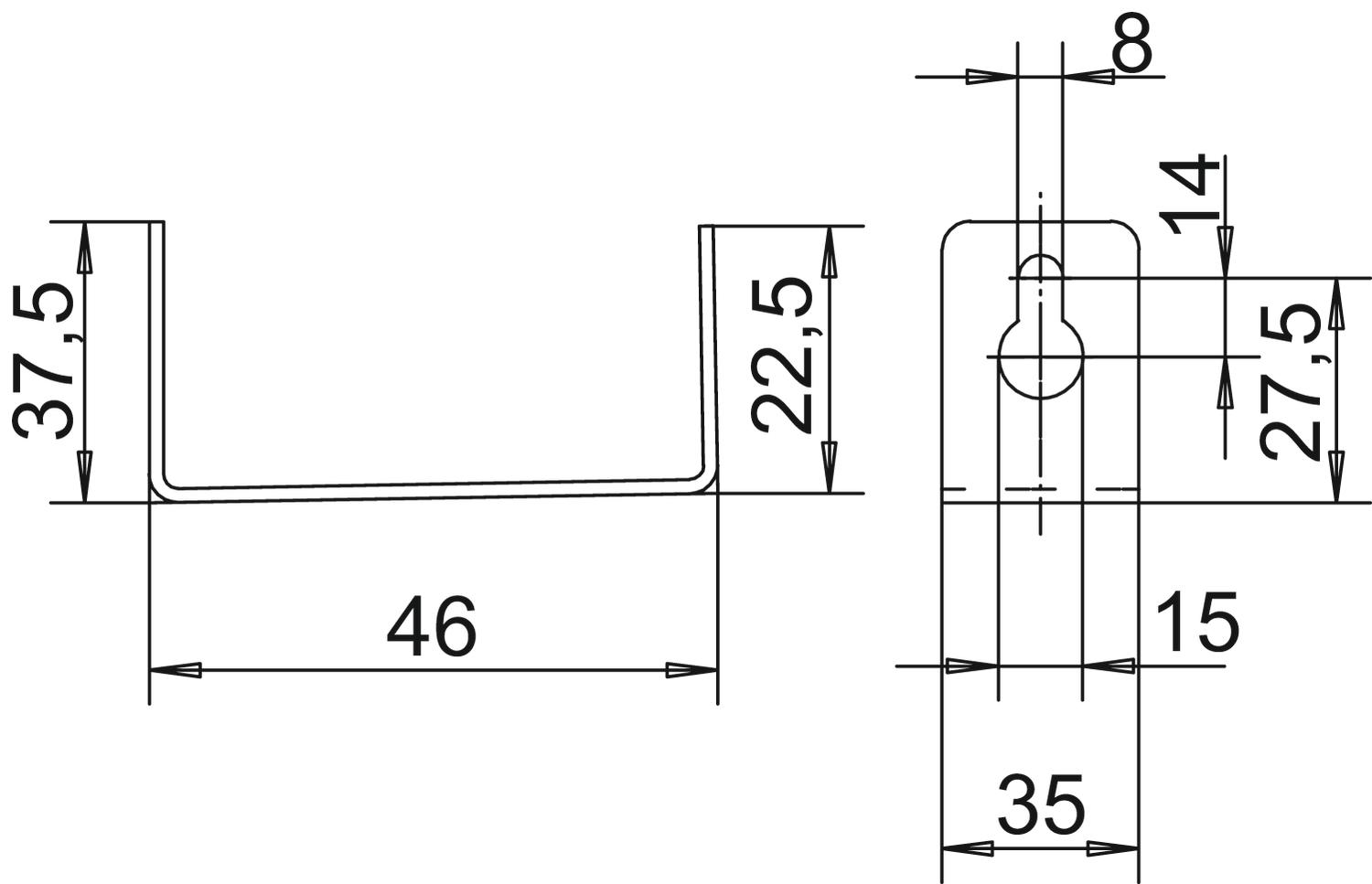

Dimensions

Dimension A 27,5 mm
Dimension B 46 mm
Dimension H 37,5 mm
Dimension h 22,5 mm
Duct height, internal 50 mm
Duct width, internal 110 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized
All types

All types

Types Dimension A Dimension B Dimension H Dimension h Item no. Quantity SSU
BSKD-W0511 27.5 mm 46 mm 37.5 mm 22.5 mm 7215312
25 piece
BSKD-W0521 52.5 mm 46 mm 62.5 mm 72.5 mm 7215318
25 piece
PLCD-SB0810 25 mm 76 mm 35 mm 20 mm 7215480
25 piece
PLCD-SB1220 50 mm 116 mm 60 mm 65 mm 7215484
25 piece
PLCD-SC0810 25 mm 50 mm 35 mm 76 mm 7215490
25 piece
PLCD-SC1220 50 mm 100 mm 60 mm 116 mm 7215494
25 piece
