Separating clamp for ceiling mounting 25 | 50 | 35 | 76 | 45
morepic-1 morepic-2 video-1 video-2

Separating clamp for ceiling mounting

Item no. 7215490 | EAN 4012196835423

Product description
Product description

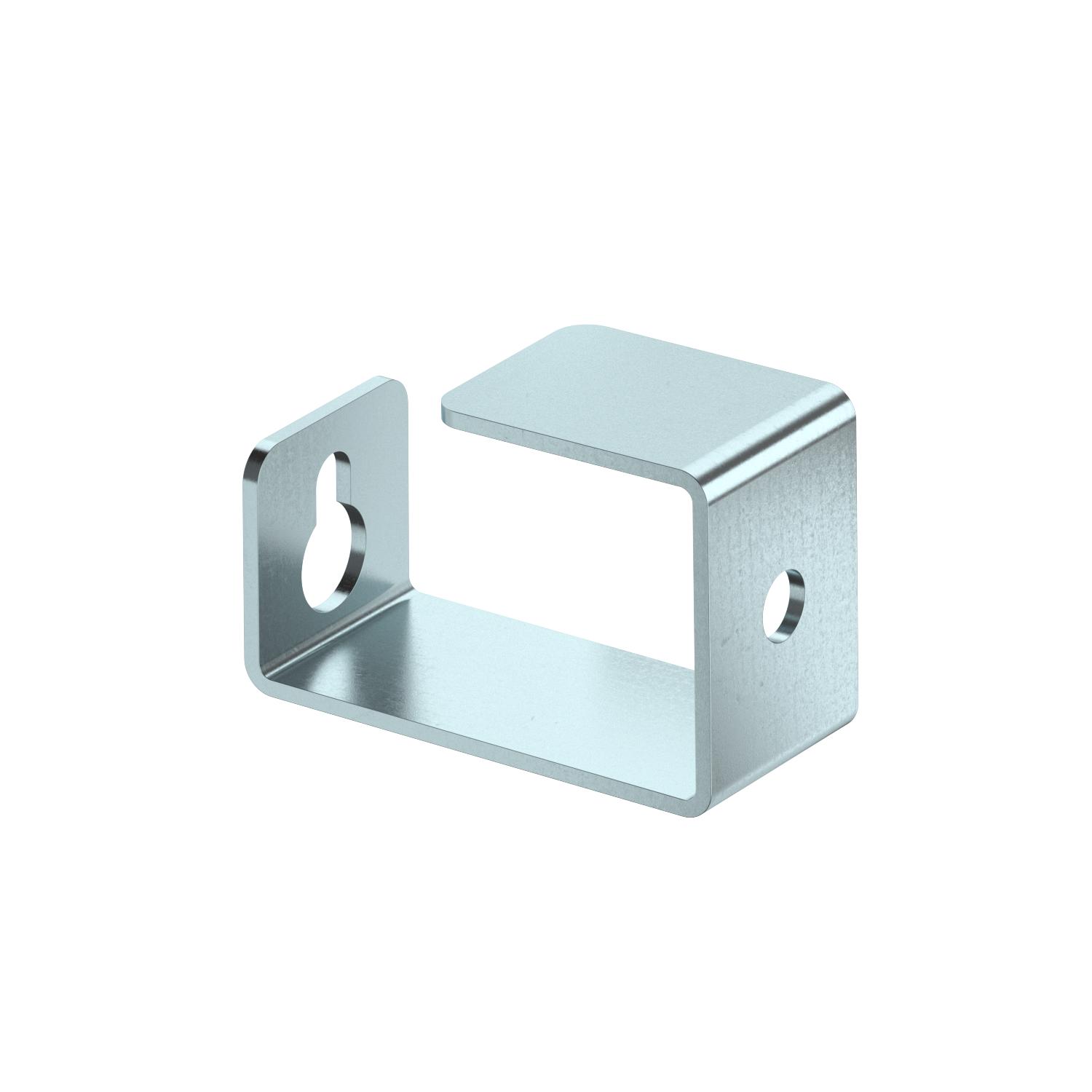

Separating clamp as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the ceiling, type PLCD D060810 and type PLCD D090810. Mounting of the clamp directly on the fastening anchors of the fire protection duct.
Technical data

Technical data

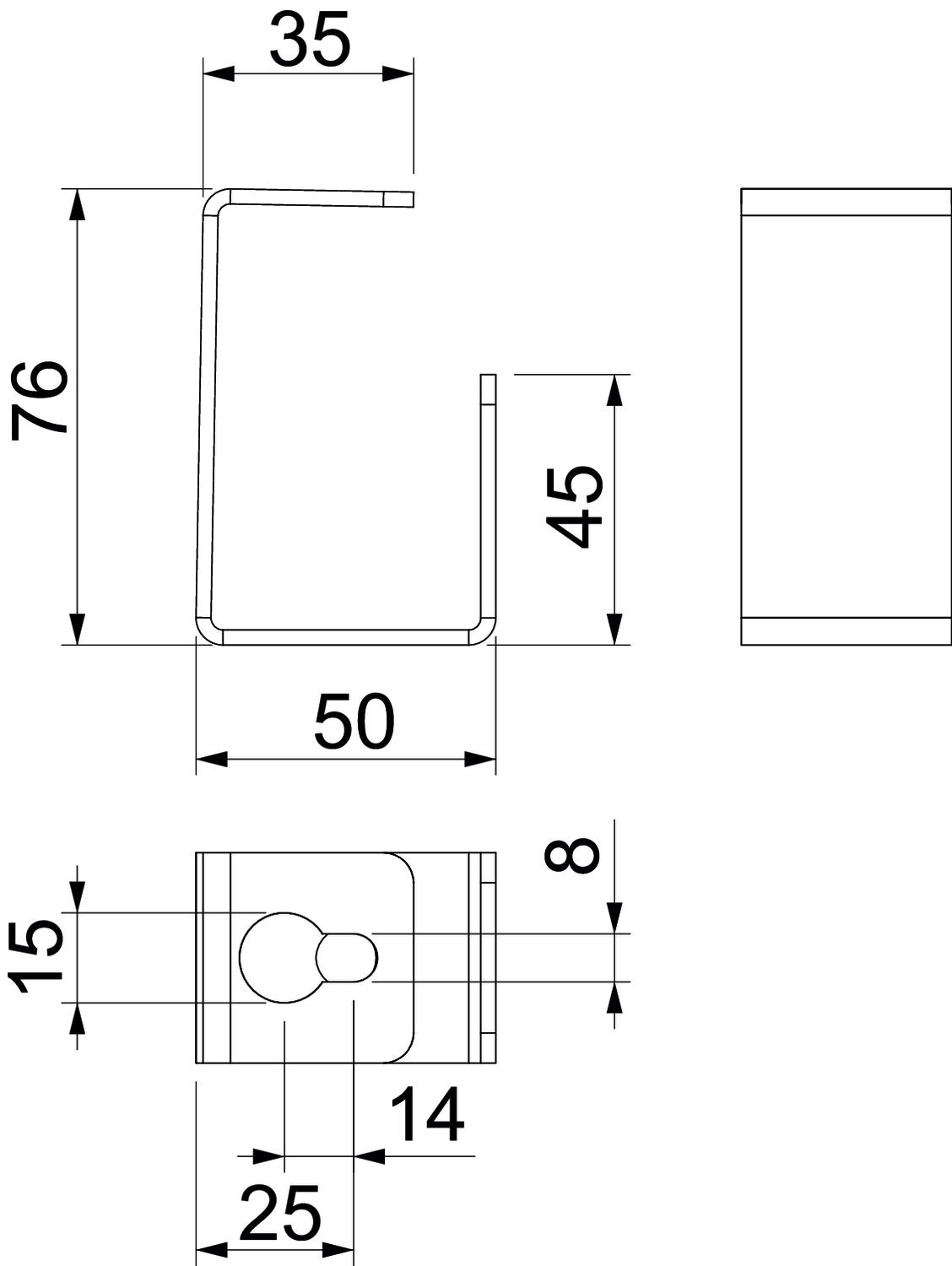

Dimension 76x45x35
Dimension A 25 mm
Dimension B 50 mm
Dimension b 35 mm
Dimension h 45 mm
Dimension H 76 mm
Duct height, internal 80 mm
Duct width, internal 100 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized
All types

All types

Types Dimension A Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
BSKD-W0511 27.5 46 37.5 22.5 - 7215312
25 piece
BSKD-W0521 52.5 46 62.5 72.5 - 7215318
25 piece
PLCD-SB0810 25 76 35 20 - 7215480
25 piece
PLCD-SB1220 50 116 60 65 - 7215484
25 piece
PLCD-SC0810 25 50 35 76 45 7215490
25 piece
PLCD-SC1220 50 100 60 116 80 7215494
25 piece
Downloads

Download

Download
Download
Download
Download

Declaration of performance PLCD-SC0810 / 7215490 , 0.31MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
