Separating clamp for ceiling mounting 50 | 100 | 60 | 116 | 80
morepic-1 morepic-2 video-1 video-2

Separating clamp for ceiling mounting

Item no. 7215494 | EAN 4012196835430

Product description
Product description
Separating clamp as installation aid for cable routing when mounting the PYROLINE® Con D fire protection duct on the ceiling, type PLCD D061220 and type PLCD D091220. Mounting of the clamp directly on the fastening anchors of the fire protection duct.
Technical data

Technical data

Colour zinc

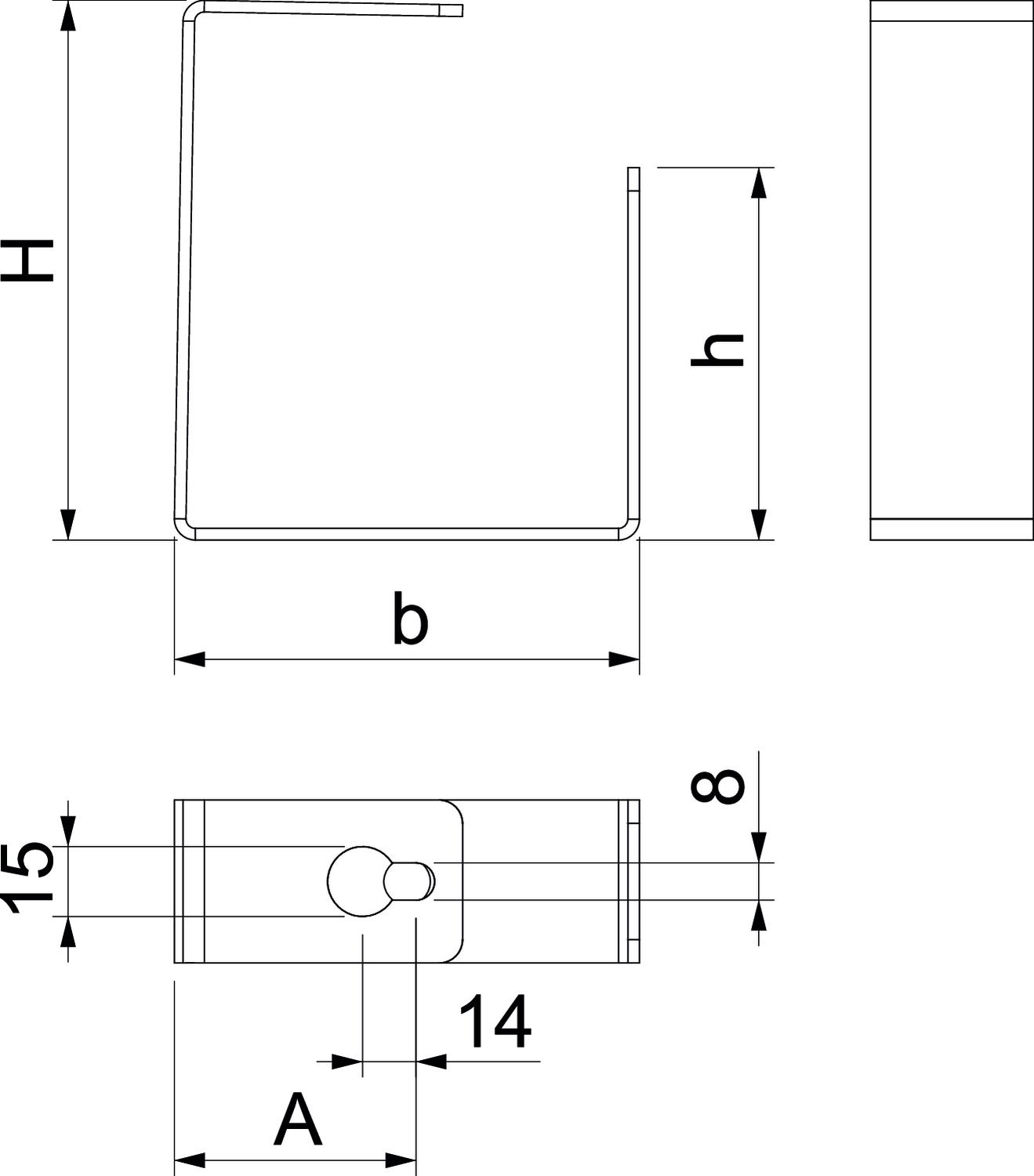

Dimension 116x80x35
Dimension A 50 mm
Dimension b 60 mm
Dimension B 100 mm
Dimension h 80 mm
Dimension H 116 mm
Duct height, internal 120 mm
Duct width, internal 200 mm
Fastening type Screw-on
Material Steel
Surface Strip galvanized
All types

All types

Types Dimension A Dimension B Dimension b Dimension H Dimension h Item no. Quantity SSU
BSKD-W0511 27.5 46 37.5 22.5 - 7215312
25 piece
BSKD-W0521 52.5 46 62.5 72.5 - 7215318
25 piece
PLCD-SB0810 25 76 35 20 - 7215480
25 piece
PLCD-SB1220 50 116 60 65 - 7215484
25 piece
PLCD-SC0810 25 50 35 76 45 7215490
25 piece
PLCD-SC1220 50 100 60 116 80 7215494
25 piece
Downloads

Download

Download
Download
Download
Download

Declaration of performance PLCD-SC1220 / 7215494 , 0.31MB , pdf
Download

Download

Download

No invitation to tender text is available for this product.
