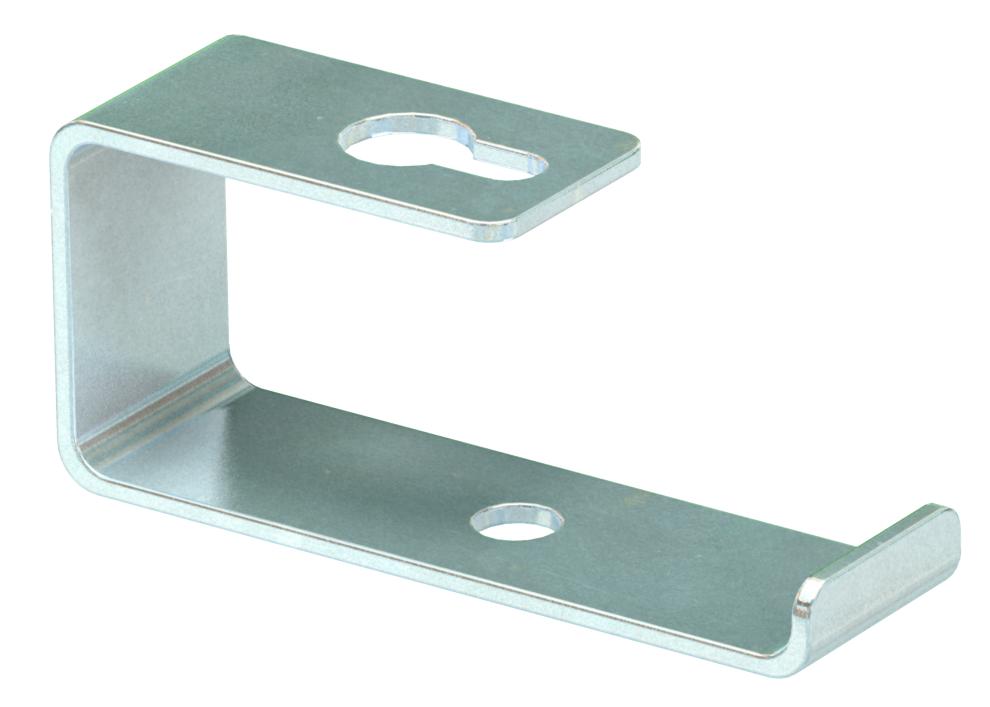

Separating clamp for ceiling mounting
Item no. 7215362 | EAN 4012196896417
- Product description
-
Product description
Separating clamp as installation aid when mounting the PYROLINE® Con D BSK, type BSK 090521 and type BSK 120521, fire protection duct on the ceiling. Mounting of the clamp directly on the fastening anchors of the fire protection duct.
-
- Technical data
-

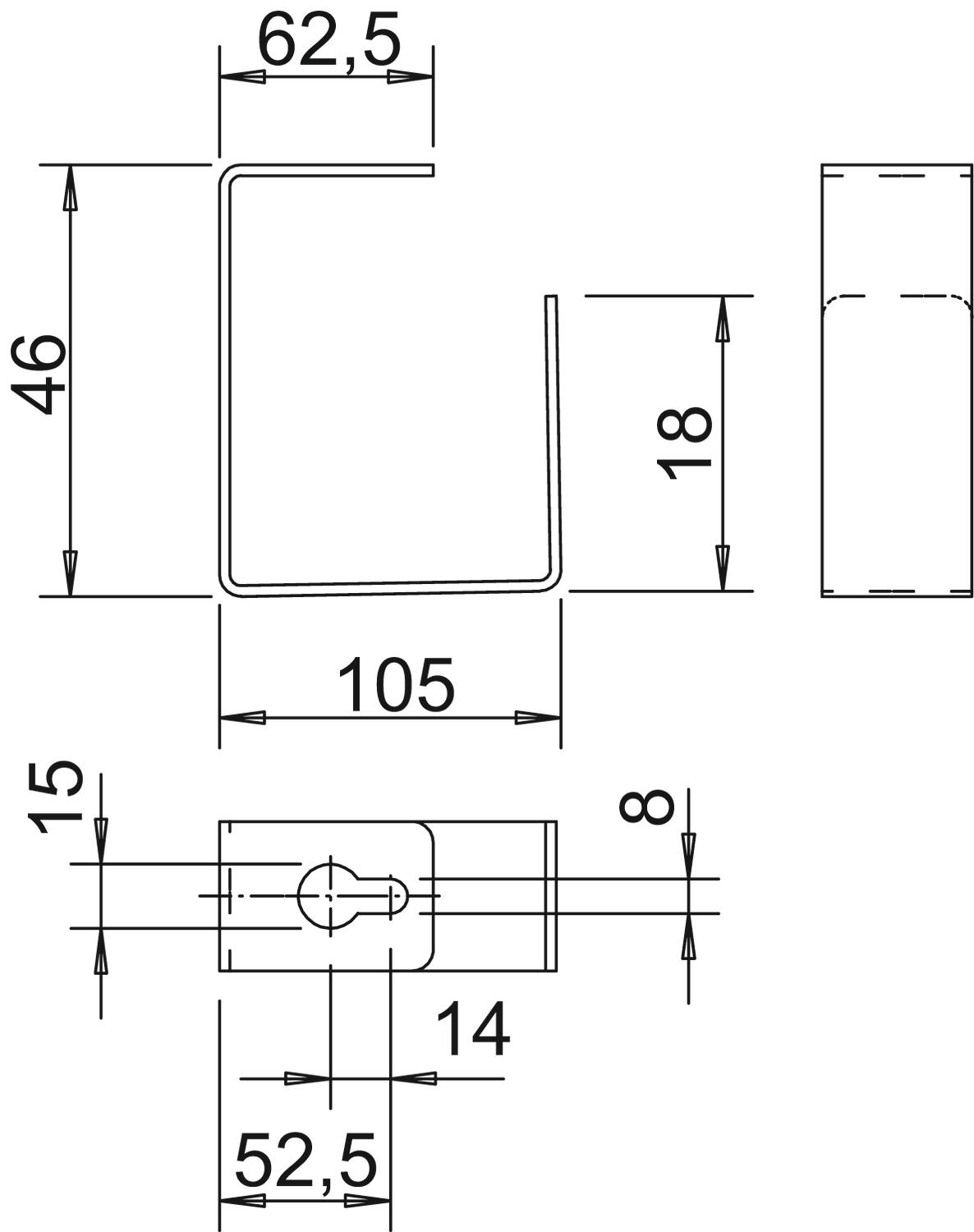

Dimensions
Dimension A 52,5 mm Dimension b 62,5 mm Dimension B 105 mm Dimension h 18 mm Dimension H 46 mm Duct height, internal 50 mm Duct width, internal 210 mm Fastening type Screw-on Material Steel Surface Strip galvanized - All types
- Downloads
-
Data sheet BSKD-B0521 / 7215362 , 0.21MB , pdfBrochure Brochure The Experts , 2.10MB , pdfCatalogue Brandschutzkanäle , 8.99MB , pdfREACH Declaration of conformity BSKD-B0521 / 7215362 , 0.27MB , pdfRoHS Declaration of conformity BSKD-B0521 / 7215362 , 0.28MB , pdfMounting instructions Mounting instructions, PYROLINE® Con BSK fire protection duct , 15.07MB , pdfNo invitation to tender text is available for this product.
