Separating piece, closed, Cu Rd 8-10/16
morepic-1 morepic-2 video-1

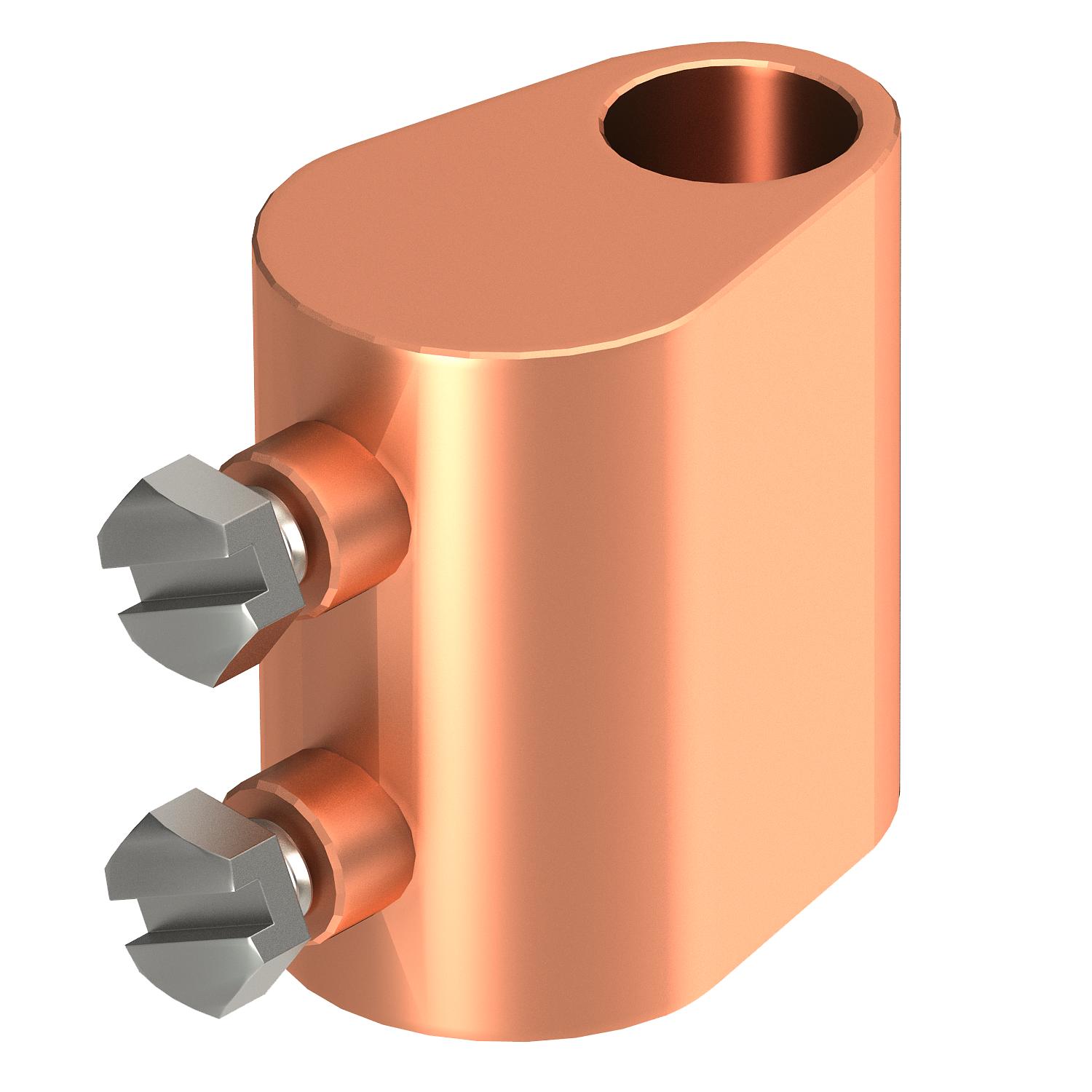

Separating piece, closed, Cu

Item no. 5335256 | EAN 4012195423676

5335256 / 223 DIN MS
Rd 8-10/16 mm
Product description
Product description

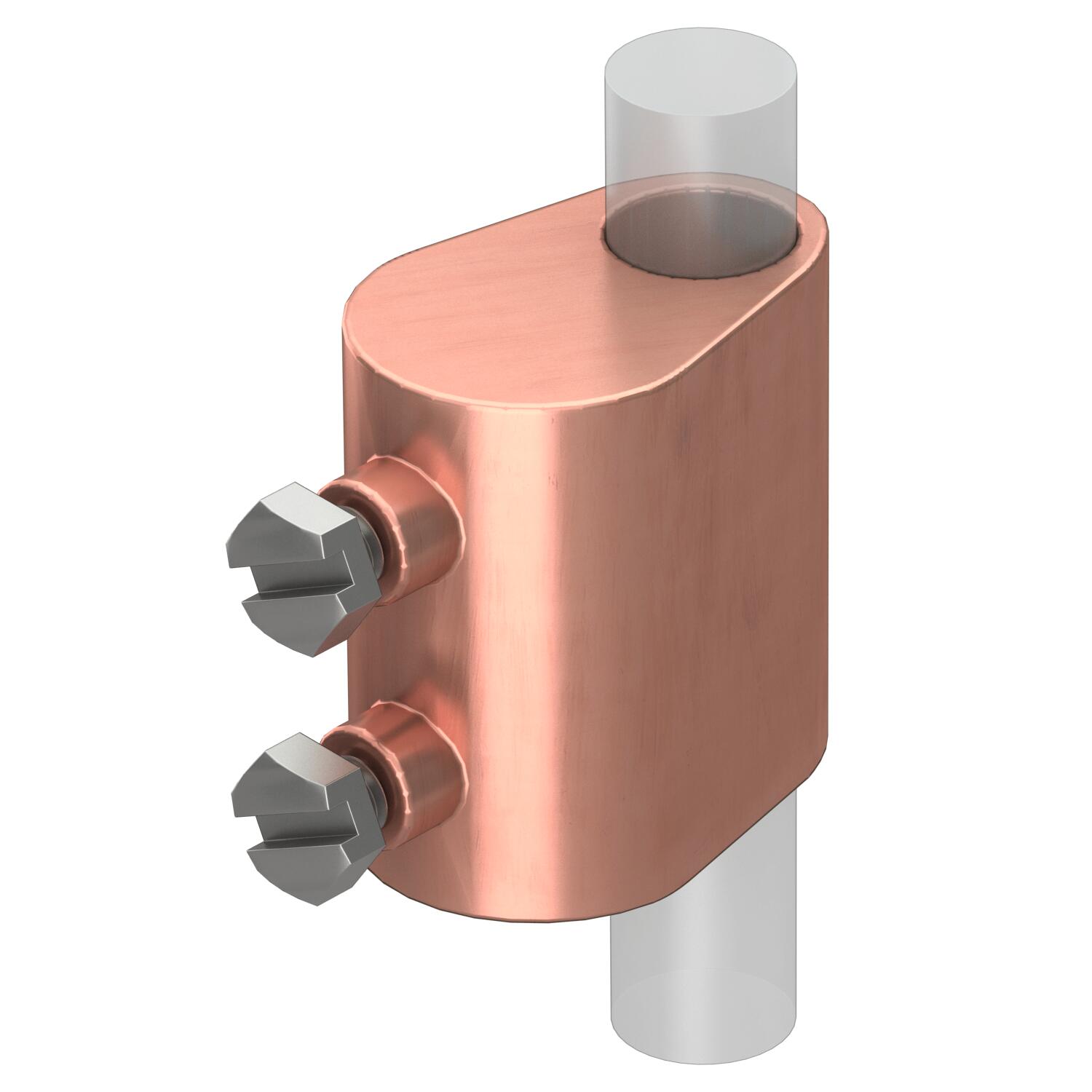

• For fitting round conductors Rd 8-10 to ground insertion rods Rd 16
• Including 2 hexagonal bolts, high-grade stainless steel (V2A)
• Conforms to the requirements according to DIN VDE 0185-305 (IEC 62305)


  • Lightning current-tested
Technical data

Technical data

Bimetal connector no
Dimension 8-10mmx16
Fit Rd 8-10/16 mm
Intermediate plate no
Material Die-cast zinc
Suitable for connection Round conductor Rd 8-10 / Rd 16
Surface Copper-plated
All types

All types

Types Fit Item no. Quantity SSU
223 DIN MS Rd 8-10/16 mm 5335256
10 piece
