Separating piece for Rd 8−10 and FL 30 mm FT Rd 8-10/FL30 x Rd 8-10/FL30
morepic-1 morepic-2 video-1

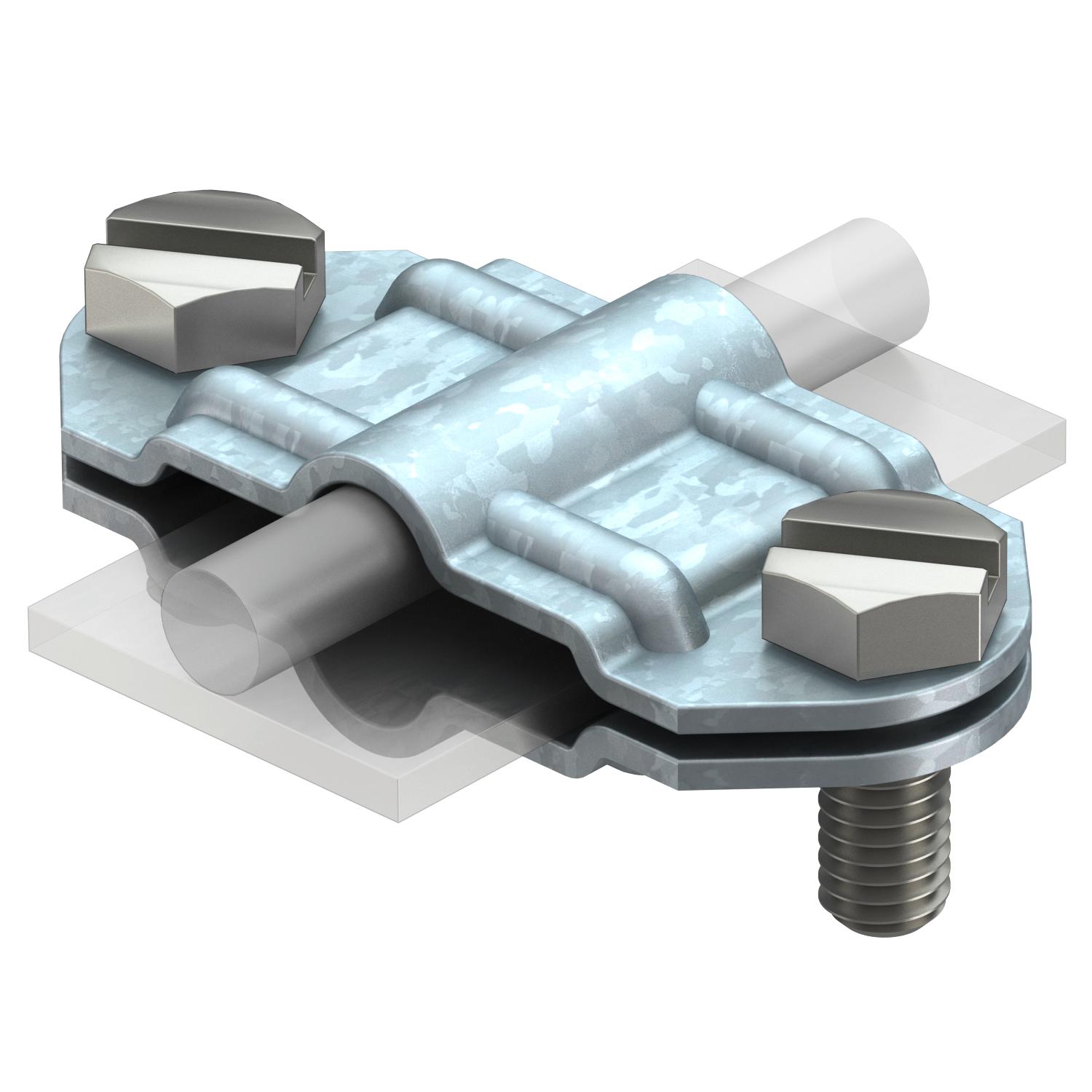

Separating piece for Rd 8−10 and FL 30 mm FT

Item no. 5336309 | EAN 4012195424635

5336309 / 233 8
Rd 8-10/FL30 x Rd 8-10/FL30 mm
Product description
Product description
• To fit round conductors Rd 8-10 or flat conductors FL 30

• With 2 hexagonal bolts M8 x 20 made of rustproof steel (VA)

• Short-circuit current Ik (50 Hz), time 0.6 s, temp. max. 300 °C: 8.5 kA
Technical data

Technical data

Bimetal connector no
Dimension 8-10mm
Fit Rd 8-10/FL30 x Rd 8-10/FL30 mm
Intermediate plate no
Material Steel
Suitable for connection Miscellaneous
Surface Hot-dip galvanised
All types

All types

Types Fit Item no. Quantity SSU
233 8 Rd 8-10/FL30 x Rd 8-10/FL30 mm 5336309
20 piece
Downloads

Download

Download
Download

EU declaration of conformity 233 8 / 5336309 , 0.06MB , pdf
Download
REACH Declaration of conformity 233 8 / 5336309 , 0.27MB , pdf
Download
RoHS Declaration of conformity 233 8 / 5336309 , 0.12MB , pdf
Download

233 8 / 5336309
