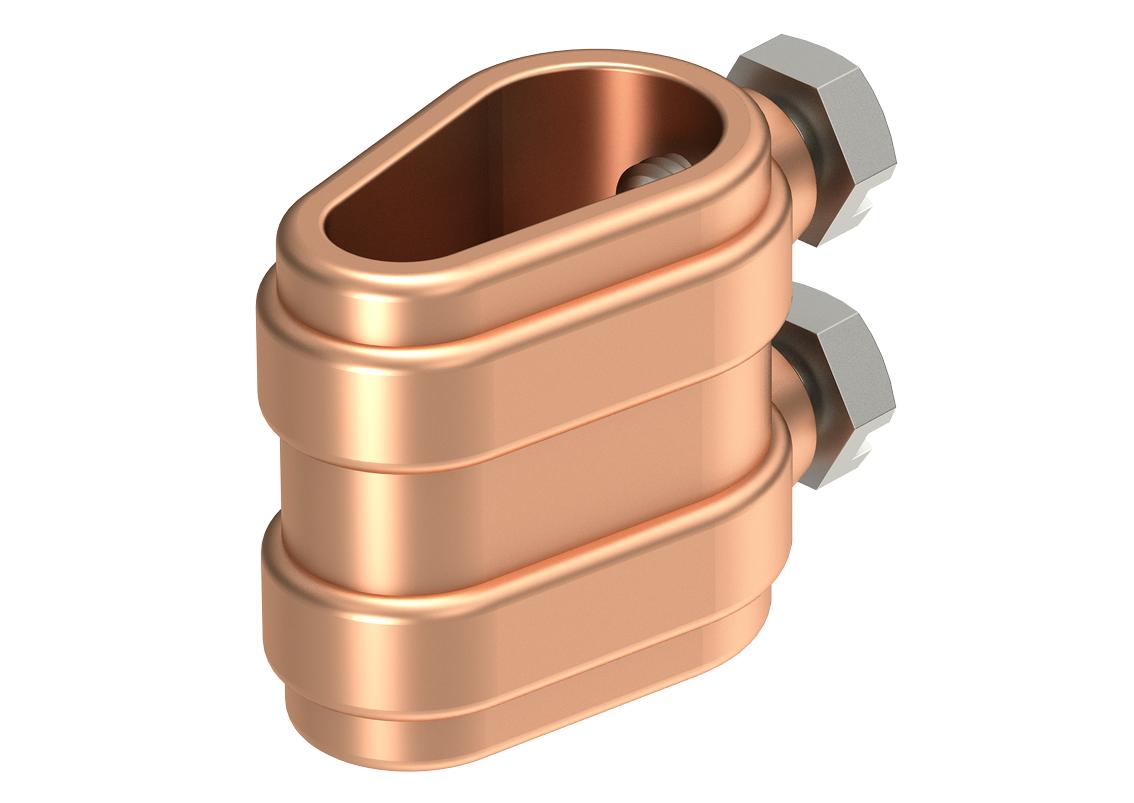

Separating piece, open, Cu

Item no. 5335167 | EAN 4012195890119

5335167 / 223 O DIN MS
Rd 8-10/16 mm
Product description

Product description

• With 2 hexagonal bolts, stainless steel (VA)

• Clamping element, copper-plated die-cast zinc
  • Lightning current-tested
Technical data

Technical data

Bimetal connector no

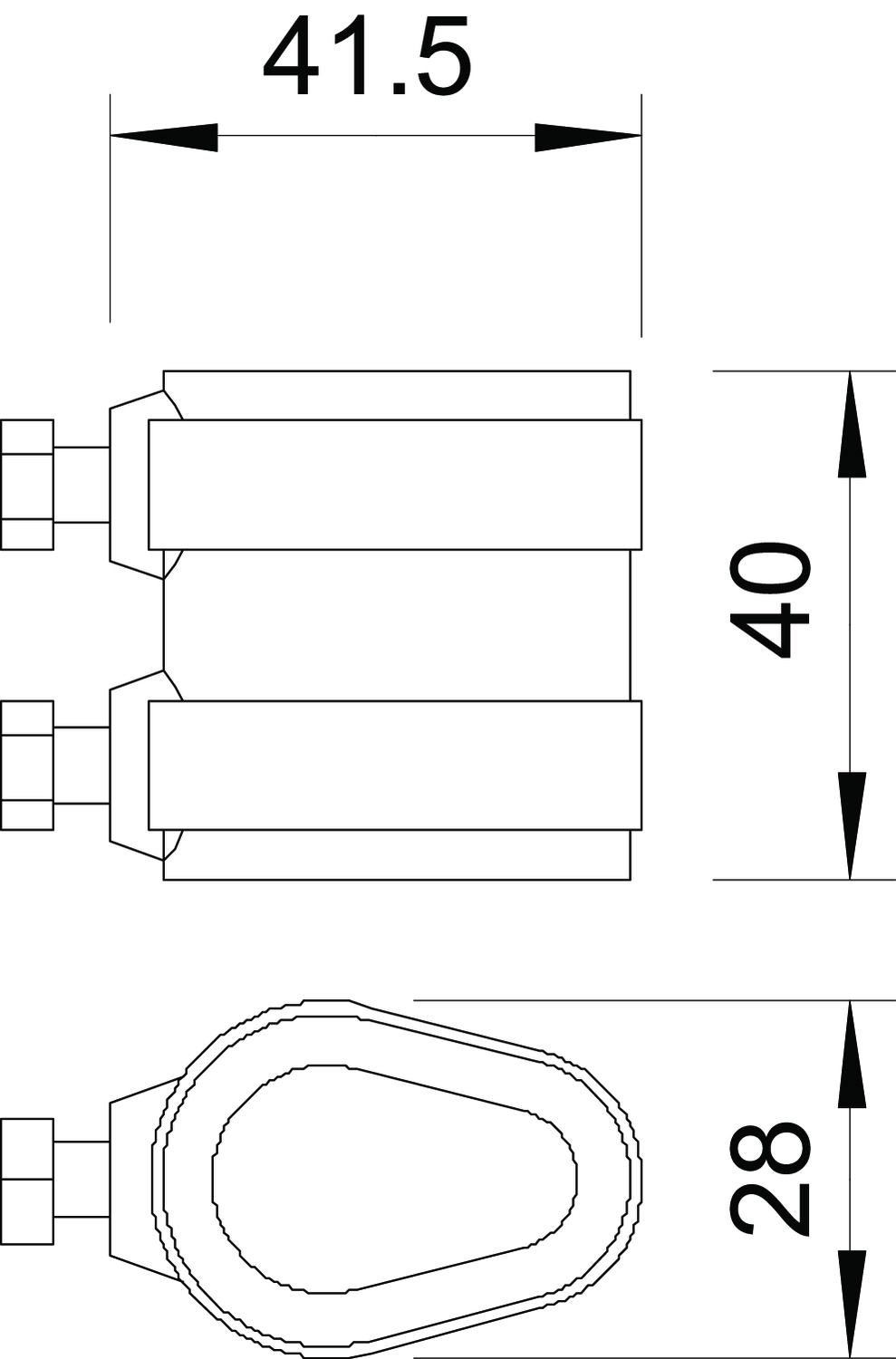

Dimension 8-10mmx16
Fit Rd 8-10/16 mm
Intermediate plate no
Material Die-cast zinc

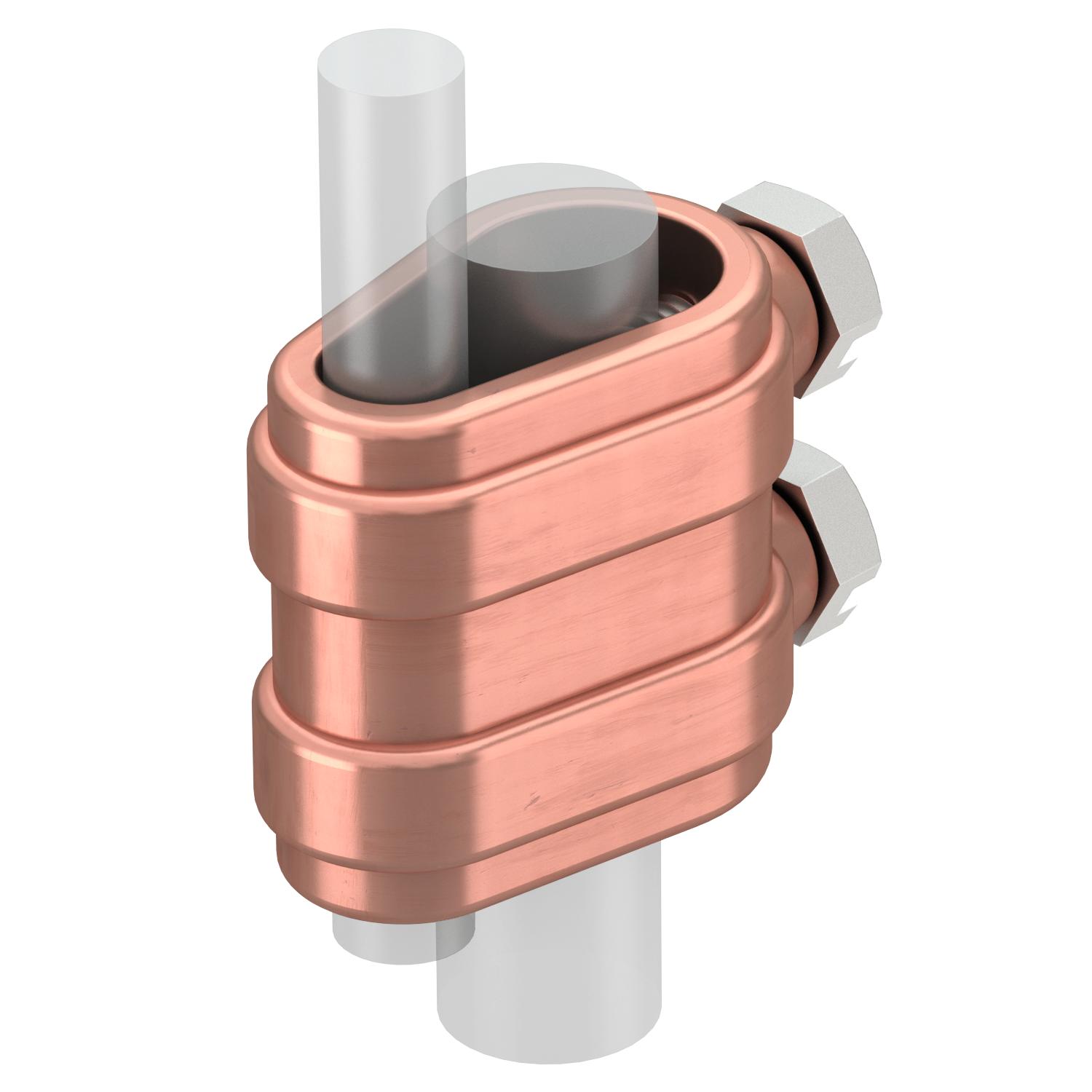

Suitable for connection Round conductor Rd 8-10 / Rd 16
Surface Copper-plated
All types

All types

Types Fit Item no. Quantity SSU
223 O DIN MS Rd 8-10/16 mm 5335167
20 piece
