Series clip, black

Item no. 2254522 | EAN 4012195614890

5 mm
25 mm
M4 x 30
Product description

Product description

Also suitable for rails of 11 ÷ 12 mm slot width; polystyrene clip element, impact resistant, halogen-free, light grey RAL 7035; metal parts: electrogalvanised steel.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11–12 mm
Technical data

Technical data

Bolt M4 x 30
Clamping range D, max. 25 mm
Clamping range D, min. 5 mm
Colour Pure white; RAL 9010

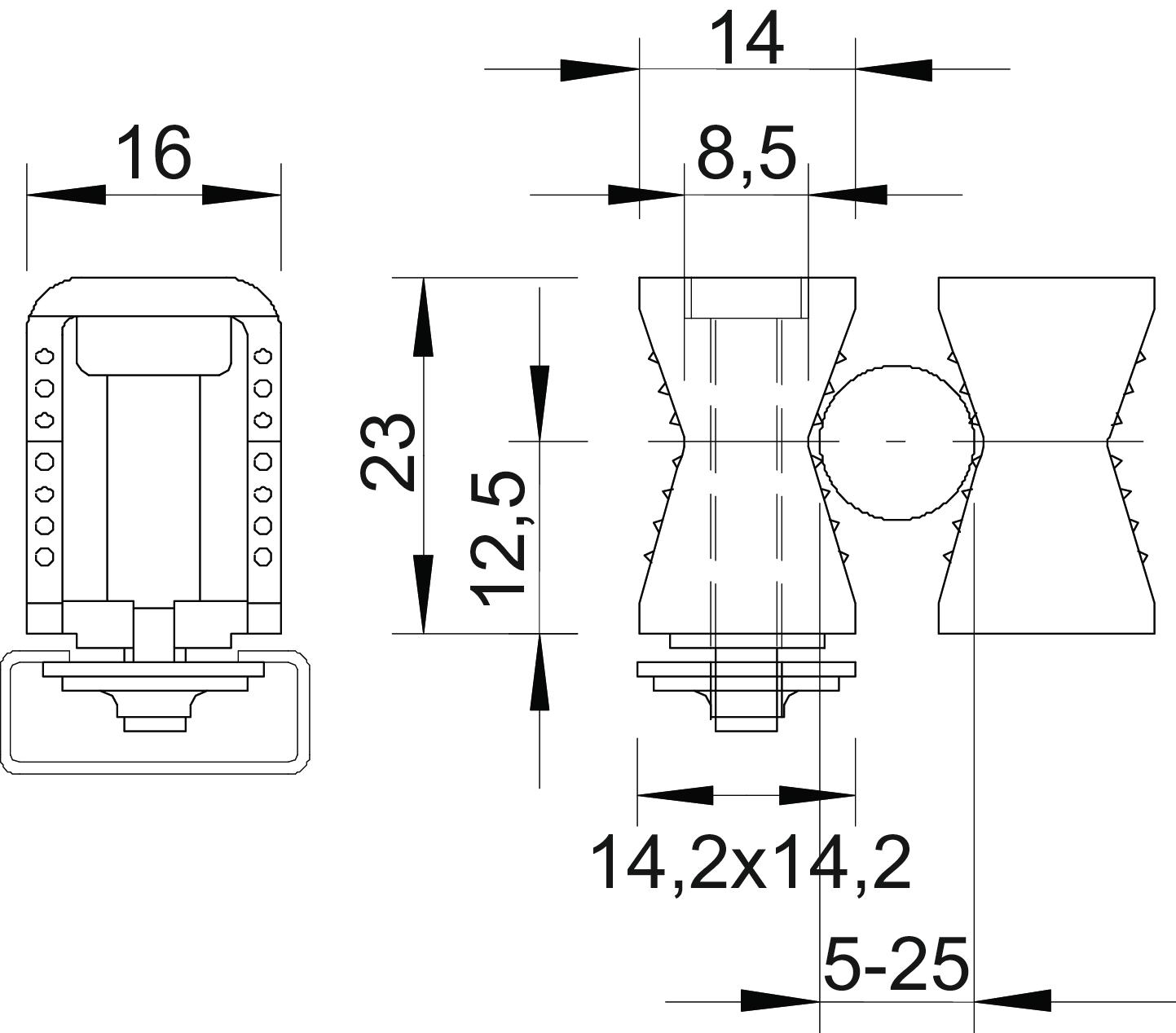

Dimension 5-25mm
Dimension B 14 mm
Dimension B1 7,5 mm
Dimension H 24 mm
Dimension H1 12,5 mm
Distance to the wall no
Fastening type Rail fastening
for rail with slot width (with interval), max. 12 mm
for rail with slot width (with interval), min. 11 mm
Halogen-free yes
Impact-resistant yes
Material Polystyrene
Nominal diameter 25 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
UV-resistant no
All types

All types

Types Clamping range D, min. Clamping range D, max. Bolt Colour Item no. Quantity SSU
2050 5-25 LGR 5 mm 25 mm M4 x 30 Light grey; RAL 7035 2254026
100 piece
2050 5-25 RW 5 mm 25 mm M4 x 30 Pure white; RAL 9010 2254522
100 piece
