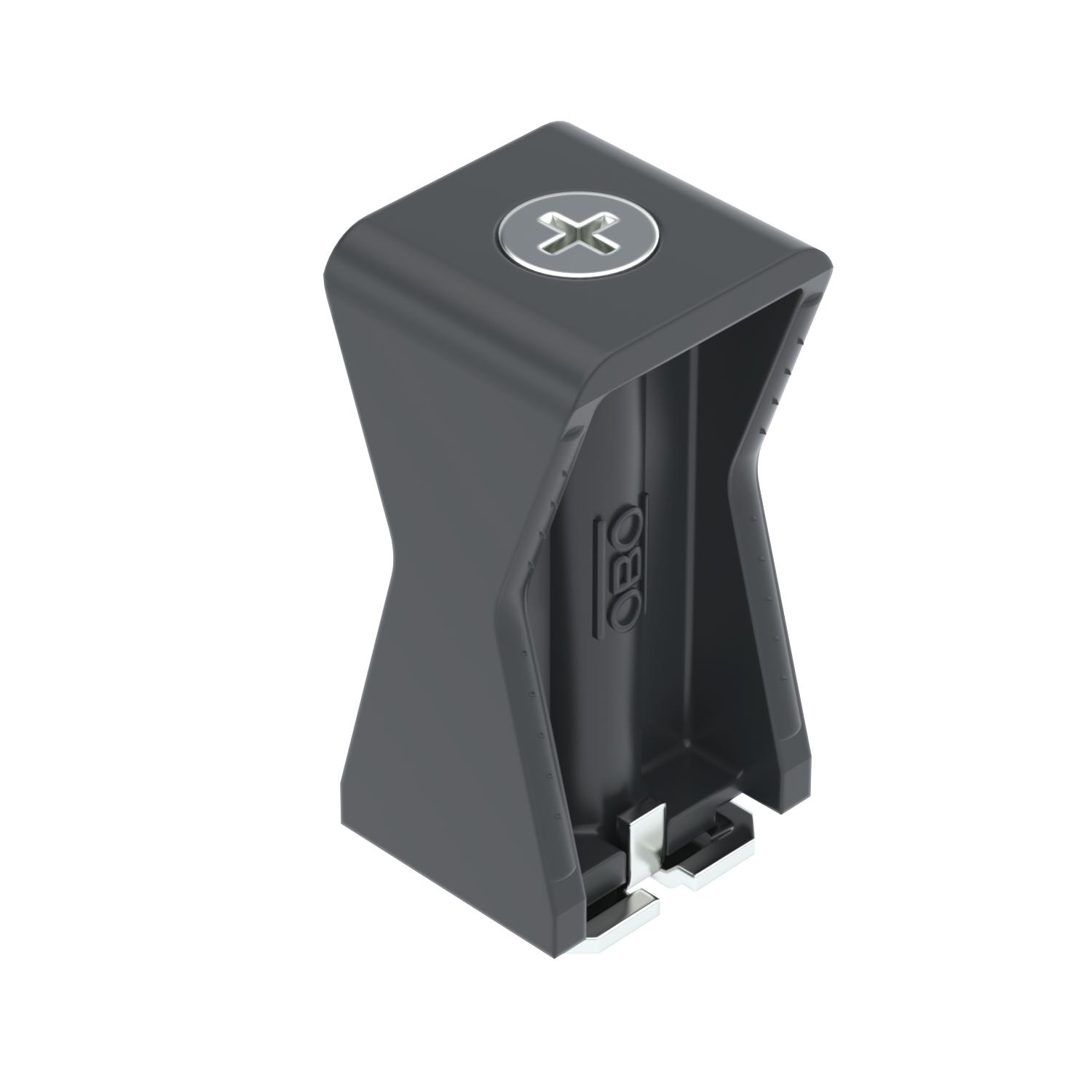

Series clip, black

Item no. 2254565 | EAN 4012195615019

8 mm
36 mm
M4 x 40
Product description

Product description

Also suitable for rails of 11 ÷ 12 mm slot width; polystyrene clip element, impact resistant, halogen-free, light grey RAL 7035; metal parts: electrogalvanised steel.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 11–12 mm
Technical data

Technical data

Bolt M4 x 40
Clamping range D, max. 36 mm
Clamping range D, min. 8 mm
Colour Graphite black; RAL 9011

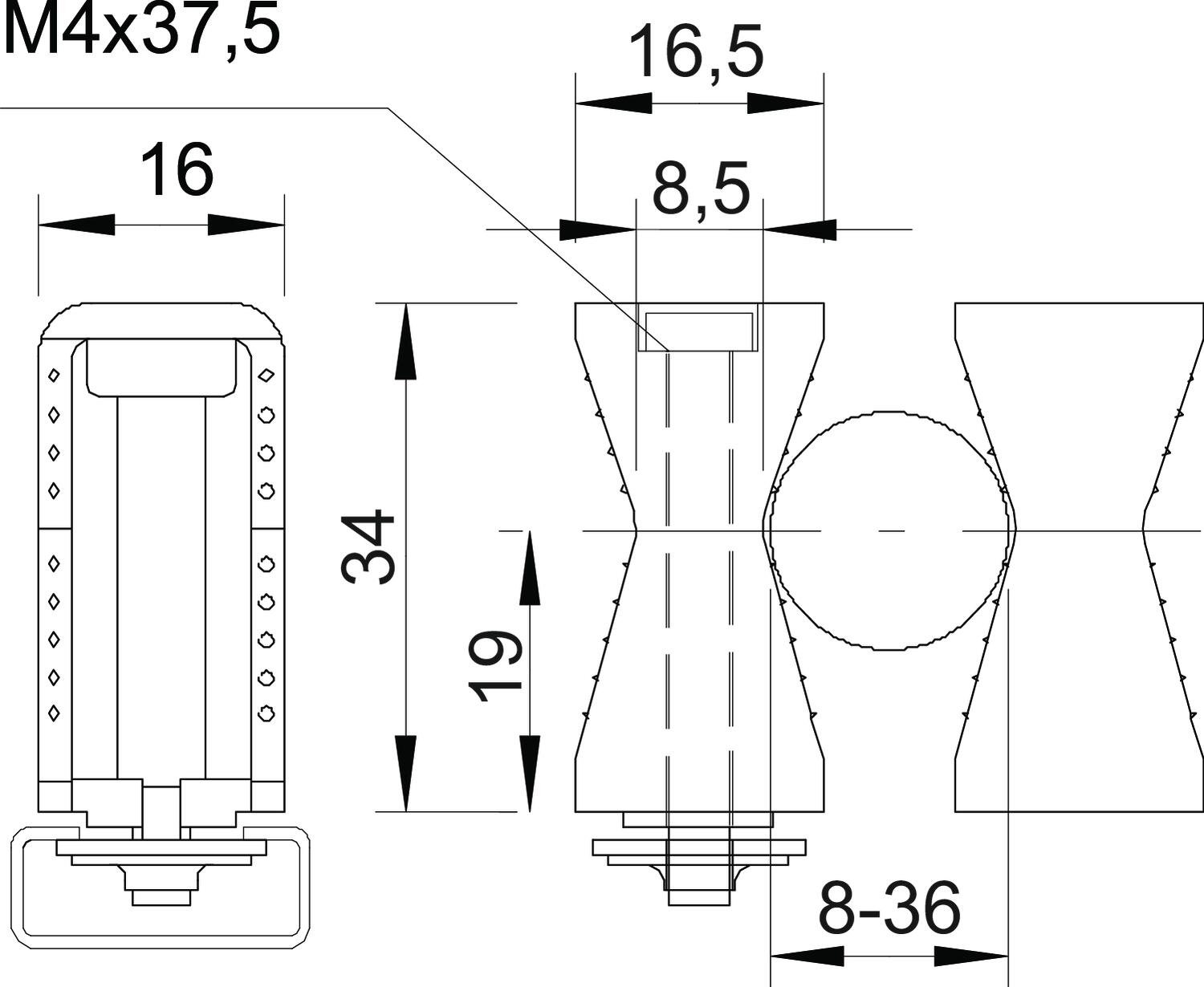

Dimension 8-36mm
Dimension B 17 mm
Dimension B1 7,5 mm
Dimension H 34 mm
Dimension H1 18 mm
Distance to the wall no
Fastening type Rail fastening
for rail with slot width (with interval), max. 12 mm
for rail with slot width (with interval), min. 11 mm
Halogen-free yes
Impact-resistant no
Material Polystyrene
Nominal diameter 36 mm
Number of cables/pipes 1
Plastic-covered no
Suitable in fire protection area no
UV-resistant no
All types

All types

Types Clamping range D, min. Clamping range D, max. Bolt Colour Item no. Quantity SSU

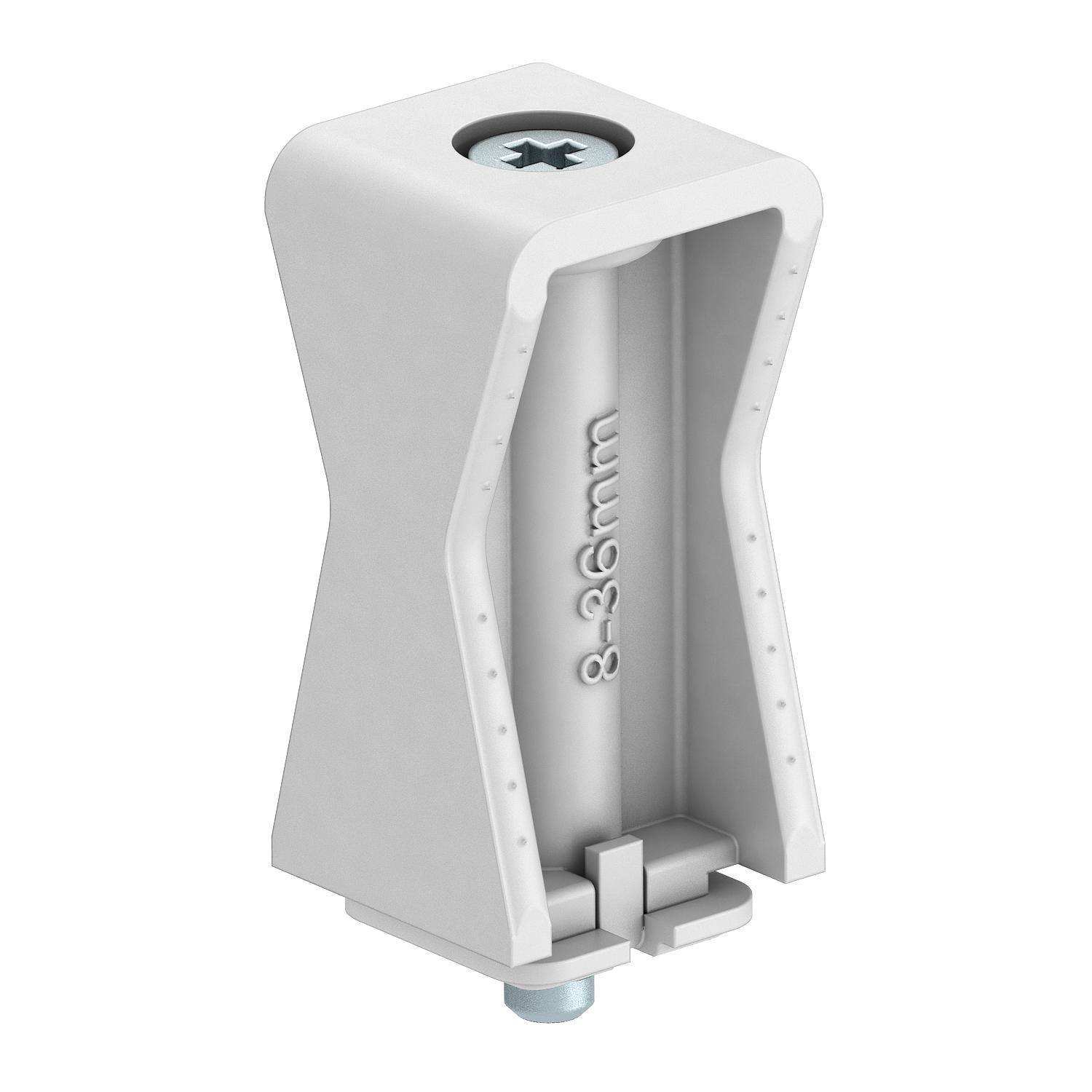

2051 8-36 LGR 8 mm 36 mm M4 x 40 Light grey; RAL 7035 2254034
100 piece
2051 8-36 SW 8 mm 36 mm M4 x 40 Graphite black; RAL 9011 2254565
100 piece
