Series clip, light grey 14 | 48 | M8 x 60 | Light grey; RAL 7035

Series clip, light grey

Item no. 2255014 | EAN 4012195222798

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Bolt

Colour

Product description

Product description

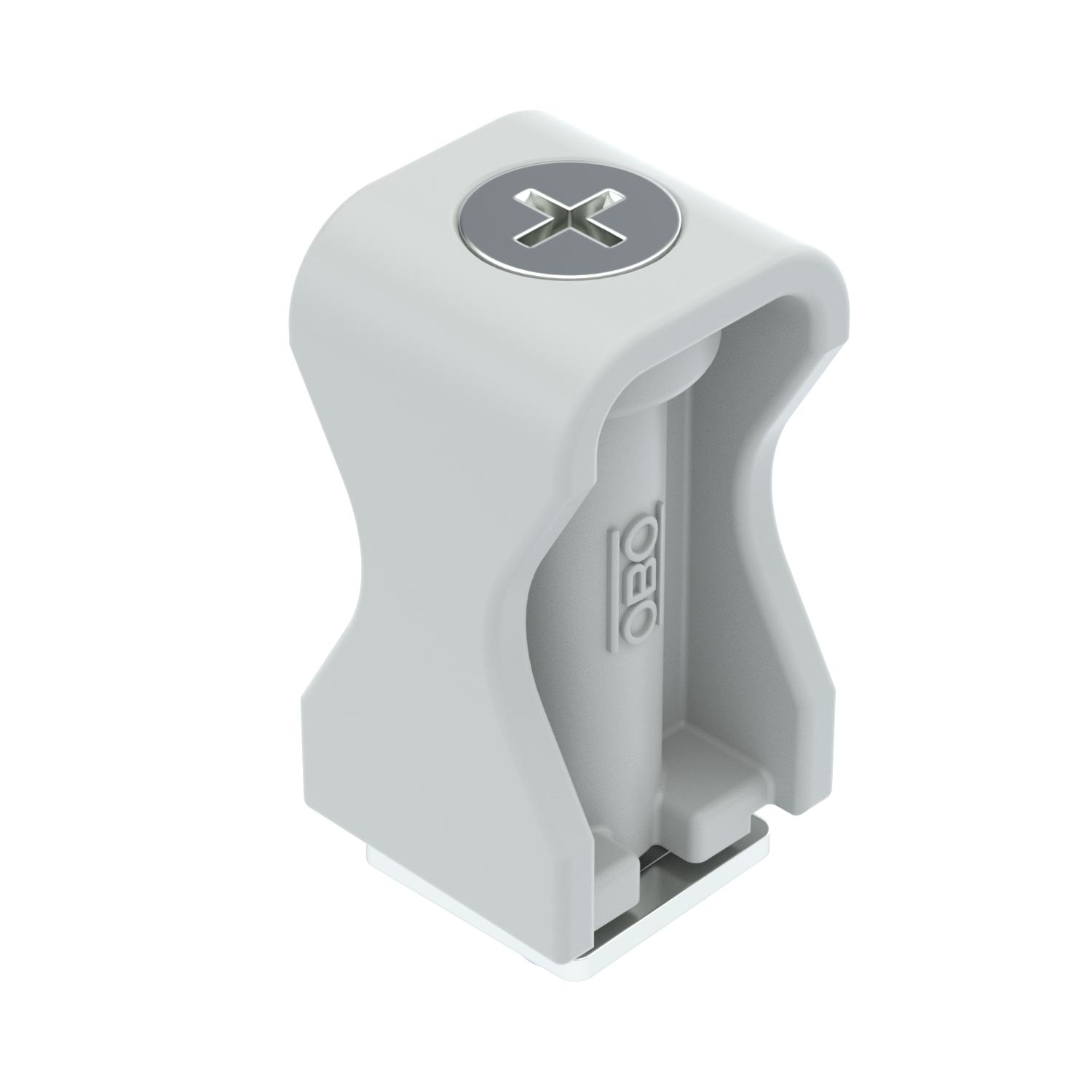

Heavyweight version, also suitable for rails of 16 ÷ 17 mm slot width; polyamide clip element, light grey RAL 7035; Metal parts: Electrogalvanised steel.

Technical data

Technical data

Bolt	M8 x 60
Clamping range D, max.	48 mm
Clamping range D, min.	14 mm
Colour	Light grey; RAL 7035

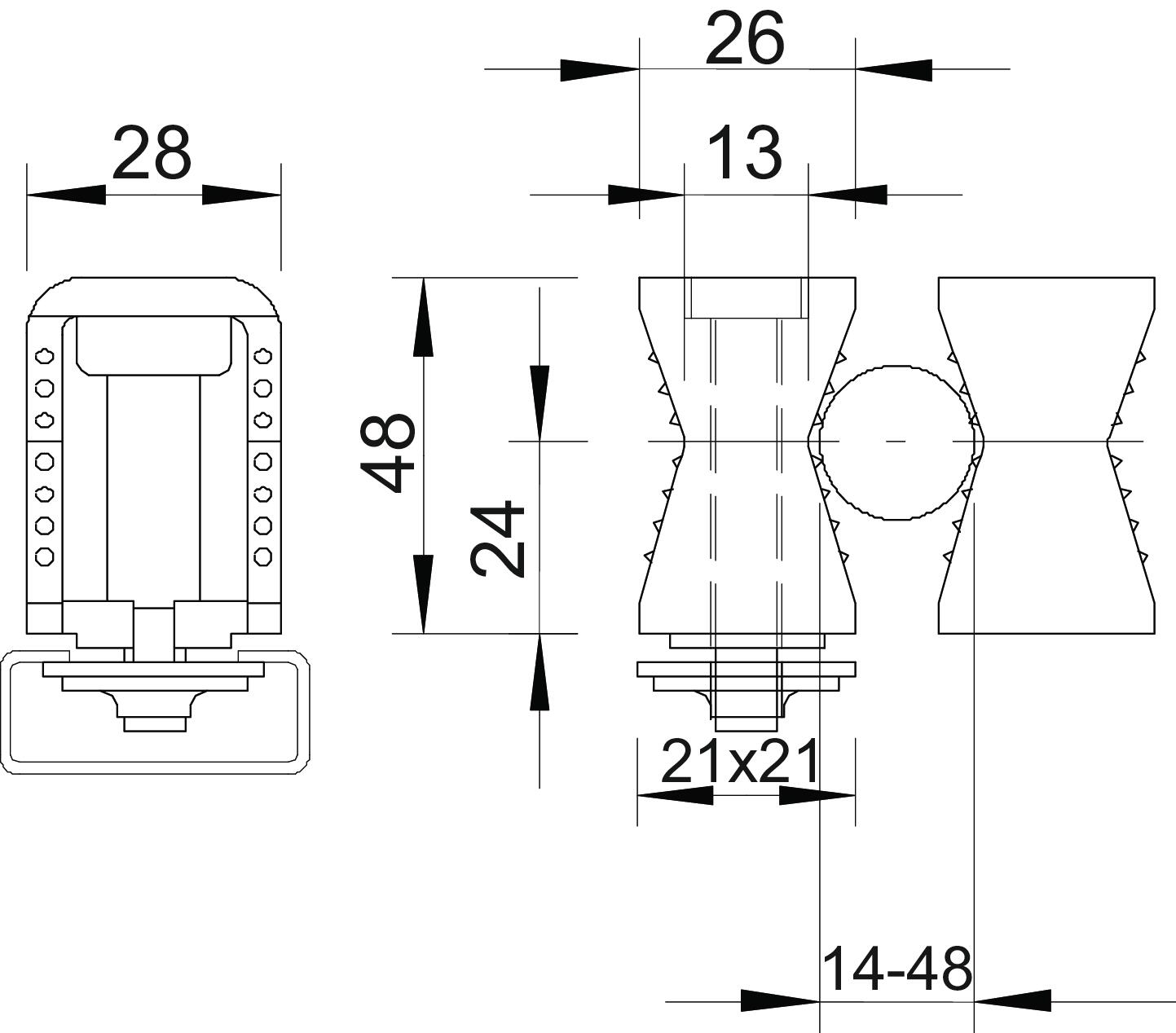

Dimension	14-48mm
Dimension B	26 mm
Dimension B1	14,5 mm
Dimension H	48 mm
Dimension H1	24 mm
Fastening type	Rail fastening

for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Impact-resistant	no
Material	Polyamide
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
UV-resistant	no
Version for	Two-lobe

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Bolt	Colour	Item no.	Quantity	SSU
2054 14-48 LGR	14 mm	48 mm	M8 x 60	Light grey; RAL 7035	2255014	piece	25 piece
2055 24-72 LGR	24 mm	72 mm	M8 x 80	Light grey; RAL 7035	2255022	piece	20 piece
2054 14-48 SW	14 mm	48 mm	M8 x 60	Graphite black; RAL 9011	2255502	piece	25 piece
