Series clip, light grey 5 | 25 | M4 x 30 | Light grey; RAL 7035

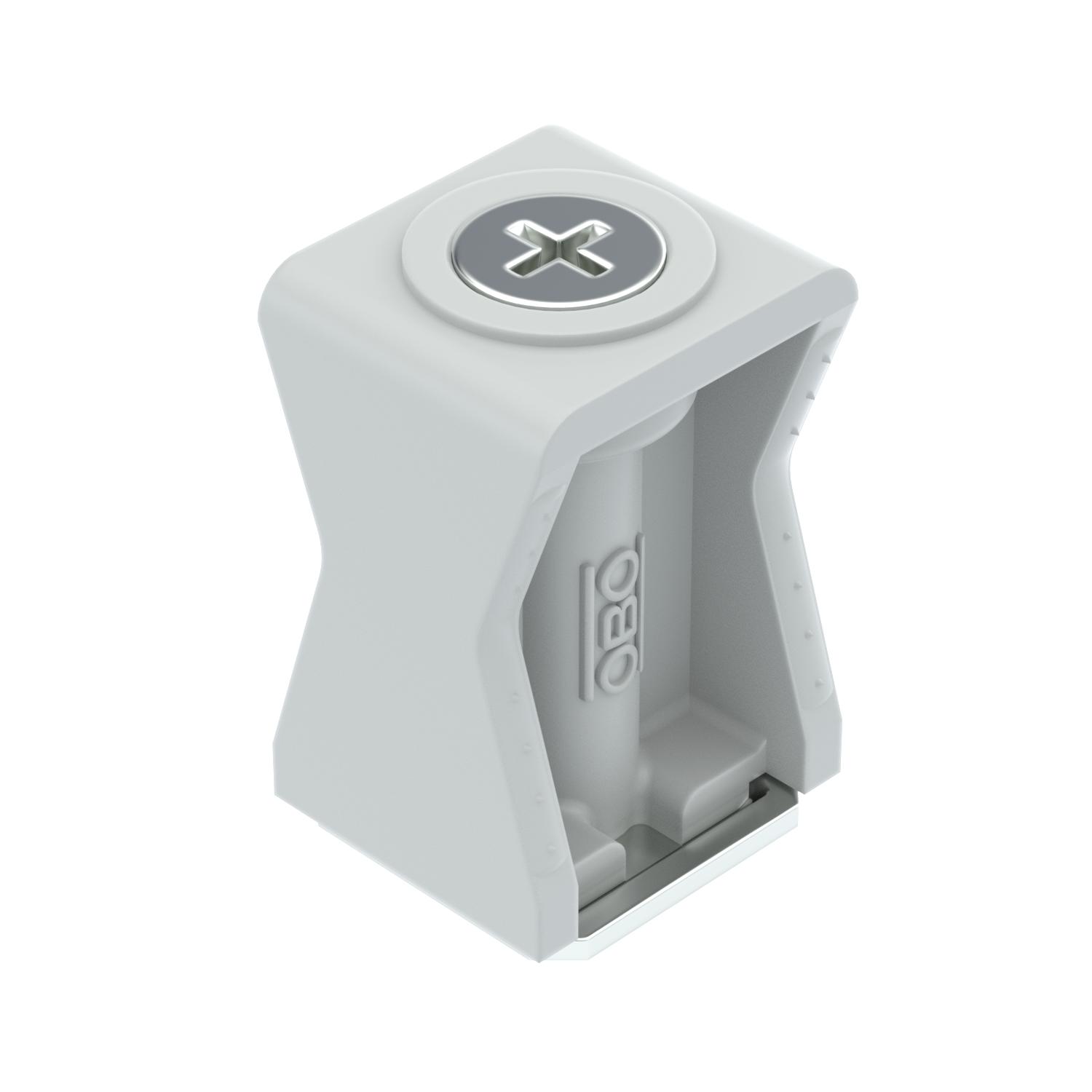

Series clip, light grey

Item no. 2254026 | EAN 4012195222132

Item no. / Types

Clamping range D, min.	5 mm

Clamping range D, max.	25 mm

Bolt	M4 x 30

Colour

Product description

Product description

Also suitable for rails of 11 ÷ 12 mm slot width; polystyrene clip element, impact resistant, halogen-free, light grey RAL 7035; metal parts: electrogalvanised steel.

Technical data

Technical data

Bolt	M4 x 30
Clamping range D, max.	25 mm
Clamping range D, min.	5 mm
Colour	Light grey; RAL 7035
Dimension	5-25mm

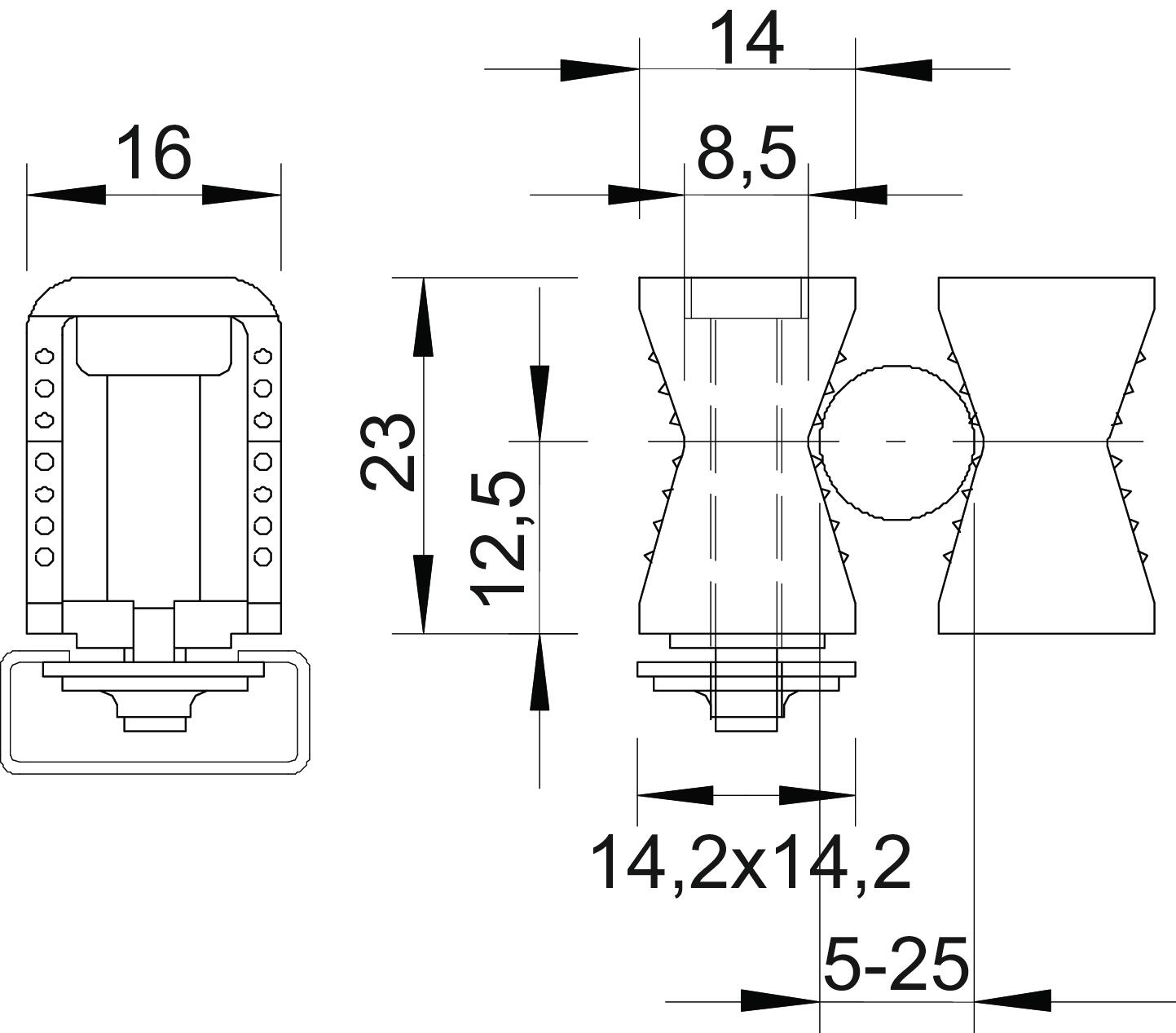

Dimension B	14 mm
Dimension B1	7,5 mm
Dimension H	24 mm
Dimension H1	12,5 mm
Distance to the wall	no
Fastening type	Rail fastening

for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes
Impact-resistant	no
Material	Polystyrene
Nominal diameter	25 mm
Number of cables/pipes	1
Plastic-covered	no
Suitable in fire protection area	no
UV-resistant	no
