Series pressure clip 2037 12 | 20 | Black

morepic-1

morepic-2

Series pressure clip 2037

Item no. 2250527 | EAN 4012195613879

Item no. / Types	2250527 / 2037 12-20 SW

Clamping range D, min.	12 mm

Clamping range D, max.	20 mm

Colour	Black

Product description

Product description

Universal clip for the single fastening of cables and pipes, all sizes can be seamlessly expanded among each other, with adhesive foot, slot and for screwing onto an M6 thread.
*Sizes 3–7 are not suitable for nail guns.

Technical data

Technical data

Clamping range D, max.	20 mm
Clamping range D, min.	12 mm
Colour	Black
Dimension	12-20mm
Dimension A	28 mm
Dimension d max.	20 mm
Dimension d min.	12 mm
Dimension F	14 mm
Dimension H1	8,5 mm

Dimension H2	26 mm
Dimension H3	34 mm
Expandable	yes
Fastening type	Screw hole
Halogen-free	yes
Impact-resistant	no
Material	Polyamide
Number of cables/pipes	1

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
2037 12-20 SW	12 mm	20 mm	Black	2250527	piece	50 piece

Downloads

Data sheet 2037 12-20 SW / 2250527 , 0.00MB , pdf

Catalogue Connection and fastening systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, connection and fastening systems , 2.10MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

Declaration of conformity 2037 12-20 SW / 2250527 , 0.47MB , pdf

Download

Product graphic 2037 12-20 SW / 2250527, 58.77 kB, jpg

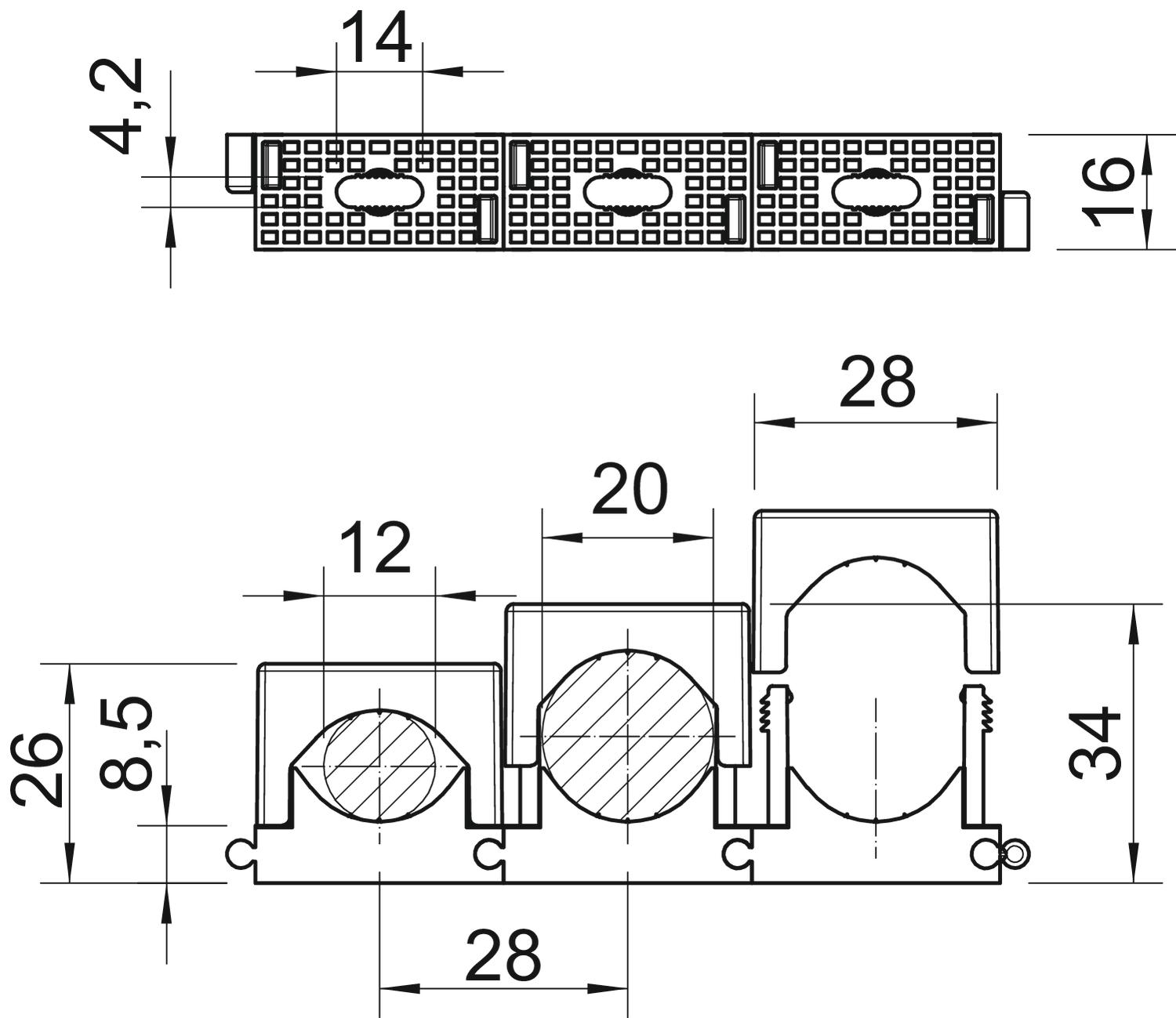

Scale drawing 2037 12-20 SW / 2250527, 132.65 kB, jpg

2037 12-20 SW / 2250527
